20W LED Street Light with Integrated Solar Panel System

• Light Source：LED Lamp
• Lamp Body Material：Aluminum Alloy
• Light Type：Solar
• Color Temperature：Pure White
• Power：16W-20W
• Illumination Time：8h

=== Base Info ===

• Model NO.：SNSTY-220
• Cell Type：Lithium Battery
• Charging Time (H)：7-8 Hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product/Packing Size：1150*330*140mm,1190*400*220mm
• Product/Packing Weight：16kg,17.8kg
• Carton Size：1190*400*220mm
• Qty/CTN：1 Sets,CTN
• Gw for Carton：17.80kg
• Loading Qty for 20gp：270PCS
• Loading Qty for 40gp：550PCS
• Transport Package：Strong Carton
• Specification：20W LED 45W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• Production Capacity：China

=== Description ===

Basic Info.

Model NO. SNSTY-220 Cell Type Lithium Battery Charging Time (H) 7-8 Hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product/Packing Size 1150*330*140mm/1190*400*220mm Product/Packing Weight 16kg/17.8kg Carton Size 1190*400*220mm Qty/CTN 1 Sets/CTN Gw for Carton 17.80kg Loading Qty for 20gp 270PCS Loading Qty for 40gp 550PCS Transport Package Strong Carton Specification 20W LED 45W Solar Panel Trademark SINOLTECH Origin China Production Capacity China

Product Description

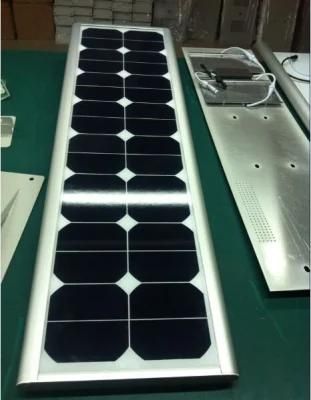

20W LED street light with integrated Solar Panel system

Our integrated solar street light which integrates the green-energy parts solar Panel, LED lamp and the Li-Fe battery into a single product, is with human Intelligence induction system to gain the solution of low-energy, long-time, High-luminance and free maintenance. And the same time, it's convenient in the Shipment and installation.
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.

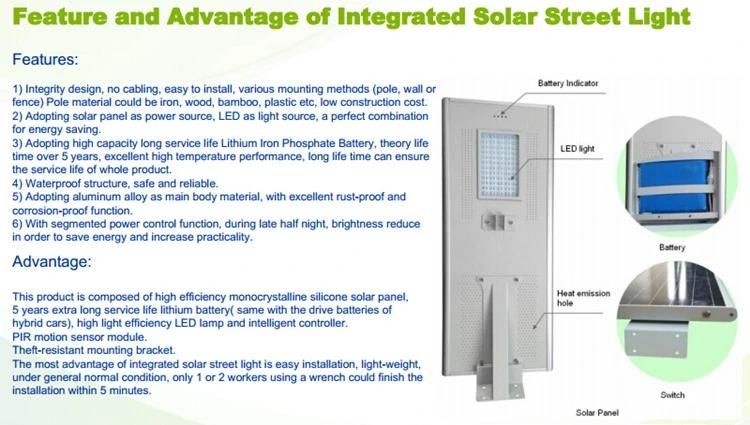

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via Controller, the LED light will work in night automatically by light sensor control, and Provide light for the darkness area, the human intelligence induction system can Save the energy when the lighting is not necessary

Specification for 20W LED street light with integrated Solar Panel system

Solar Panel	Max Power	18V45W Sunpower solar panel
	Life time	25 years
Battery	Type	Lithium battery 21AH
	Life time	5 years
LED Lamp	Max power	12V 20W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	2100-2200LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	7 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 12 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	5-6m
Space between light	range(m)	18-20m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		2 years
