CNC Profiling Wheel T Shape Router Bit

CHANGZHOU KYA FASTENERS CO., LTD. / 2022-06-09

CNC Profiling Wheel T Shape Router Bit

  • Used to:Profile Granite, Marble and Engineerd Stone
  • Connection Type:22mm, 35mm for CNC Machine
  • Shape Type:T Shape
  • Thickness:20mm, 30mm, 40mm
  • Kind:Diamond Wheel
  • Manufacturing Arts:Sinter

=== Base Info ===

  • Model NO.:T30
  • Saw Blade External Diameter:60mm
  • Transport Package:Carton Box for Each Piece or Customers Requirement
  • Specification:ISO9001-2000; SGS
  • Trademark:Router Bit
  • Origin:China
  • HS Code:6804210000
  • Production Capacity:5000 PCS,Month

=== Description ===

Basic Info.

Model NO. T30 Saw Blade External Diameter 60mm Transport Package Carton Box for Each Piece or Customers Requirement Specification ISO9001-2000; SGS Trademark Router Bit Origin China HS Code 6804210000 Production Capacity 5000 PCS/Month

Product Description

CNC Profiling wheels are equipped on CNC stone processing machine, the excellent leader in irregular shape stone processing tools. Thanks to it precised profiling, high efficiency, it is widely used in the edge processing of vanity top and counter-top, etc.
We have developed the outstanding sets of profiling wheel for the CNC machine to profile granite, marble and engineered stone.
CNC Profiling Wheel T Shape Router Bit
CNC Profiling Wheel T Shape Router Bit
CNC Profiling Wheel T Shape Router Bit
CNC Profiling Wheel T Shape Router Bit




Available for working on 22mm&35mm CNC machine.

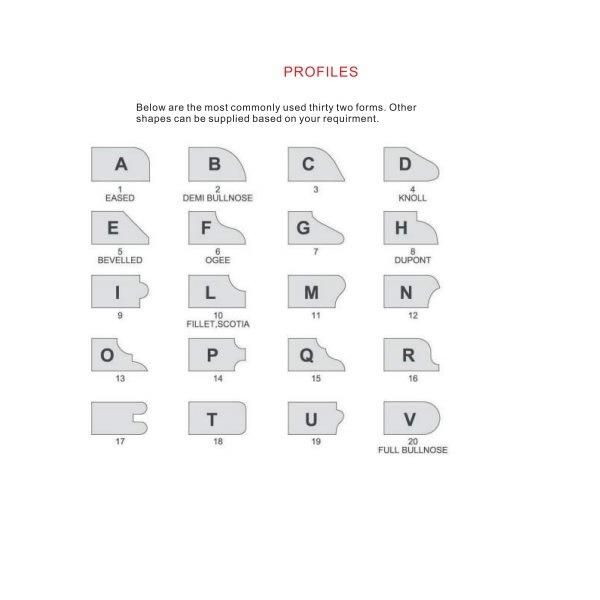

Different profiles, different shapes like A, B, E, F, H, T, V etc are available.
PositionType of Working LayerGritWorking ProcedureRPM
g/min
Feed Speed (mm/min)Removal
mm
Pos.0Meter sintered,Segmented30/40Chamforing4500500-600shape
Pos.1Meter sintered,Segmented30/40Shaping4500500-600shape
Pos.2ABR hot pressed,Continous70/80Coarse finishing4500-46001000-14000.3+/-0.05
Pos.3ABR hot pressed,Continous140/170Medium finishing4500-46001000-14000.2+/-0.05
Pos.4ABR hot pressed,Continous230/270Finishing1200-1500600-8000.1+/-0.05
Pos.5ABR hot pressed,Continous400Good finishing1200-1500600-8000.05+/-0.025
Pos.6ABR hot pressed,Continous800Polishing1200-1500600-8000.05+/-0.025
Pos.7ABR hot pressed,Continous1500Polishing and buff1200-1500600-8000.05+/-0.025
Pos.8ABR hot pressed,Continous3000Polishing and buff1200-1500600-8000.05+/-0.025
