P5 Indoor LED Screen for Advertisement

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：5mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：40,000 dots , m²
• Scanning Mode：1,16 Scan

=== Base Info ===

• Model NO.：P5 indoor led screen
• System Operating Platform：WIN2000
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC
• Module Size：320*160
• Cabinet Size：640*640
• Cabinet Material：Aluminum
• Best Viewing Distance：5-20 M
• Packing Manner：Wooden Case,Flight Case
• The Way of Installation：Rental
• Warranty：Two Years
• Cabinet Weight：6 Kg
• Transport Package：Wooden Case or Flight Case
• Specification：CE ROHS CCC
• Trademark：Noveled
• Origin：Shenzhen China
• HS Code：85312000
• Production Capacity：3000 PCS,Week

=== Description ===
Pixel Pitch:5mmPixel Dentisy: 40000 dots/M2Module Size:320mm*160mmLED Types:SMD3528(black body, white body)Module Resolution:32*32 dotsCabinet Size:640mm*640mm*80mmCabinet Materials:Die-casting aluminumCabinet Resolution:128*128 dotsBrightness:>1500cd/M2Driving Method:1/16 SViewing Angle:Horizontal 140 Degree, vertical 120 degreeGrey Level:65536Refresh Rate:600-4800HzContrast Ratio:  white body:2000:1; black body: 4000:1Input Voltage:110V/220V AC+-5%Max Power Consumption:750W/M2Cabinet Weight:  Aluminum:8KGApplication:    IndoorIP Grade: IP43Working Temperature: -30ºC~+55ºCLED Lifespan:100 000Hrs
 Features

  1.Small-pitch series obtain high contrast and high gray scale, It can realize the HD and exquisite image.
  2.Super thin and light weight (thickness :75mm  weight :7kg), easy to install and transport.
  3.Aluminum die-casting cabinet, automatic  heat dissipation, and low power  consumption.
  4.Seamless connection with high flatness and soft image .
  5.Support point correction function, ensure the color and brightness consistency.
  6.High RGB gray scan processing, colorful, vivid and clear viewing effect.
  7.High stability and reliability with integrated circuit .
  8.Accurate and fast installation with buckled cabinet design, which can be used in different application.
  9.One case with multi-purpose, product upgrading only need to change the module , low upgrade cost.
  10.Buckle cabinet design makes it fast installation and dismantle, both for  fixed installation and rental using.
 11.Professional and standard air plug with high quality guarantee.

Application:

Indoor stage, TV studio, concert, theme park and exhibition where need quick installation and HD video.

Export Markets:South America,North America,Africa,Oceania,Mid East,Western Europe,Southeast Asia,Eastern Asia etc.

After Sale service

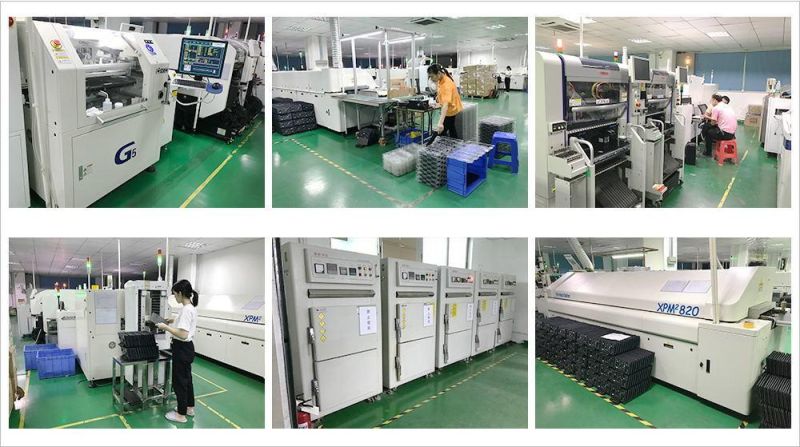

Aging screen in the factory


Flexible led display
Cube led display

Poster led display
Cylinder led display




Guarantee
.1   Guarantee the products provided to the buyer are brand new, unbroken and unused.

1.2 For supports of the contract equipment operation and maintenance, guarantee the technical data provided to the buyer are unbroken, clear and correct

2. Operating training

Provide detailed product manual, system operating and maintenance manual according to the contract list and will give the user the following training: systems operating, system and equipment maintenance

3. Repairing warranty

Repairing tenet: timely response, solve as soon as possible, ensure the using

4. Warranty period

Free for all maintenance service within the two years' warranty, only need material cost+freight if beyond the warranty time and free for labor fee.
