P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：8mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：200W,M2

=== Base Info ===

• Model NO.：P8mm
• Pixel Density：15625 Dots,Sqm
• Scanning Mode：1,4scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Refresh Rate：1920~3840Hz
• Brightness：6500nits
• Screen Resolution：14400dots
• Cabinet Size：960*960mm
• Ave Power Consumption：200W,M2
• Max Power Consumption：600W,M2
• Transport Package：Plywooden Case
• Specification：320*160mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

=== Description ===

Basic Info.

Model NO. P8mm Pixel Density 15625 Dots/Sqm Scanning Mode 1/4scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Refresh Rate 1920~3840Hz Brightness 6500nits Screen Resolution 14400dots Cabinet Size 960*960mm Ave Power Consumption 200W/M2 Max Power Consumption 600W/M2 Transport Package Plywooden Case Specification 320*160mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:
1.High waterproof grade design:IP65

2.High brightness up to 6500CD/m2 to achieve good effects

3.960*960mm standard cabinet size for short delivery time, the size also can be customized


PRODUCT PARAMATERS:


NO.	Parameters	Specifications
1	Model	P8
2	Pixel Pitch(mm)	8
3	LED	SMD3535
4	Screen Resolution	15625dots/sqm
5	Scan Method	1/4
6	Module size(mm)	320x160
7	Cabinet size(L*H*W mm)	960x960x150
8	Cabinet(Kg)	36
9	Viewing angle	H:140°/  V:140°
10	Grey Scale	14bit
11	Refresh rate(HZ)	1920~3840HZ
12	Brightness(nits)	≥6500
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/m2)	200
15	MAX. power consumption(W/m2)	600
16	IP grade	F:IP65 / R:IP54
17	Working humidity	10~95%RH
18	Storage humidity	10~95%RH
19	Working temperature	-30ºC~60ºC
20	certificates	CCC,FCC,CE,RoHS.ETL

PRODUCT PHOTOS:




ACCESSORY:

CAD DRAWINGS:

CASES:

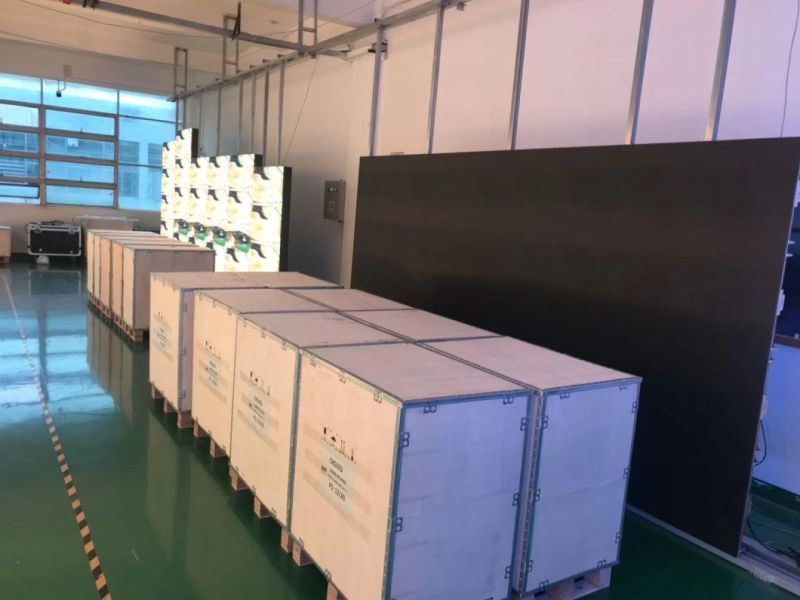

WORKSHOP:



PACKAGE:



CULTURE:


CERTIFICATES:



OUR SERVICE:
1. Your inquiry will be replied in 24 hours

2. Full solution will be customized according to your requirement

3.Two years after-sales warranty, free repair service during the quality warranty period

HOW TO GET A FULL QUOTATION?
Send the message of pixel pitch,specific size and installation information to us. Full solution will be glad to provide.
