15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens

Qingdao Haochen Packing Co., Ltd. / 2022-06-27

15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens

  • Certification:UL, RoHS, CE, Bis
  • Power:15W,PC
  • Emitting Color:White
  • Voltage:24V DC
  • IP Rating:IP20
  • Specification:0.5M,pc

=== Base Info ===

  • Model NO.:L012Gx24B
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:500, 000PC,Month

=== Description ===

Basic Info.

Model NO. L012Gx24B Origin China HS Code 9405409000 Production Capacity 500, 000PC/Month

Product Description

15W 24VDC Edge lighting 2835 LED rigid light bar with lens

Application
- Edge lighting for double side and single side light box.
- Best for 100mm to 300mm depth (4inch to 12inch).

Main features
- 24V DC
- 1650 lm
- 15 W
- Excellent lens design can achieve better uniformity performance (no hotspot, no color issue) in edge-lighting application.
- Easy installation in application (connector).
- Conformal coating design can block moisture in application.
- Halogen free version can meet the standard in station light box.

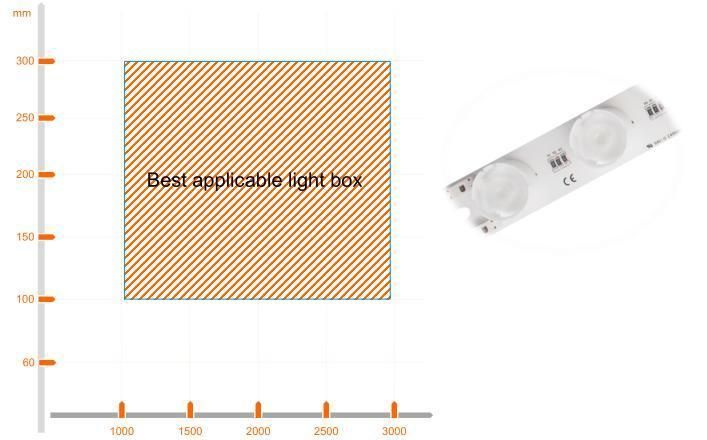

Best applicable light box
15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens

Optics Technology

15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with LensApplication recommendation (double side light box)

15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens

Main Parameters
15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens

15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens

Light distribution
15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens
Product wiring diagram

15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens


Package

15W 24VDC Edge Lighting 2835 LED Rigid Light Bar with Lens


Instructions

- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.
- Installation by qualified electrician only.
- Parallel connection is mandatory for safe electrical operation. Serial connection of LED modules is discouraged. Unbalanced
voltage drop in serial connection can cause hazardous overload
- Electrical contact is achieved with the contact cables or the terminals of the module. Please refer to the technical data for
maximum number of LED modules that can be operated on one control gear.
- To avoid mechanical damage, the LED modules have to be attached securely to the intended mounting surface. It is
recommended to avoid heavy vibration.
- LED modules are dimmable by means of PWM (pulse width modulation).
