Mechanical Parking Car Storage Lifts for Stacking Car Park Systems Customized

• Type：Four Cylinder Hydraulic Lift
• Lifting Capacity：3T
• Driving Type：Hydraulic
• Certification：CE, GS
• Driving Motor Number of Mechanical Lift：2
• Double Cylinder Lift Type：Thin Plate Type

=== Base Info ===

• Model NO.：SJG3-3
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Sdlift
• Design：Scissor
• Application：Portable Hydraulic Scissor Car Lift for Garage
• Warranty：24 Months
• Material：High Strength Mn Steel
• Motor：Customer Required Brand or Chinese Famous Brand
• Lift Mechanism：Hydraulic Cylinders
• Power Supply：220V,240V,380V,415V
• Control：Control Box and Remote Controller
• Transport Package：Iron Case or Nude
• Trademark：SDLIFT
• Origin：Shandong China
• HS Code：84289090
• Production Capacity：5000 Set Per Year

=== Description ===

 The hydraulic scissor car lift can be customized as your detailed size.

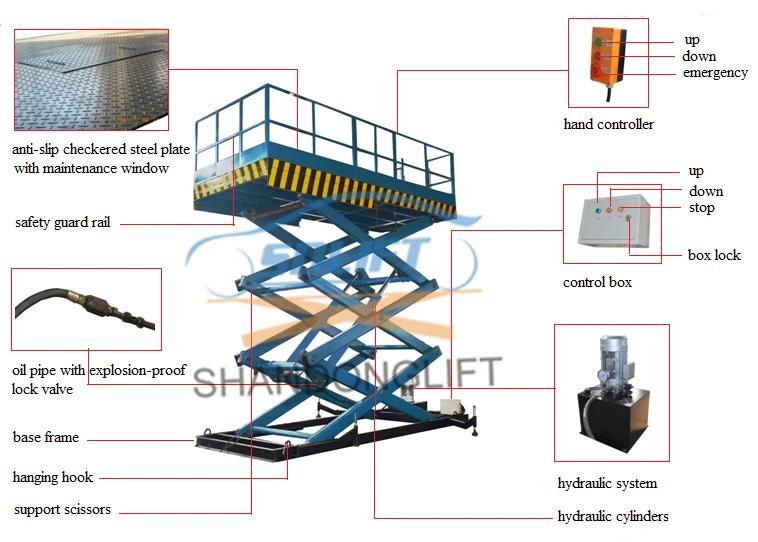

Parts showing:

Configuration:

1) Platform Material: rectangular tube + checkered iron

2) Scissor material: high strength Manganese Steel.

3) Hydraulic system: 380V/3.0Kw

4) High Precision Hydraulic Cylinder

5) Piston Rod: hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the cars above the platform.

3) The limit switch system helps hydraulic scissor car lift to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.

The workshops:

The customers visiting:

The Certificates:

Our services:

1) We can design the customerized hydraulic scissor car lift as per your requirement.

2) The most suitable hydraulic scissor car lift will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 years warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
