Super Bright P5 LED Billboard for Outdoor Video Advertising

• Tube Chip Color：Full Color
• IP Rating：IP67
• Pixel Pitch：5mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display
• Average Power Consumption：300W , m²

=== Base Info ===

• Model NO.：P5
• Pixel Density：40000 Dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL, Ctick, Bis,
• Cabinet Size：960X960X160mm
• Controlling：WiFi Wireless Controlling
• Warranty：3 Years Warranty
• Transport Package：Plywood Case
• Specification：SMD LEDs
• Trademark：Hangel
• Origin：China
• HS Code：8531200000
• Production Capacity：100000 PC,Month

=== Description ===

Basic Info.

Model NO. P5 Pixel Density 40000 Dots/Sqm Scanning Mode 1/8 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL, Ctick, Bis, Cabinet Size 960X960X160mm Controlling WiFi Wireless Controlling Warranty 3 Years Warranty Transport Package Plywood Case Specification SMD LEDs Trademark Hangel Origin China HS Code 8531200000 Production Capacity 100000 PC/Month

Product Description

Super Bright P5 LED Billboard for Outdoor Video Advertising

High Brightness & Stable Performance


Outdoor advertising LED display screen, the brightness is around 5500 nits to 6500 nits for lite version. And the brightness is better for classic version & diamond version.

With mature technology and high-end components, the advertising LED screen can work 7x24 hours, and keep stable performance!

IP67 Waterproof & Weatherproof with Strong Body

The cabinet housing is specially designed for excellent waterproof IP67. And the steel body is strong & firm enough for kinds of weather challenge.

Easy Controlling System to Meet Different Advertising Requirements

LAN cable connection for controlling, USB drive to update, WIFI/4G wireless controlling, group controlling, etc. are all available.

Communication protocol is available for the 2nd development to dock with the existing sytem.

Wide compatibility, no limitation on platform. Window, IOS, Android, Mac OS are all supported.

Pillar / Pole Installed Advertising LED Display


Wall Mounted Advertising LED Display

Excellent Stability for 7x24 Hours Working

Wide Viewing Angle with SMD LEDs

Wide viewing angle, horizontal & vertical 140 degree, brings the ads to more passengers in a larger scale!




Customized Concave, Convex, Corner Installation All Available


Certifications


Specifications


Model No.	P5
Product No.	HTF-OD5-960S
Pixel Pitch	5mm
Application	Outdoor Advertising
Pixel Density	40,000 pixels/sqm
Pixel Configuration	SMD, RGB 3 in 1
Module Dimension	320 x 160mm
Module Resolution	64x32 pixels

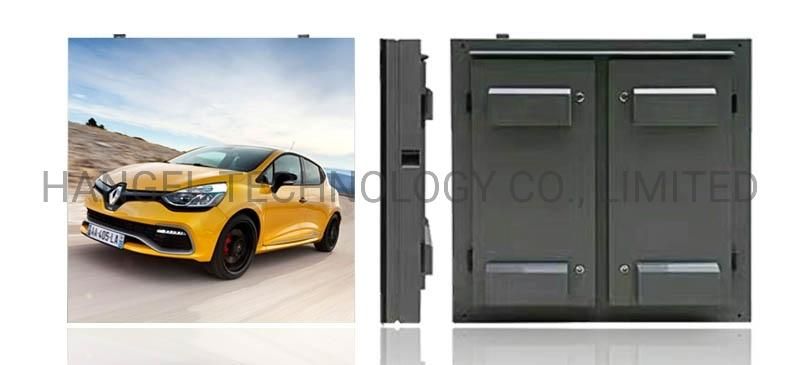

Cabinet Dimension	960 x 960 x 160mm
Cabinet Resolution	192 x192 pixels
Cabinet Material	standard steel cabinet housing, wateproof & weather proof
Cabinet Weight	55KG/pc
Scan	1/8 Scan, constant current driving
Input Voltage (AC)	AC 110V / 220V
Summit Power	850 Watt/sqm
Average Power	280 Watt/sqm
Brightness (nits)	5000 ~ 6500 nits (cd/sqm)
Refresh Rate (HZ)	1920HZ
Grey Scale (bit)	16bit (65536)
Viewing Angle (H/V)	140/140
IP Rating	IP67, waterproof
Working Temp. / Humidity	-30 Celsius ~ 50 Celsius; 10% ~ 90%
MTBF	> 5000 Hours
Lifetime	100,000 hours
