- Type:Spray Booth
- Brand:AA4c
- Coating:Powder Coating
- Airflow Direction:Cross-flow Type
- Heating Mode:Diesel
- Condition:New
=== Base Info ===
- Model NO.:AA-SB601
- Color:Blue
- Voltage:380V, 50Hz, 3pH
- Specification:CE
- Trademark:AA4C
- Origin:China
=== Description ===
Basic Info.
Model NO.
AA-SB601
Color
Blue
Voltage
380V, 50Hz, 3pH
Specification
CE
Trademark
AA4C
Origin
China
Product Description

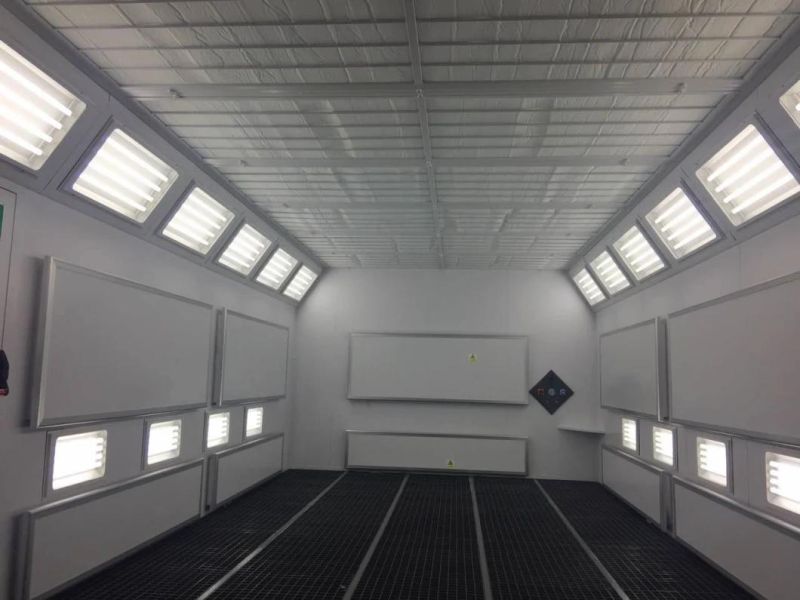

AA4C Spray booth with Endoththothermic Outside Size(mm): 7000× 5550× 3450mm
Inside Size(mm): 6900*4000*2650MM
Front Door(mm): 3000× 2700mm(W× H);
Service Door(mm) 800× 2000mm(W× H);
Total Power: 10KW
Wallboard 50mm thick flame-resistant and heat-preserving EPS board; 0.376 thick colored steel. Roof panel: Galvanized sheet;
Basement: Steel structure base; Two line grilles, three diamond plates; Inside ramps; Height is 280mm;
Model: Turbo fans Exhausted Turbo fan Optional Blower Capacity: 15000m3/h
Pressure: 800Pa
Rolling Speed: 900rpm
Power: 5.5kw
Purification System Pre-filter, high efficiency filter (ceiling filter), floor filter Heating System
Heating System stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; Oil consumption 4~6L/set; The heating time is 5~7 minutes;
Lighting System c≥ 700Lux; Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W; Glass: All glass is clear tempered glass
Controlling System Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
1.AA4C have full range of garage equipments. You can buy most items in AA4C related to garage equipments to save your energy to purchase everywhere. 2.AA4C main products :1)car lifts(1 post ,2 post ,4 post,scissor lift,etc)2)tire changer(car tire changer,truck tire changer,semi-automatic,full-automatic)3)wheel balancer(car wheel balancer,truckwheel balancer,semi-automatic,full-automatic)4)Wheel alignment(commercial ccd Wheel alignment,commercial zigbee wheel alignment,3D wheel alignment, truck wheel alignment)5)Our featured product rim straightening machine is the most popular in a lot of countries.Other products such as spraybooth,cleaning machine,brake lathe,tire vulcanzier,Nitrogen inflator,A/C handling machine,fuel injector cleaning machine,welding machine,hydraulic tools,etc...... Pls visit our website aa4cautomotive.en.made-in-china.com for more items!3.Easy way to submit the order ! You can submit the order list in our website aa4cautomotive.en.made-in-china.com ,after we get the list ,we will issue the PI to you to save your time!4.AA4C quality management: To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.5. AA4C services:To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.6.AA4C products warranty:We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems.Our service1. 1% of order amount free parts for replacement. 2. 1 year warranty since conatiner arrive port of destination . 3. 2 post lifts, alignment lifts, parking lifts, mid-rise lifts, scissor lifts, and high-rise lifts are warranted for five (5) years on structural components and one (1) year on electric or air / hydraulic power units and cylinders effective since date of arrive port of destination.4. Any parts which broken for quality reason will be replaced via courier within 1 week.If any question you can find 24 hours 365 days at:Mob: +8618017229377 FAQ 1. Why should I choose AA4C car lift?There are several reasons you should strongly consider purchasing AA4C Lift:Top raw materials from only the finest plants
Only professional cost-effective equipment
Low prices with high quality revenue producing products
Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
The best customer service. Quick reply within 24 hours and more.
Great Warranty 2. How safe are your 2 post car lift?Our 2&4 post lifts have been tested and CE certified for safety . They also meet the American
and Australian Standard. 3. Should I keep repair and replacement parts in stock?Yes, most all commonly required repair and replacement parts should always keep in stock. 4. What type of fluid is required for my 2 post car lift?We recommend use of a SAE10 hydraulic fluid that meets an ISO 32 specification, approximately 3 gallons / 12L are required. 5. Are AA4C car lift designed for commercial use?All of our lifts can be used in commercial applications without any problems. 6. Do you offer any custom designs?Yes,AA4C provide OEM/ODM services to top range partners.Produce a superior product for you by your designs.
