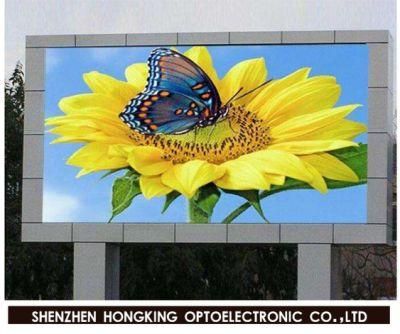

P4 P5 P6 P8 P10 Indoor Outdoor Advertising LED Screen, Full Color Video Wall, LED Display

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：6mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：220W , m²

=== Base Info ===

• Model NO.：Outdoor LED Display P6-8S (smd)
• Pixel Density：27778dots,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Product Name：Outdoor LED Display P6-8s
• Driver IC：Mbi5124
• Bightness CD/Sqm：6500CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500-9500k
• Warranty：3 Years
• Transport Package：The Factory Packaging
• Specification：192*192mm
• Trademark：hongking
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

=== Description ===
Technical  SpecificationsNOProduct nameoutdoor P6 led display1Pixel Pitch(mm)6mm2Pixel configuration1R1G1B/ smd35353Pixel density27778dots/m24Brightness 6500cd/m25Module size(W*H)192*192mm6Module Resolution (W*H)32 dots x 32dots7Module weight450g8Cabinet size (W*H)576mm×576mm9Drive ICMBI 512410Drive mode1/8 scan11Viewing Angle(V/H)140ºC12Grey Scale65536 degree13Life time>100,000 Hours (50%)14MTBF>50,000 Hours15Operating VoltageAC110V/220V±10%17Screen Power ConsumptionMax: 680w/m2; Average:220w/m218Input Power Frequency50/60Hz19Operating temperature -30--60ºC20Humidity10%-95%21Refresh Rate≥1200HZ22Control MethodSynchronized with computer monitor23Color Temperature6500K-9500K24LED control systemLINSN,Nova-star,Colorlight is selectable25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI27Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10Product Application Cases:

This series Model for your choice :

Indoor model (Not waterproof) : P1.923,P2.5,P2.6, P2.84, P2.97, P3.91 (best selling), P4.81(Hot ), P5.68, P5.95,P6,P6.25

Outdoor model: P3.91 (highest resolution), P4.81 (best selling) , P5.95 (hot) , P6.25 (cost effective),P8,P10
( Outdoor model is totally waterproof LED so can be used for both indoor and outdoor events ! )

LED Control System: Novastar / Linsn /  Onbon / TF / HD Card etc
LED Power Supply: Meanwell / YHY / G-Energy
LED Chips: Cree / Nichia / Epistar / Opto / Silan etc
Drive IC: MBI5024 / MBI5026 / MBI5027 / MBI5030 / MBI5031 / MBI5035 / MBI5040 / MBI5041 / MBI5042 / MBI5050 / MBI5153 etc


Why choose  HONGKING?

    HONGKING is a professional manufacturer of LED display screens over 10 years. We have strong R&D to ensure high end products with user-friendly design .
    The prices are very competitive due to our large-scale procurement of raw material.   We can help you to win more orders if you are distributors.End users will also be satisfied with our quality and price.
    We have CE, FCC and Rohs certificates. Our products are exported over 85 countries .We have rich experience in handling all possible problems when you import goods from China .
    We have a wide variety of products for you to choose from .All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
    Our sales are well trained to offer professional advice on your specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
    We offer 2-3 years warranty and life time maintenance .Even when warranty time expires , we only charge material costs.
