Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System

Hangzhou Mig Packaging Co., Ltd. / 2022-06-23

Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System

  • After-sales Service:24 Hours After Service
  • Warranty:2 Years
  • Type:Spray Booth
  • Certification:CE
  • Substrate:Steel
  • Brand:Infitech

=== Base Info ===

  • Model NO.:IT-701
  • Coating:Powder Coating
  • Airflow Direction:Fully Undershot-type
  • Heating Mode:Infrared Ray
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Empty Loaded Air Speed:+,-0.28m,S
  • Voltage:380V, Your Special Voltage Is Accepted.
  • Fan Capacity:28000m3,H
  • Transport Package:Polyfoam and Metal Frame
  • Specification:7000MM X 4000MM X 2800MM (LXWXH)
  • Trademark:INFITECH
  • Origin:China
  • HS Code:8419899090
  • Production Capacity:300 Sets Per Year

=== Description ===
STANDARD DESIGNBS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009BOOTH DIMENSIONS Internal dimensions7000 X 4000 X 2800mm (L X WX H)External dimensions7110 X 5560 X 3810mm (L X W X H)BASEMENT Base designGalvanized sheet bending forming, full grids
Basement(H): 350mm and can be adjustableCarrying capacity of the grids650 kg/wheelFilter area28m2Drive-in-rampsoptionalGrid descriptionSize: 997X756mm, 40X3mm, pressed steel grating grille instead of traditional twisted steel for the rail steel grating. Aesthetics, durability, stress resistance are the most important features of such steel grating.CABIN Cabin structureVertical wall insertPlenum height600mmWALL PANEL Wall panel50mm wall panel, wallboard filler material: heat-resistant rock wool panelTop panel50mm wall panel, wallboard filler material: heat-resistant rock wool panelEdge material1.2mm galvanized steel plate bending formingENTRANCE DOOR FormManual door, 2 + 1 structureSize3200 X 2700mm (W X H)Arrangement and quantity1 setDoor descriptionContaining frame, with safety glass observation windowPERSONNEL DOOR FormFrame structureSize800 X 2000 mm (W×H)Quantity1 setDoor descriptionWith safety glass observation windowCEILING LIGHTING(LED lamp)Quantity and power10 sets of light fixtures, each 6 X 18W, 1080W totalLighting arrangementOn both sidesLighting descriptionProtection grade IP55Brightness> 900LuxFILTRATION SYSTEM Pre-filterEU3 grade pre-filter pocket filterCeiling filterF5 class filter cotton, Model SP-600GBottom paint mist-collectionFiberglass paint-resistance filtersExhaust filterSimple activated carbon filter mat, M typeINLET SYSTEM Inlet fanDirect-type turbine fanPower and motor description7.5KW, 970rpm, 380V, 50Hz, SIEMENSParameter of inlet fan28,000m3/h, 650paEXHAUST SYSTEM Exhaust fanDirect-type turbine fanPower and motor description7.5KW, 970rpm, 380V, 50Hz, SIEMENSParameter of exhaust fan28,000m3/h, 650paEmpty loaded air speed+/- 0.28m/sNOISE<78dbINFRARED RAY HEATING SYSTEM Drying formInfrared rayPower10 units,3X1kW/unit,total 30kWArrangement2 x 4 sets on both sides, 2 sets at the rear wallPIPELINE CONFIGURATION Straight4 pieces90°elbow1 piece45°elbow1 pieceRain hat1 pieceReducer2 piecesMANUAL DAMPER1 pieceELECTRIC DAMPER1 pieceCONTROL SYSTEM Implementation standardsStandard Y/Δ step-down start control systemPLC programmable logic controllerPLC control, higher reliability, lower failure ratePressure detectionPressure gauge indicates pressure inside the booth.FeaturesPainting, levelling, baking, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protectionSPECIAL ITEMRated power:18KW
Detailed information

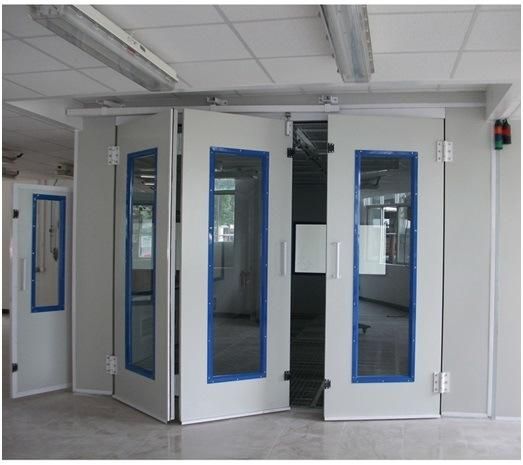

  • Entrance door
The entrance door adopts 2+1 structure, 0.6mm white color steel plate, configuring anti-sagging means, observation windows with armoured glass.
Door size: 3200X2700(BXH)   observation window size: 1995X500(BXH)
Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System
  • Cabin structure
Our spray booth has the most stable structure to ensure smooth airflow. The secret of balanced and stable flow owes to the 600mm height plenum. Wide space allows for less static pressure and even air distribution from the plenum to the cabin.
After the air flow goes through the heat exchanger rapidly, it will then pass through the diffuser, which provides important assistance to form the balanced and stable air distribution in the plenum.
The balanced airflow formed around the vehicle is achieved by the 350mm height basement. There is reasonable and effective diversion device for the basement, which helps to balance the airflow from end to end.
Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System


  • Rock Wool Board
-  Wall plates: Double insulation board filled with 80KG/m³ rock wool, total thickness: 50mm, substrate thickness: 0.426mm
- Top plates: Double insulation board filled with 80KG/m³ rock wool, total thickness: 50mm, substrate thickness: 0.426mm

The panels are made of double galvanized steel plate with complementary treatment of five coats of paint (polyester, acrylic and silicone polyester heat-hardened with plastic film for added protection) on each side.

  • Lighting system
- Light shines at work-piece vertically, creating shadow-free space, minimizing the movement of work-piece.
- IP55 protection grade, light fixtures fully meet EU standards.


Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System
  • Basement
- Assembly structure, with adjustable support foot which fits less than 30mm height ground unevenness
- Plug-in type grid structure, full grids, safe and reliable
- Fiber-glass paint-stop filter (laid under the grids), G2 grade, paint holding capacity: 3.5KG/m2

  • Airflow system
    - Non-spark fan design perfectly conforms to EN13355-2004 requirements for fans.
    - Motor and fan are completely separated, which is compulsory requirement for fans in EN13355-2004.
    - Adopting cylinder-drive paint-bake conversion damper, more quickly and accurately.
    Inlet / Exhaust motorInlet / Exhaust fanAir volumeDrying system7.5KW SIEMENSIT750 backward centrifugal fan, direct linkage28,000m³/hIR heating system 30KWPaint Booth Paint Spray Booth Paint Oven with Infrared Heating System
    • Filtration system
    ItemSpecificationInlet filterPocket filterMicro-dust filterHigh efficiency SP-600GFloor filterFiberglass filterExhaust filterActivated carbon filter mat, M type
    • Control system
    Functions:- Painting
    - Warm painting
    - Baking
    - Lighting
    - Emergency stop switch
    - Failure stop switch
    - Failure indication
    - Dual-channel over-temperature protection
    - PLC intelligent control
    - Electric pressure balancing system
    - Self-diagnostic fault
     Main optional components: SIEMENS, OMRON, etc.

    Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System

    Infrared ray heating system
    1) Infrared ray lamps
    • Total 10 units of IR heating boxes (4 units on the left, 4 units on the right, 2 units on the back)
    • Power: 3 x 1kW/unit, size: 585 x 80 x 500MM per set
    • Each light box has 3pcs X 21 inches shortwave infrared lamps.
    • The service time of the lamps can last as long as 5000 hours.
    • Each box has a door, which keeps lamps off paint in painting phase. When it is in baking phase, the doors are opened.
    • The lamps cannot work when doors are closed, which is achieved by 2 protective sensors set on the doors.
    Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System
     2) Control system
    Microcomputer control system, touch button for the panel, stable and convenient to use.

    3) Temperature control
    When it reaches the setting temperature the heating system stops working automatically; when the temperature falls down below the setting temperature, the heating system starts working automatically.

    4) Time control
    The baking time can be set in advance. When the setting time is up, the heating system stops working automatically.

    5) Group control
    Total power is 30KW, controlled in 10 groups, 3KW per group. One group works individually or 10 groups work all together.

    6) Power adjustment
    The control box is installed with silicon controlled rectifier, which can adjust the heating power. When electricity power is not enough or no need to increase the temperature quickly, the operating power of the lamps can be turned down (10KW - 30KW).

    7) Automatic slow start function
    When the heating system is working, the silicon controlled rectifier is triggered slowly by the interior trigger of the temperature control system, which makes the infrared ray heating lamp work slowly, lessening the impact on the power system.


    Factory image:

    Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System
    Packing and loading:

    Paint Booth Paint Spray Booth Paint Oven with Infrared Heating System

    Please feel free to contact us if any inquiries. Thank you.
