Clear Floor Two Post Lift Hydrau Hoist for Automobile Vehicles China Manufacturer Heavy-Duty Direct-Drive Two Post Lift

• Warranty：1year
• Type：One Cylinder Hydraulic Lift
• Lifting Capacity：≥5T
• Driving Type：Hydraulic
• Certification：CE, ISO, RoHS
• Driving Motor Number of Mechanical Lift：1

=== Base Info ===

• Model NO.：ON-7215DT
• Condition：New
• Brand：Eounice
• Design：Two Post
• Transport Package：Contains
• Specification：3800*500*700mm
• Trademark：Eounice
• Origin：Cn
• HS Code：8425429000
• Production Capacity：10000

=== Description ===

Basic Info.

Model NO. ON-7215DT Condition New Brand Eounice Design Two Post Transport Package Contains Specification 3800*500*700mm Trademark Eounice Origin Cn HS Code 8425429000 Production Capacity 10000

Product Description

Product Description

TECHNICAL DATA

Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	Total Height	Width Between Columns	Total Width	Gross Weight	Motor Power
ON-7215DT	5,000kgs (11,000LBS)	≤60S	1920mm (75 9/16")	95mm (3 3 /4")	3824mm (150 9/16")	2850mm (112 1/4")	3420mm (134 5/8")	763kgs (1,682LBS)	2.2KW (3HP)
ON-7215DT/5.5	5,500kgs (12,000LBS)	≤60S	1920mm (75 9/16")	95mm (3 3 /4")	4200mm (165 3/8")	3000mm (118 1/8")	3570mm (140 9/16")	863kgs (1,903LBS)	3.0KW (4HP)

PRODUCT INTRODUCTION:

1. 5,000Kg (11,000LBS.) lifting capacity.
2. Single-point lock release by manual.
3. Dual hydraulic direct drive cylinders made on high standard.
4. Standard with 4 two-stage lifting arms.
5. Screw-up rubber pads with min height 95mm (3 3/4").
6. 1920mm (75 9/16") lifting height suitable for various operators.
7. Overhead safety protection device.
8. Automatic arms restraints.
9. Professional powder coating.

MAIN FEATURES:

1. The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4"), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
2. The maximum height is 3824mm(150 9/16"), and the effective height is 3700mm(145 11/16"), which is more suitable for the lifting of vehicles with high roof.
3. The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8") from the shaft end, which can effectively prevent the pulley from coming out.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

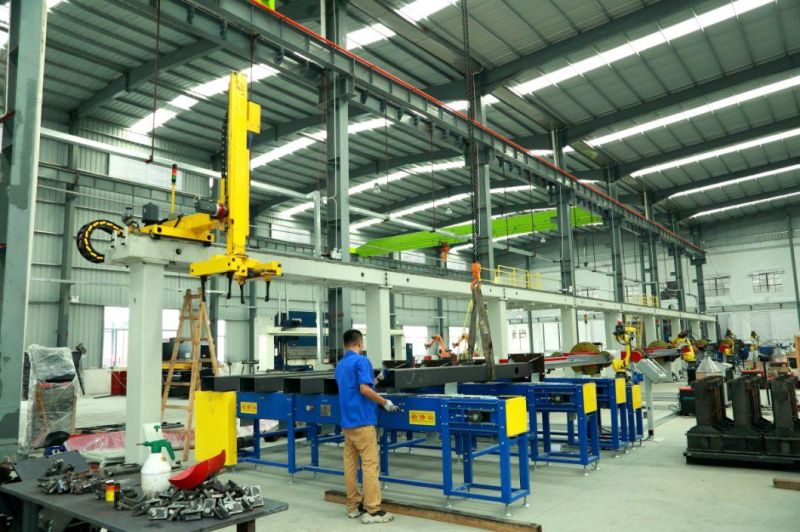

OUR FACTORY:








Warranty term:

Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.



Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,



Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.

Our Services

Our Company will be Provide to you some Service.



1. OEM ODM service.

2. Customized service.

3. One Year Quality warrant service, during the period spare part supplied free

if you pay for shipping.

4. Professional team supply service for life long time.

FAQ

The Some buyer maybe ask ?



A:You Are Trade Company or Factory?

A: We are manufacturer and we have our own trade company.So pls don`t worry.



B: How long the production can be delivered?

A: Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,

subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.



C: What is the regular color? Can I order special color which I like?

A: The regular color is Blue, Red, Yellow.

Yes, we can also produce machines with special color according to client's request.



D: Can I order in any special size?

A: Yes,you can.

The size is customized, but should be suitable for the inner size of containers.pls understand.
