European Standard Industrial Painting Baking Spray Booth for Truck/Bus

• Type：Spray Booth
• Certification：CCC, CE, CSA, GS, ISO9001
• Substrate：Steel
• Brand：Guangli
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type

=== Base Info ===

• Model NO.：GL
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：4.0
• Door Height(M)：4.0
• Air Flow (M3/H)：72000
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Truck
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner,Gas Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

=== Description ===

Basic Info.

Model NO. GL Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 4.0 Door Height(M) 4.0 Air Flow (M3/H) 72000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Truck Warranty Yes Heating System Riello Brand Diesel Burner/Gas Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

European Standard Industrial Painting Baking Spray Booth For Truck/Bus

GuangLi Spray Booth Feature

1.Body
--Wall panel :sandwich style,δ=75mm,polystyrene.(Rock wool as optional)
--Basement:Concrete Structure made by customers.2rows of grids. 3D Man Lift as optional.
--Ramps:NO.
--Door:4 pcs of front door without aluminum side cover. 2 pcs of emergency door with pressure lock.
2.Air System(two sets),collocation of each set as below:
--Frame:steel,powder coated.
--One 11kw intake fan.One 11kw exhaust fan.
--5m straight intake ducts,one 90° bend,and one 60°bend, 5m straight exhaust ducts,one 90° bend,and one 60°bend.
--5m straight chimney and 2 small bends.
--1manual VCD exhaust damper.(Electrical VCD as optional)
--1manual VCD intake damper.(Electrical VCD as optional )
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO /G20S Burner.
3.Filtration system
--Roof filter:16pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 2pc of air mouth filter.M style filtration per sets.(Bag style is optional)
4.Light System
--Upper light:20sets,4*18w per set.
--Side light:16sets,4*18w per set.(32sets,4*40w per set)
5.Electric System
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.
-- 50kw power.

Model	GL or OEM
External size (m)(LxWxH)	Customize
Internal size (m)(LxWxH)	Customize
Entrance width(m)	4.0
Entrance height(m)	4.0
Fan capacity( m 3 /h )	72000
Air velocity (m/s)	0.3-0.5
Drying Temperature	20-80
Oil consumption (L/unit)	6-8
Water Paint Device	As option
Power (kw)	50
Suitable Automobile Type	Truck

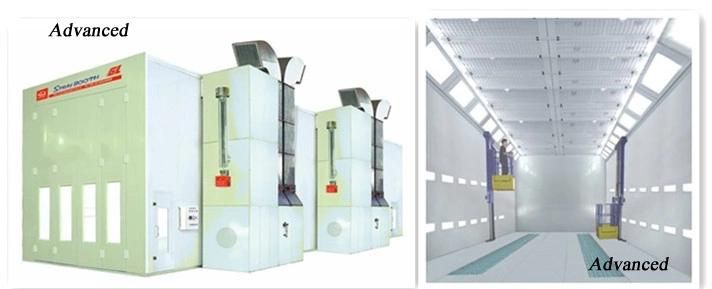

GuangLi Spray Booth Show

Note:The man lift model is GL1010.It's for optional.

Why Choose Us

1.More than 20-year experience in Spray booth and car lift field.

2.Superb unique technology and Automatic production line.

3.Large order can be placed.

4.Advanced equipment and exquisite workmanship.

5.Durable and reliable.

6.Good pre-sales and after-sales service.

Company Profile
GZ GUANGLI EFE CO.,LTD is a  professional spray booth and car lift manufacturer in China wtih  more than 22 years technical and production experience.

Founded in 1994, Guangli has our own enterprise headquarters,which covers 58,000M²of grounding area and 36,000M²of building area.

GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

Equipment

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

Exhibitions


Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.
