Pk Belt Poly V Belt Ribbed Multi Rib Rubber Belt EPDM Cr

• Standard or Nonstandard：Standard
• Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Electric Cars, Motorcycle, Food Machinery, Mining Equipment, Agricultural Machinery, Car
• Feature：Flame-Retardant, Anti-Static, Wear-Resistant, High Temperature-Resistance
• Tensile Strength：Strong
• Material：Rubber
• Type：V Belt

=== Base Info ===

• Model NO.：4PK825, 5PK1125
• Option：Cr, EPDM
• Transport Package：Plastic Bag, Carton
• Specification：PL1270
• Trademark：GPBELT
• Origin：China
• HS Code：4010390000
• Production Capacity：50000PCS,Day

=== Description ===

Basic Info.

Model NO. 4PK825, 5PK1125 Option Cr, EPDM Transport Package Plastic Bag/ Carton Specification PL1270 Trademark GPBELT Origin China HS Code 4010390000 Production Capacity 50000PCS/Day

Product Description

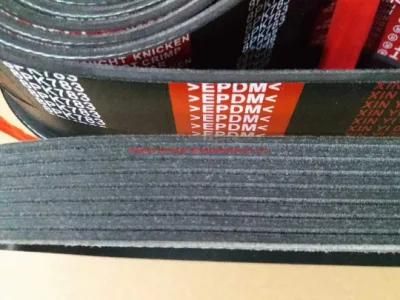

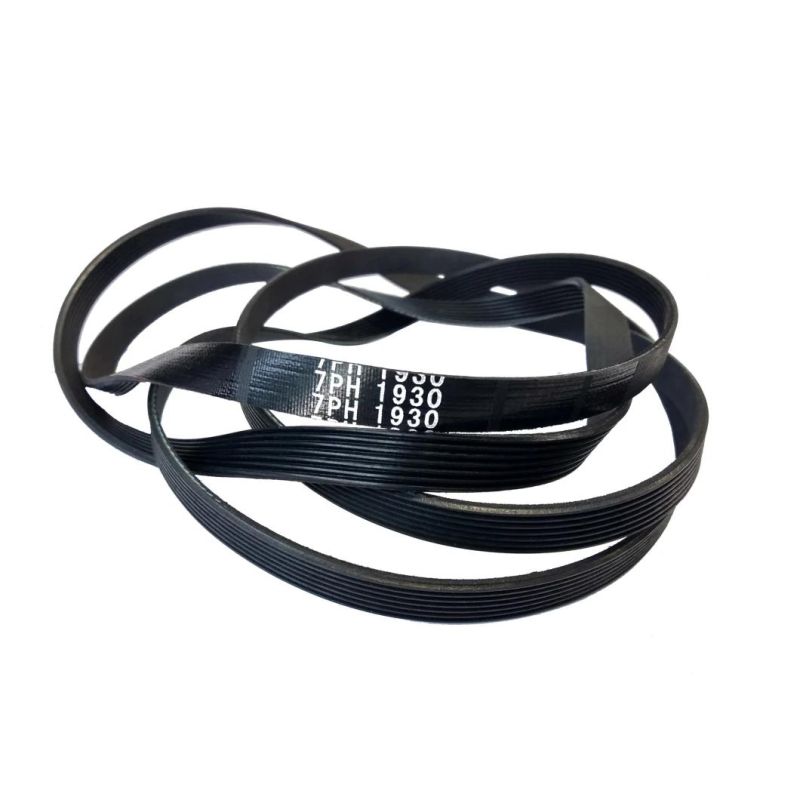

V-Ribbed Belt

Feature

V-Ribbed belt is made up of strong high modulus threads and special neoprene rubber compound. By jointing each V belt, they have features of high rigidity on horizontal direction and smooth move, and not easy to shake, to slay and to overturn. V-Ribbed belt is formed and vulcanized only in one time. It has an entire structure, even flowing power on each belt, large load capacity and long life. It is fit for powerful mechanical transmission. It has the advantages of both v Belt and flat transmission belt, soft and tough, tight and efficient.

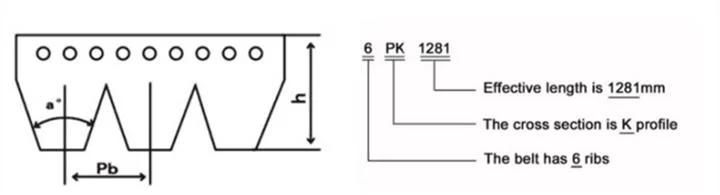

Type No.	Rib Section	Angle of Rib	Thickness	Rib Numbers	Length Range
PH	1.6	40	3mm	3-54	540-1270
PJ	2.34	40	4mm	3-36	540-1880
PK	3.56	40	4-6mm	3-23	600-2400
PL	4.7	40	10mm	3-16	900-3000
PM	9.4	40	17mm	3-8	1500-3000

Material Option:

Rubber:  CR, EPDM
Cord: Domestic glass cord, Japanese glass cord, aramid fiber

CR is the normal rubber for poly v belt ( v ribbed belt). It has a good performance of oil and chemical resistance. EPDM rubber is better in the properties of anti-aging, ozone resistant, electric isulation, even with better elastic shocking at lower temperatures. Different material composition determins the quality and working life of the belt.

FAQ

Q1.  Can I have a sample order?
        Yes, any sample order is welcome to know the quality of our products.

Q2.  What about the lead time of the sample or the final order?
        2-5 days for normal sample.
        20-30 days for a formal order.

Q3. How much is the minimum quantity for each item in one order?
       One mould quantity is ok. Usually around 50pcs for small item, 10pcs for big item.

Q4. Is it possible to print our logo or brand on the belt?
       Yes, we can print your logo or design on the belt after receipt of your formal authorization        letter of the logo or your brand.

Q5. Do you offer the guarantee for your product?
       Yes, usually we offer one year warranty for all of our products.
