Single Row Needle Roller Bearing Distributor RNA5902 RNA5903 RNA5904 RNA59/22 RNA5905 RNA59/28 RNA5906 RNA59/32 RNA5907 RNA5908 RNA5909 RNA5910 Rodamients
Hefei Pacesetter for New Material., Ltd / 2022-06-08
- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：28mm-190mm
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
=== Base Info ===
- Model NO.：RNA59,22
- Separated：Unseparated
- Structure Type：Needle Roller Bearing
- Precision Rating：P0 P6 P5 P4 P2
- For Shaft Diameter：20mm-160mm
- Clearance：C0, C2, C3, C4, C5
- Features：RNA59 Series Needle Roller Bearing
- Service：OEM ODM
- Certification：ISO9001:2008
- Main Market：Europe, North America, East Asia
- Transport Package：Neutral Packing Bearing
- Specification：28mm x 39mm x 23mm
- Trademark：HENGLI, LZ
- Origin：China
- HS Code：8482800000
- Production Capacity：500000 Pieces,Year
=== Description === Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd was established in 1970 and is accredited by the Chinese Ministry of Machine Building. We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such as Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings, Wheel Hub Bearings and Non-Standard Bearings. A - Manufacturer - Do it only with the Best; -Your Choice make different. Q2 - Our Products A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing - Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing Q3 - Process of our production A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing Q4 - How to customize bearing(non-standard) from your company? A -We offer OEM,Customized(Non-standard) service and you need to provide drawing and detailed Technical Data. Q5 - What should I care before installation? A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be removed; it is only necessary to wipe off the outside cylindrical surface and bore, if the grease is not compatible with the preservative, it is necessary to wash and carefully dry the bearing. -Bearings should be installed in a dry, dust-free room away from metal working or other machines producing swarf and dust. Q6 - How to stock and maintenance my bearings right? A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing; -Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity or sudden and severe temperature changes that may result in condensation forming; -Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.
kgmin RNA5902 20 28 18 0.3 8.24 10.24 16000 0.033 RNA5903 22 30 18 0.3 8.96 11.68 14400 0.035 RNA5904 25 37 23 0.3 17.04 20.4 12800 0.084 RNA59/22 28 39 23 0.3 18.56 23.44 11200 0.092 RNA5905 30 42 23 0.3 19.2 25.2 10400 0.101 RNA59/28 32 45 23 0.3 19.84 26.8 10400 0.108 RNA5906 35 47 23 0.3 20.4 28.4 8800 0.108 RNA59/32 40 52 27 0.6 25.2 38 8000 0.149 RNA5907 42 55 27 0.6 25.6 40 7600 0.176 RNA5908 48 62 30 0.6 34.8 53.2 6800 0.225 RNA5909 52 68 30 0.6 36.8 58.4 6000 0.232 RNA5910 58 72 30 0.6 38.4 64 5600 0.289 RNA5911 63 80 34 1 46.8 79.6 5200 0.367 RNA5912 68 85 34 1 49.2 86.4 4800 0.408 RNA5913 72 90 34 1 50 89.6 4400 0.462 RNA5914 80 100 40 1 68.4 124.8 4000 0.706 RNA5915 85 105 40 1 69.6 129.6 3760 0.745 RNA5916 90 110 40 1 72.4 139.2 3520 0.787 RNA5917 100 120 46 1.1 89.6 189.6 3200 1 RNA5918 105 125 46 1.1 92.8 201.6 3040 1.04 RNA5919 110 130 46 1.1 94.4 208 2880 1.13 RNA5920 115 140 54 1.1 101.6 208 2800 1.76 RNA5922 125 150 54 1.1 104.8 223.2 2560 1.89 RNA5924 135 165 60 1.1 144 304 2400 2.67 RNA5926 150 180 67 1.5 161.6 304 2160 3.21 RNA5928 160 190 67 1.5 167.2 388 2000 3.48
About Us

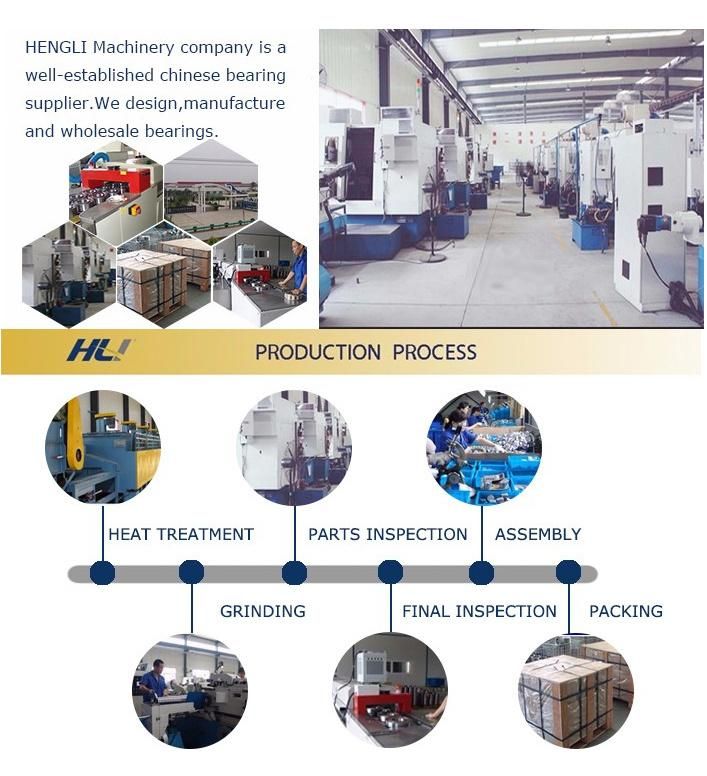

HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.
Certification
FAQ
Q1 - What is our advantages?
