Standard Right Angle Helical Worm Gearmotor with IEC Motor

• Application：Agricultural Machinery
• Function：Distribution Power, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction
• Layout：Corner
• Hardness：Hardened Tooth Surface
• Installation：Flange
• Step：Double-Step

=== Base Info ===

• Model NO.：S Series
• Type：Helical Gear
• Transport Package：Plywood
• Specification：SGS, CE
• Trademark：Starshine Drive
• Origin：China
• HS Code：8483402090
• Production Capacity：5000 Pieces,Month

=== Description ===

Basic Info.

Model NO. S Series Type Helical Gear Transport Package Plywood Specification SGS, CE Trademark Starshine Drive Origin China HS Code 8483402090 Production Capacity 5000 Pieces/Month

Product Description

S series Helical- Worm Geared Reducer with Motor

1. Product features





1.1. S series: right-angle speed reduction gearing composed by helical gears, worms, and gears, optimized and designed according to international standard

1.2.High precision, high efficiency, fine classification in transmission ratio, wide range, large transmission torque, reliable performance, low noise, flexible installation, and convenient use and maintenance.

1.3. They are widely used in various low-speed transmissions, which are general basic parts of mechanical transmission.

2. Technical parameters

Housing material	Cast iron
Housing hardness	HBS90-240
Gear material:	20CrMnTi
Surface hardnesss  of gear	HRC58°-62°
Gear core hardness	HRC33°-40°
Input/Output shaft material	40CrMnTi
Input/Output shaft hardness	HBS241°-286°
Shaft at oil seal postion hardness	HRC48 ° -55 °
Machining precision of gears  material	Accurate grinding 6-5 grade
Heat treatment	tempering, cementing, quenching etc
Efficiency	up to 90%
Noise(Max)	60-68dB
Unit model	Foot mounted,flange mounted,hollow shaft mounted
Input method	flange input,inline input,shaft input
Vibration	≤ 20um
Backlash	≤ 20Arcmin
Bearing brands	NSK,C&U etc
Oil seal brands	NAK,SKF etc
Lubricant	VG680
Motor	IP55, F class
Motor shaft	40Cr, Tempering, cementing,quenching etc.

3.Applications

Foshan XG Transmission Gearbox reducer are widely used in :
Ceramic Industry
Glass Industry
Food Industry
Metallurgy Industry
Beer& Drink Industry
Printing and dyeing Industry
Textile Industry
Warehouse Logoistics Industry
Wood working Machinery
environmental protection equipment Industry
Leather Industry
Pharmacy Industry

5.Company Information



Guangdong Starshine Drive Co.,Ltd,the predecessor was a state-owned military mould enterprise, was established in 1965. Starshine specializes in the complete power transmission solution for high-end equipment manufacturing industries based on the aim of "Platform Product, Application Design and Professional Service".

Starshine have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.

Our main products are R/S/K/F series helical geared motor, SNP series planetary gearboxes, SNKG series bevel-helical gearmotor, NCJ series gear motor, RV series worm gearboxes, JWB-X series speed variators, B/JXJ series cycloidal gearboxes, XGK series helical-hypoid Gearboxes, which widely used in ceramic industry, glass industry, woodworking machinery , high voltage switch, food & beverage, packaging & printing, Storage & logistics, hoisting & transportation facilities…etc , and Starshine technically provide the professional product & service for the medium and high-end customers, and our gearboxes are best-selling in domestic, and even in abroad , such as in Europe, North America, South America, Middle East, South Asia, Southeast Asia, Africa…etc.

 In the future , Starshine will hold the creed of "serving customer, diligence & simplicity, self-criticism, innovation, honesty, teamwork", and the concept of "quality creates value" to focus on the customers' requirements and provide them the competitive transmission solution and create value for them constantly, and make a high-end equipment manufacturing industry and create a preferred brand of replacing import products and upgrading continuously for the end users.

Between Dynamic and Static, Simple is Extraordinary, let's go forward hand in hand and make a brilliant future!

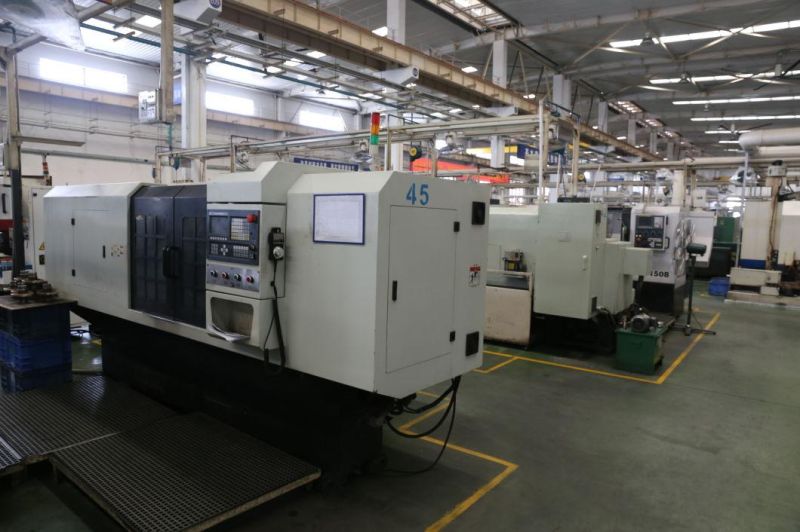

Our factory
1. 300 sets advanced processing machines






2. "6S"Standardized Management



Our Team

Technical Team



Sales Team



After Sales Team



Exibition Show

2019 ASIA ceramics exhibition



2018 World of Industry Exhibition



Quality Assurance

Products 100% test before delivery

Passed ISO 9001: 2015 Certificate.


Our Certificates:
Passed " ISO 9001 International Quality System Certificate", "International Quality Credit AAA++ Ceritifacte" ,  " Swiss SGS Certificate", Iconic Brand in Chinese Electromechanical Industry", "Famous Brand of Guangdong Province", "Non-public Scientific and Technological Enterprise in Guangdong Province", "National High and New-tech Enterprise", "TOP 50 in Chinese Gear Industry" "2011 Foshan Engineering and Technological R&D Center" and so on.

Our service

1. We provide 12 months Warranty.
2. We have thousands of gearbox reducers. From Input Power 0.06KW to 200KW, Ratio 1.3-289.74, Output speed 0-1095rpm and Output torque 1.4-62800Nm. They can meet your all different requirements for different industries.
3. 24 hours online service.
4. Fast delivry.
5. We provide E-catalog or Paper catalog,so you can select the model easily according to your requirements
6. Welcome you come to our factory to check our products, we can help you to book the hotel or ticket.

FAQ

Q:Are you a trading  company or manufacturer?
A: We are manufacturer.

Q:Where do you base?
A: We are in Sansui district, Foshan, China.

Q:What kinds of gearbox can you produce for us?
A: R/S/K/F series helical geared motor, SNP series planetary gearboxes, SNKG series bevel-helical gearmotor, NCJ series gear motor, RV series worm gearboxes, JWB-X series speed variators, B/JXJ series cycloidal gearboxes, XGK series helical-hypoid Gearboxes

Q:What are the application of the gearbox?
A:Products are widely used in ceramic, glass, food, metallurgy, beer & drink, printing and dyeing, textile, petrochemical engineering, warehouse logistics, wood-working machine, environmental protection equipment, printing and packaging, pharmacy, and leather. Products are sold in some countries and regions, such as Europe, America, and Southeast Asia, and it possesses dozens of distributors and after-sale service agents.

Q:What is the material you use?

A1: Aluminum Housing body ( For the RV series worm gearbox Size 30~90)

A2: Cast iron(For the RV series worm gearbox, Size 110-150, For the NCJ  & F/R/S/K series helical gear reducer)
