Environmental Protection Car Spray Booth Baking Oven Dust-Free Booth

• After-sales Service：1 Year
• Warranty：1 Year
• Type：Spray Booth
• Certification：CCC, CE, ISO9001
• Substrate：Steel
• Brand：Jzj

=== Base Info ===

• Model NO.：JZJ-9100
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Sea Blue, Red, Orange, White
• Motors：Proof-Explosion Motors
• Lighting：External Lighting
• Inside Dimension：6900*4000*2650(mm)
• Heating System：Diesel Oil or Eletricity
• Transport Package：Consist with International Shipping Packaging.
• Specification：CE, ISO
• Trademark：JZJ
• Origin：Yancheng Jiangsu
• HS Code：8419399090
• Production Capacity：2500 Sets,Year

=== Description ===

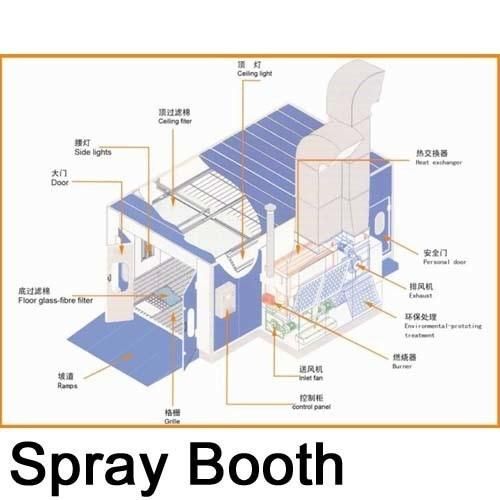

17KWCabin systemWall panel  50mm EPS sandwich panel, steel sheet thickness: 0.6mmCeiling panel Galvanized steel sheet.Basement300mm depth, middle with grids, side with checkered plates. Rampthree pieces 2000*900mm rampsGlass4mm safety tempered glassWindowsSquare glass windows. Air Make-up SystemAir Inlet fan system1*7.5kw turbo fan, proof-explosion motor, Ex ratedExhausted fan system1*7.5kw turbo fan, proof-explosion motor, Ex rated Air capacity 25000m3/hAir Flowing speed0.3m/s in empty boothAir Control methodOne manual damper for air inlet and exhausted systemAir ducting8 meters air duct, one flop damper and one weather hoodPurification SystemPre-filterG3 grade, Pockets filter Ceiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan FiltersPocket filter or M green fiber glass filter and active carbonHeating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner:        RG5S diesel oil burner(gas burner for option)    Heating productivity                             260000Kcal/hSpray to baking switchPneumatic Damper Chimney ducting3 meters stainless ducting and one chimney elbowMax heating temperature80degreesHeating time5-6min(20-60degrees)fuel consumption6-8L/vehicleLighting SystemCeiling lights8 Units, each 4 * 36W Philips lamps, Total 1152 WSide lights8 Units, each 4 *20W Philips lamps, Total 800 WIllumination 1000LUXControlling systemSwitched control panel Spraying & baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gauge

Q: Which Port of loading?

A: Mainly ship from Ningbo port / Shanghai Port/Guangzhou Port.

Q: What is your MOQ?

A: All the products can be mixed in one container with low MOQ 1pcs.

Q: What is the Lead Time?

A: Normally it needs 20-25 days.

Q: What is the Payment Terms?

A: T/T/ 30% deposit before production and 70% before delivery.
