Sprocket with Roller Chain Assembly Chain Coupling

• Standard Or Nonstandard：Standard
• Shaft Hole：10-32
• Torque：50-70N.M
• Bore Diameter：14mm
• Speed：7000r,M
• Structure：Flexible

=== Base Info ===

• Model NO.：0614
• Material：Cast Steel
• Type：Universal Coupling
• Transport Package：Pallet
• Specification：0614
• Trademark：YC
• Origin：China
• HS Code：8483900090
• Production Capacity：100000PCS,Month

=== Description ===

Basic Info.

Model NO. 0614 Material Cast Steel Type Universal Coupling Transport Package Pallet Specification 0614 Trademark YC Origin China HS Code 8483900090 Production Capacity 100000PCS/Month

Product Description

chain coupling,  roller chain with sprocket assembly for transmission system.

 Chain couplings are suitable for the elastic transmission of rotating components over a wider speed range.
the couplings consist of two pre-drilled sprockets with the same number of teeth and a double roller chain DIN8171 with a straight spring lock
the simple opening of these couplings allows quick assembly and disassembly by simply loosening the connecting chain
all in one, the product offers an optimal price / ratio for numerous applications.
on request and depending on the application, the chain couplings can be supplied with hardened teeth as well as with a bore with an adjusting screw cap per wheel

Technical data list,



Coupling No	Chain type	Teeth Number	Dm	A	E	L	H	d
YC0614	06B-2	14/14	31	25	51	55	16.6	8
YC0618	06B-2	18/18	43	28	63	61	16.6	10
YC0814	08B-2	14/14	41	28	68.9	62.7	22	10
YC0818	08B-2	18/18	56	28	85	62.7	22	12
YC1018	10B-2	18/18	70	30	106.2	67.5	26	14
YC1218	12B-2	18/18	80	35	125.8	78.4	28	16
YC1224	12B-2	24/24	90	40	162.1	88.4	28	20
YC1618	16B-2	18/18	100	45	167.3	105.7	47	20
YC1624	16B-2	24/24	110	50	215.6	115.7	47	20

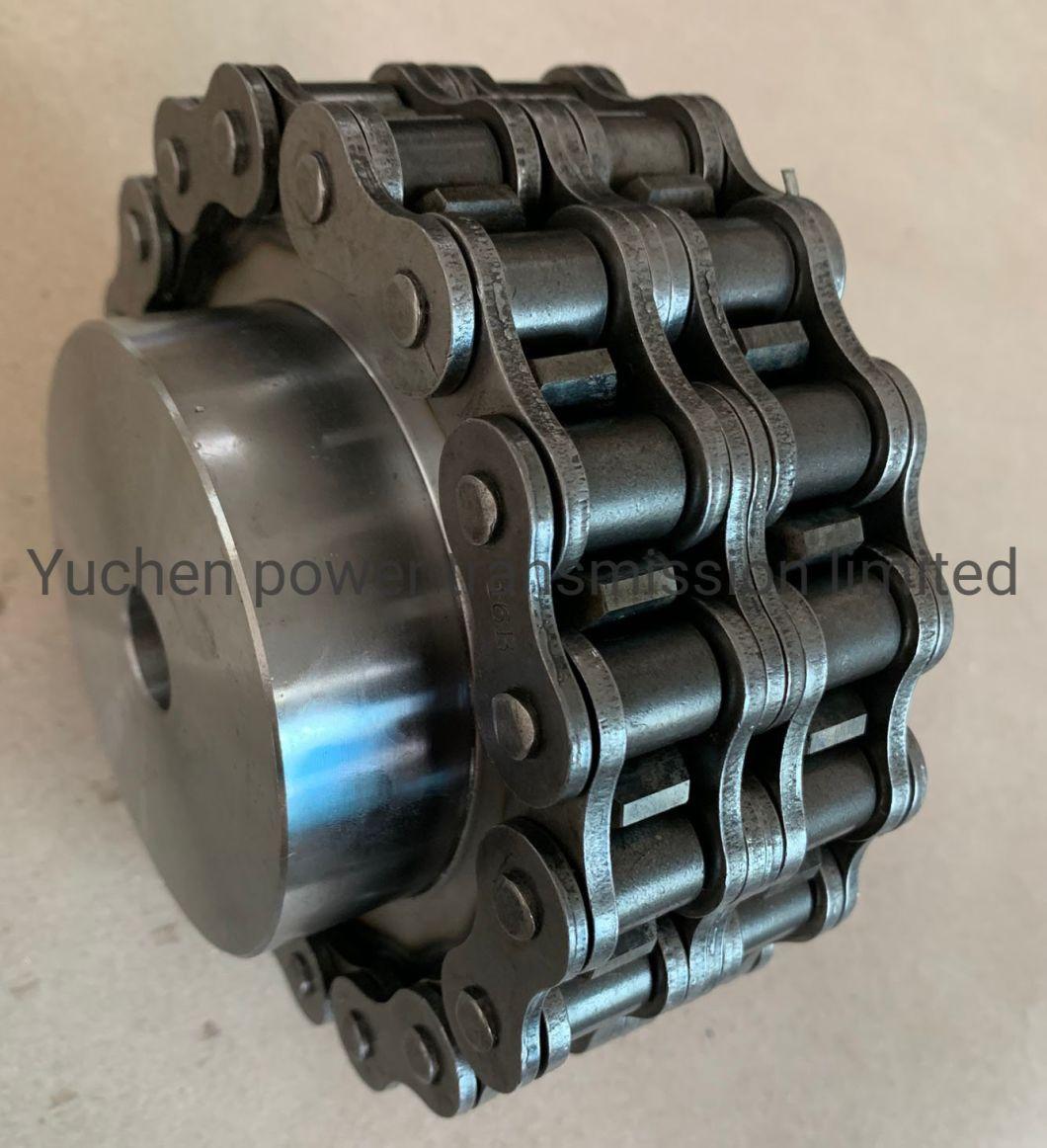

Products picture,


Packing picture,
