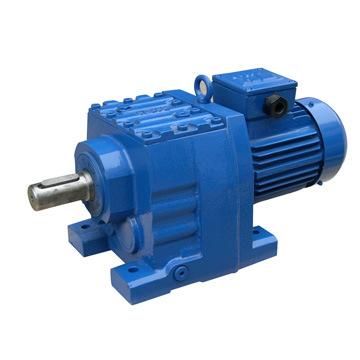

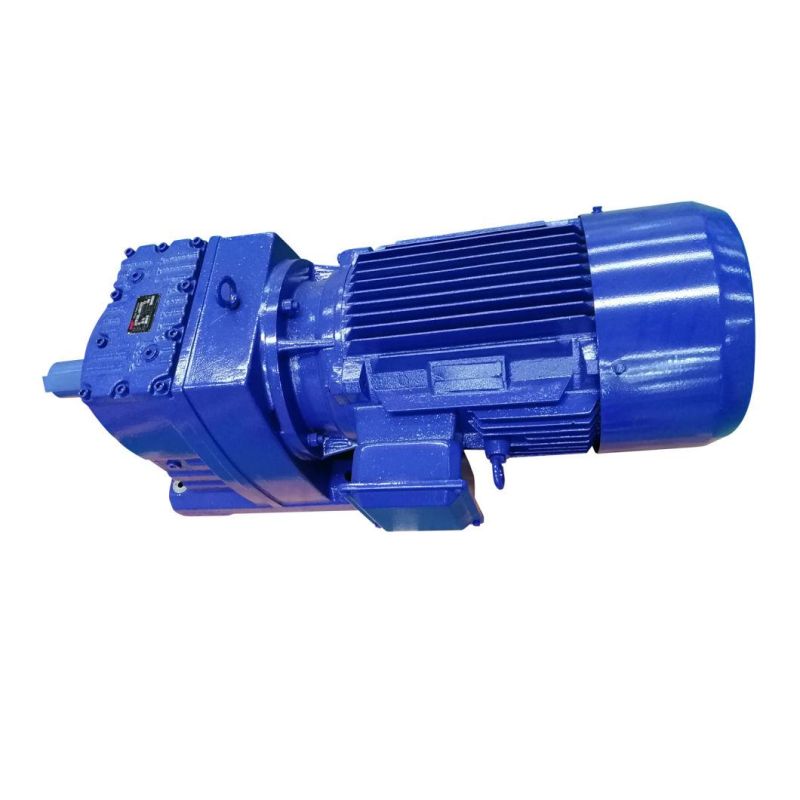

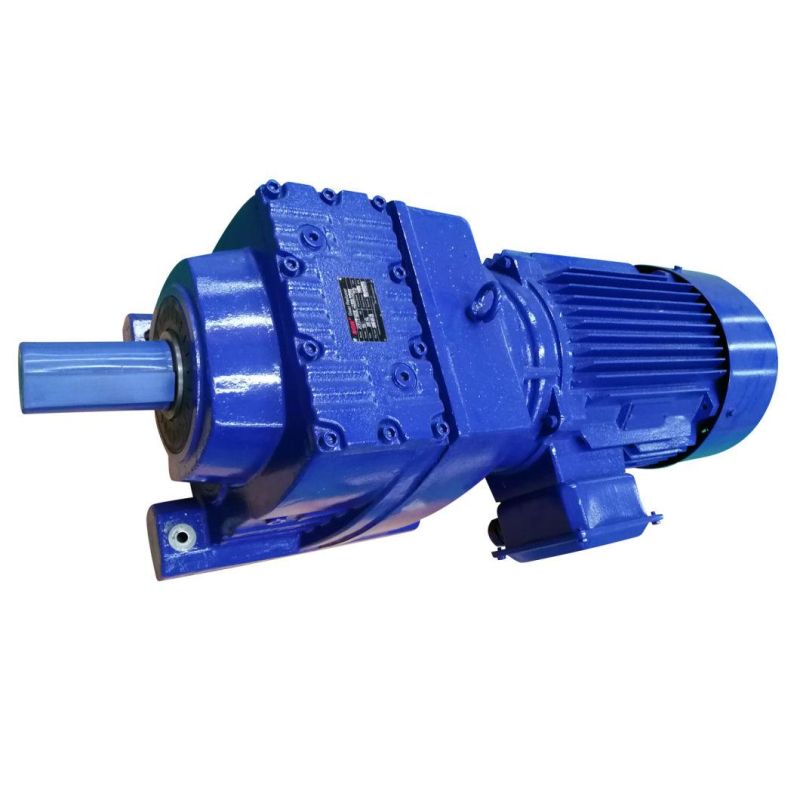

R Series Helical Geared Motor (R97)

• Application：Machinery
• Hardness：Hardened Tooth Surface
• Installation：Horizontal Type
• Layout：Coaxial
• Gear Shape：Bevel Gear
• Step：Single-Step

=== Base Info ===

• Model NO.：R97
• Type：Helical
• 17-167：17-167
• Gear Unit Size：R27,R37,R47,R57,R67,R77,R87,R97,R107,137
• Mounting Type：Foot-Mounted,Flange-Mounted
• Mounting Position：M1,M2,M3,M4
• Product Figure：R,RF,R..S,Rx,R...B5
• Transport Package：PLYWOOD CASE
• Specification：ISO9001: 2008
• Trademark：SGR
• Origin：CHINA
• HS Code：8483409000
• Production Capacity：5000PCS,MONTH

=== Description ===

Basic Info.

Model NO. R97 Type Helical 17-167 17-167 Gear Unit Size R27/R37/R47/R57/R67/R77/R87/R97/R107/137 Mounting Type Foot-Mounted/Flange-Mounted Mounting Position M1/M2/M3/M4 Product Figure R/RF/R..S/Rx/R...B5 Transport Package PLYWOOD CASE Specification ISO9001: 2008 Trademark SGR Origin CHINA HS Code 8483409000 Production Capacity 5000PCS/MONTH

Product Description

R Series Helical Geared Motor (R97)


Technical data of geared motor:
1...Ratio range: 5-264
2. Input power: 0.18-160KW
3. Output speed: 0.09~832 r/min
4. Permit torque rang: ≤18000 N. M
5. Structure mode: Normal solid shaft, foot-mount, flange-mount, double shaft

Characteristic:
1. Good available capability & reliability
2. Good temperature exchange capability & high strengthens
3. Carburized and grinded teeth
4. Good fabricate capability, can be fabricated with other reducer to realize low-speed transmission

ratio range	5:1 to 264:1
input power	0.18kw to 160kw
voltage	220V/380V/400V/440V
frequency	50Hz / 60Hz
output speed	0.09rpm to 382rpm
