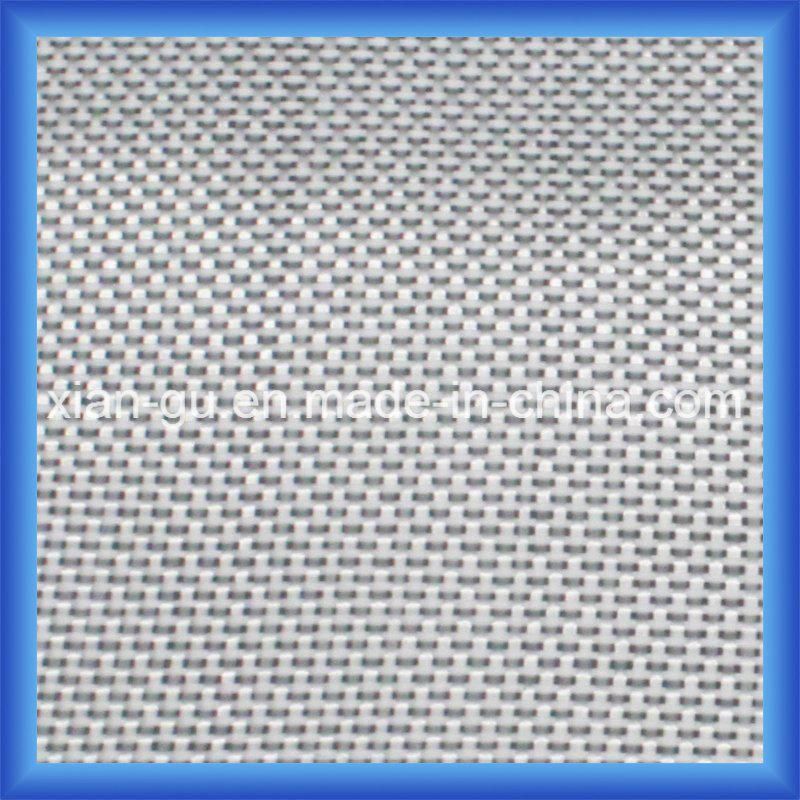

200g Electrical Insulation Laminates Fiberglass Fabrics

Wenzhou Baofeng Packing Technology Co., Ltd. / 2022-06-27

200g Electrical Insulation Laminates Fiberglass Fabrics

  • Shape:Fiberglass Cloth
  • Fiber Characteristics:E-Glass
  • Diameter of Filaments:9micron
  • Fiber Appearance:Continous Fiber
  • Glass Composition:E-Glass
  • Model:Ew200

=== Base Info ===

  • Model NO.:EW200
  • Woven Type:Plain
  • GSM:200G,M2
  • Width:1000mm
  • Length:100m
  • Fiber Linear Density:132tex
  • Epi:20
  • Ppi:17
  • Diameter of Single Fiber:9micron
  • Strength at Break:>650n,25mm
  • Transport Package:Carton
  • Specification:1020*280*280mm
  • Trademark:XIANGU
  • Origin:China
  • HS Code:7019520090
  • Production Capacity:8000000m2,Month

=== Description ===

Basic Info.

Model NO. EW200 Woven Type Plain GSM 200G/M2 Width 1000mm Length 100m Fiber Linear Density 132tex Epi 20 Ppi 17 Diameter of Single Fiber 9micron Strength at Break >650n/25mm Transport Package Carton Specification 1020*280*280mm Trademark XIANGU Origin China HS Code 7019520090 Production Capacity 8000000m2/Month

Product Description

200g electrical insulation laminates fiberglass fabrics/E-glass woven roving EW200 is a kind of E-glass plain bidirectional fabric made by interweaving direct roving.It is compatible with unsaturated polyester,vinyl ester, epoxy and phenolic resin.It is high-performance reinforced material,widely used in hand lay-up and continuous laminating process,easy to handle and has excellent molding performance.It has rapid resin penetration together with a fast wet out time.The cloth also brings a highly translucent finished laminates.It is an excellent reinforcement material for electrical insulation laminates,printed circuit boards,translucent roofing panel,chemical storage tanks,FRP Pipes,boat hulls and decks,truck body panel,automotive parts,furniture parts,sports facilities and so on.

SPECIFICATIONS:
Model:EW200
Woven type:Plain
GSM(g/m2):200±13
Width(mm):1000
Length(m):100
Fiber linear density(tex):Warp:132/Weft:132
EPI:20
PPI:17
Diameter of single fiber(μm):9
Strength at break(N/(25×100mm)):Warp:650/Weft:550
Thickness(mm):0.23±0.01
Moisture(%):≤ 0.15

ROPERTIES:
Weight uniformity,Fast wet-out,Easy air release,Excellent transparency of finished products,Excellent laminate clarity,Compound with UP,VE,EP resins,Low resin consumption.

STORAGE:
The woven roving should be keep dry in their original bags and stored in a suitable place,preferably at room temperature with 35-65% relative humidity.Avoid the sun, rain and fire.

PACKAGING:

200g Electrical Insulation Laminates Fiberglass Fabrics

KINDLY REMINDER:
We can produce other models please contact us.

PRODUCT DETAIL IMAGES.
200g Electrical Insulation Laminates Fiberglass Fabrics
200g Electrical Insulation Laminates Fiberglass Fabrics
200g Electrical Insulation Laminates Fiberglass Fabrics
200g Electrical Insulation Laminates Fiberglass Fabrics
200g Electrical Insulation Laminates Fiberglass Fabrics
