Hpi900 Sprag Clutch Bearing High Speed One Way Bearing

• Certification：ISO9001:2008
• Feature：High Speed
• Style：With Outer Ring
• Rows Number：Single
• Load Direction：Radial Bearing
• Material：Gcr15

=== Base Info ===

• Model NO.：HPI900
• Model：Hpi900
• Type：Sprag Type
• Weight：71kg
• Seals Type：Sealed
• Torque：24408nm
• Inner Diameter：92mm
• Outer Diameter：304.8mm
• Port：Shanghai;Ningbo;Shenzhen
• Delivery：10-15days
• Transport Package：Single Box or as Your Requirements
• Specification：P6
• Trademark：SUMA or OEM
• Origin：Changzhou, Jiangsu, China
• HS Code：84836000
• Production Capacity：5000PCS,Month

=== Description ===
Overrunning
 speeds Weighttorque
Drag






FSO
FSO-GR
HPI  FSOd H7 -bxhABCEFGKfT R T KN 1)n max 2)  -0.05        [Nm][min -1 ][mm][mm][mm][mm][mm][mm][mm][mm][mm][kg][Ncm]300 379 3000/900   15-5x563.576.260.451.628.5866.6713 0.81.618 400 407 2800/850   18-6x669.8588.968.071.630 73 13 0.82.727 500 1621 2500/800   30-8x788.9107.9585.731.645 92 16 1.54.831    40-12x8          600 3105 2200/750   45-14x995.25136.52592.21.663.5120.616 1.68.662    50-14x6             50-14x9          700 6900 1600/450     60-18x11127180.975123.851.690 158.7520 1.619 156    65-18x11             70-20x12    101,6 5)
FSO/HPI750-1027

Type	Torque  capacity	Overrunning speed	dH7	A	B	C	E	F	G	k	f	Wegiht	Drag Torque
750	9660	1800/650	75-20x12	152.4	222.25	149.2	1.6	107.74	177.8	25	1.6	38	5.08
			80-22x14
			85-22x14
			80-22x14
800	17940	1500/525	90-25x14	152.4	254	149.2	1.6	139.7	227	25	1.6	46	7.12
			100-28x16
			110-28x16
			100-28x16
900	24408	1350/500	110-28x16	161.9	304.8	158.7	1.6	161.92	247.65	32	1.6	71	8.47
			120-32x18
			130-32x18
			130-32x18
1027	36612	700/375	150-36x20	168.3	381	165.1	3.2	228.6	298.45	32	3.2	113	13.56
			175-45x25

1) T max = 2 × T KN
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus
2 extra-holes at 180°

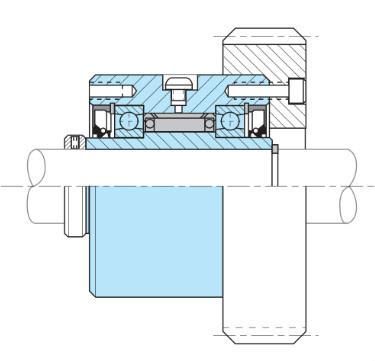

MOUNTING EXAMPLE
