Outdoor Street Billborad Waterproof IP65 High Definition P4 256*128mm LED Screen.

• Tube Chip Color：Full Color
• IP Rating：IP65,IP54
• Pixel Pitch：4mm
• Pixel Configuration：SMD 1921
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：400W,M2

=== Base Info ===

• Model NO.：p4
• Pixel Density：62500 DOT,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, FCC
• LED Lamp：Nation Star ,Epistar ,Kinglight
• IC：Mbi 5124,5153
• Color Temperature：6500-7000K
• Refresh Rate：1920Hz
• Display Contrast：2500:1
• Cabinet Size：768*768mm ,768*1024 mm
• Service Life：100000h
• Use Voltage：AC 90-240V
• Controller：Nova Star ,Linsn
• Maximum Power Consumption：900W,M2
• Transport Package：Flight Case ,Wooden Case ,Carton
• Specification：256mm*128mm
• Trademark：Honghui
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：3500 Sqm ,Month

=== Description ===
         Outdoor High Brightness P4 LED Display Screen1Pixel Pitch 4 mm 2Cabinet Size 768*768mm / 768*1024mm3Pixel density 62,500 dots/m2 4Color temperature6000K--8000K5Viewing angleH:140;V:1406Brightness5500-7500 cd/m2 ,brightness automatically adjusted 7Gray level256 RGB  each ,display 16.7M colors ,vivid and perfect video effect 8Dead LED lamp rate≤0.1‰9Non-Flatness<0.2mm10Module interval<0.2mm11Packaging Gross Weight(KG)45 kg (Estimated data)12Packaging dimension1m*1m*1.15 m (6cabinet in one case)13Maximal power/m2 1000 W/m214Brightness adjusted256 grade by auto-optic/color &8 grade by hand15Input signalRF,S-video,RGB,RGBHV,YUV,YC&Composition,etc16Life-span ≥1 00,000 hours17MTBF 5,000 hours18Frame frequency25 - 60 Hz / s19Refresh rate≥2,000 Hz  ,if you want  ≥ 3840 Hz we can design special offer  for you 20Signal Input(with video processor)HDMI, DVI, VGA, RF, S-Video, RGB,
RGBHV, YUV, YC&Composition, etc.19Control Distance120 m (no repeating); Optical fiber
transmission: 0.5km- 10km20Systems Operating PlatformWindows XP, Win 7, Win8, Win8.1, Win10
2.Product Detailed Photos :

Module size: 256mmx128mm



the cabinet size: 960mmx960mm





3.Our HONGHUI Factory :


Our HONGHUI Team : 1).Price :We can give you the most satisfying price ,because we signed long time VIP Cooperation Contract with raw material suppliers since we step into led industry .Once the market change ,we will flexibly adjust the price and timely notify everyone of you about our update price. YOU WANT = WE DO .First time trial order will let you strongly shake hands with us . We warmly welcome any kind quality inspection process from your team .

2).Quality : We seriously practice 24 hours led module testing time and 72 hours led display aging time .Before shipping and within the warranty time ,our team will track the goods situation to satisfy all your request .

3).Production : Support Any Kind Special Customized Design . YOU NEED =WE DESIGN .We design exactly the same material you mentioned with our team in the sales contract and business negotiation process . We are direct factory ,if your led project time is definitely fixed , with no any change , We will arrange your order firstly to catch up with your time . MEET YOUR TIME = SUPPORT OUR TEAM .

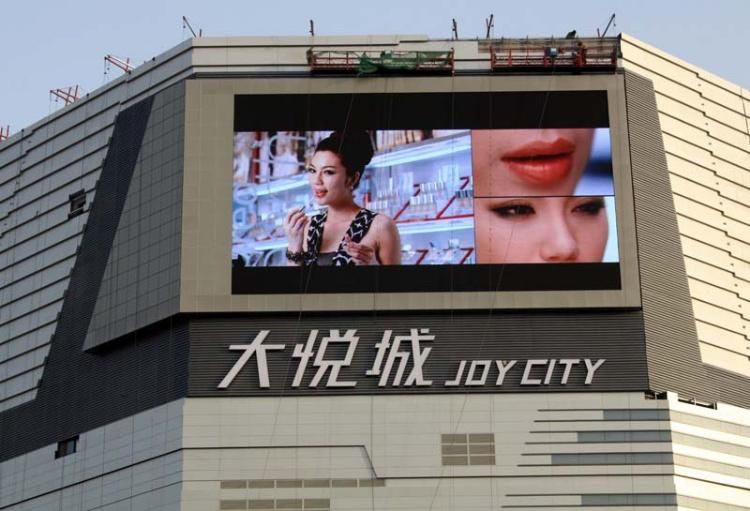

4.Application:












5. FAQ :Q1:Are you a factory or just a trade company?
A1:Our HONGHUI is a led display factory with R&D department and production line,professional engineering team and energetic sales team.Warmly welcome to visit our HONGHUI factory and have face-to-face business talk to better understand each other .Or when you are free ,we can have SKYPE VIDEO TALKING ,and show our HONGHUI factory.

Q2:Can you tell me why I should choose your company ?
A2:Concentration makes professional .Professional achieves successful .
Our HONGHUI have 8 years professional led technical experience .We are 5 years gold supplier for China government led project .Now ,we are largely expanding our international market.From 2009 to 2017, we only do LED .Now and In the future, we still do LED.We can cooperate from trail order to establish trust step by step .

Q3: What's the warranty of your LED Display ?
A3: 2-5 years warranty .and 96360hours life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.
