High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor

Tenda Enterprise Holdings Co., Limited / 2022-06-27

High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor

  • Tube Chip Color:Full Color
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display, Advertising
  • Pixel Pitch:10mm
  • Pixel Configuration:1R,1G,1B
  • Pixel Density:10000 Dots,Sqm
  • Scanning Mode:1,8 Scan

=== Base Info ===

  • Model NO.:indoor P10
  • System Operating Platform:WIN XP
  • Display Type:LED Video Display
  • Application:Stage Performance, Advertising, Shopping Guide, Stage
  • IP Rating:IP20
  • Certification:CE, RoHS, FCC
  • Module Resolution:32*16
  • Brightness:0-1000 Adjustable
  • Gray Scale:16 Bit
  • Viewing Angle:140 Degree
  • Transport Package:Carton, Wooden Carton, Flight Case
  • Specification:320x160mm
  • Trademark:Seekstarled
  • Origin:China
  • HS Code:8528591090
  • Production Capacity:1000 Sqm,Month

=== Description ===

Basic Info.

Model NO. indoor P10 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Stage IP Rating IP20 Certification CE, RoHS, FCC Module Resolution 32*16 Brightness 0-1000 Adjustable Gray Scale 16 Bit Viewing Angle 140 Degree Transport Package Carton, Wooden Carton, Flight Case Specification 320x160mm Trademark Seekstarled Origin China HS Code 8528591090 Production Capacity 1000 Sqm/Month

Product Description

Description:
High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor

LED is the abbreviation for light emitting diode. LEDs are arranged in vertically and horizontally with a stable pitch that forms LED matrix LED Display Screen. Each of the LED Display has a corresponding brightness control circuit. The computer controls the circuit, which affects the brightness of each LED and then forms the image we want in the LED display.
High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor




LED display screens are widely used in government agencies for government affairs, stations, banks, taxation, post and telecommunications, hospitals, customs, securities markets, bidding markets, schools, factories, ports, stadiums, airports, industry and commerce, taxation, customs, monitoring centers and advertising. The entertainment industry, and real estate trading centers and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.
High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor

High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor
Specification:
Product Item Indoor P2.5Indoor P3Indoor P4Indoor P5Indoor P6Indoor P10
Pixel Pitch 2.5mm3mm4mm5mm6mm10mm
LED Type LED RGB 3in1RGB 3in1RGB 3in1RGB 3in1RGB 3in1RGB 3in1
LED Life LED 100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours
Configuration SMD1515/SMD2121SMD2121SMD 2121SMD 2121SMD3528SMD3528
Module Size 320x160192x192256x128320x160192x192320X160
Module Resolution 128*6464*6464*3264*3232x3232x16
Pixels Density (dots)16000011111162500400002777710000
Brightness (cd/sqm) 0-1000 adjustable0-1000 adjustable0-1000 adjustable0-1000 adjustable0-1000 adjustable0-1000 adjustable
Viewing Distance ≥2m≥3m≥4m≥5m≥6m≥10m
Viewing Angle 140°/160°140°/160°140°/160°140°/160°140°/160°140°/160°
Refresh Rate ≥1920HZ/≥3840HZ≥1920HZ≥1920HZ≥1920HZ≥1920HZ≥1920HZ
Gray Scale 16bit. Red, Green and Blue  each 16K16bit. Red, Green and Blue  each 16K16bit. Red, Green and Blue each 16K16bit. Red, Green and Blue  each 16K16bit. Red, Green and Blue  each 16K16bit. Red, Green and Blue  each 16K
Color Temperature 3200K-9300K adjustable3200K-9300K adjustable3200K-9300K adjustable3200K-9300K adjustable3200K-9300K adjustable3200K-9300K adjustable
Scan Mode 1/32scan1/32scan1/16scan1/16scan1/16scan/1/8scan1/8scan
Cabinet Material die-casting aluminumdie-casting aluminumdie-casting aluminumdie-casting aluminumdie-casting aluminumdie-casting aluminum
Cabinet Size (mm) 640x640/480x480576x576/768x768512x512/768x768640x640/960x960576x576/960x960640x640/960x960
Cabinet Weight(kg) 13kg11kg19.5kg28.8kg28.8kg28.8kg
Max Consumption (W/sqm)650650650650800800
Ave Consumption (W/sqm) 160-350160-350160-350160-350160-350160-350
Supply Voltage AC220V/50HZ; AC110V/60HZAC220V/50HZ; AC110V/60HZAC220V/50HZ; AC110V/60HZAC220V/50HZ; AC110V/60HZAC220V/50HZ; AC110V/60HZAC220V/50HZ; AC110V/60HZ
Storage Temperature -35ºC~+85ºC-35ºC~+85ºC-35ºC~+85ºC-35ºC~+85ºC-35ºC~+85ºC-35ºC~+85ºC
Working Temperature -20ºC~+50ºC-20ºC~+50ºC-20ºC~+50ºC-20ºC~+50ºC-20ºC~+50ºC-20ºC~+50ºC
Operating Humidity 10%-90%10%-90%10%-90%10%-90%10%-90%10%-90%
IP Rating Dust Proof(rear side IP5X)Dust Proof(rear side IP5X)Dust Proof(rear side IP5X)Dust Proof(rear side IP5X)Dust Proof(rear side IP5X)Dust Proof(rear side IP5X)
Display Capacity Text, Graph and VideoText, Graph and VideoText, Graph and VideoText, Graph and VideoText, Graph and VideoText, Graph and Video
Control System LINSN,Nova-star Colorlight (adjustable)LINSN,Nova-star Colorlight (adjustable)LINSN,Nova-star Colorlight (adjustable)LINSN,Nova-star Colorlight (adjustable)LINSN,Nova-star Colorlight (adjustable)LINSN,Nova-star Colorlight (adjustable)
Control Mode Synchronous Control ModeSynchronous Control ModeSynchronous Control ModeSynchronous Control ModeSynchronous Control ModeSynchronous Control Mode
Features:
High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor

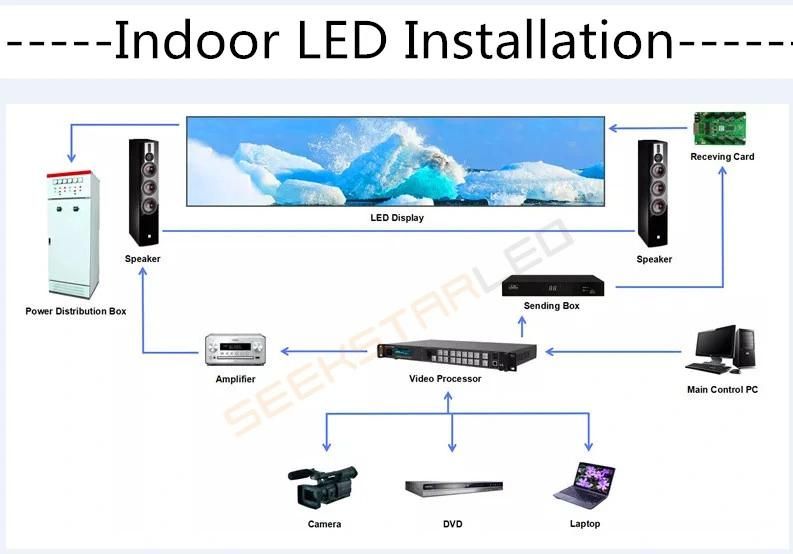

High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of IndoorInstallation:

High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor
Application:
High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of IndoorAbout US:
High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor

High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of IndoorHigh Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of IndoorHigh Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor High Definition Full Color LED Display Module P3 P4 P5 P6 P10 LED Display Screen of Indoor
