HD107s/Apa107/Apa102/Sk9822 144LEDs/M Flexible Pixels Light LED Strip 144pixels

• Certification：SAA, FCC, CCC, UL, RoHS, CE
• Power：>30W
• Emitting Color：RGB
• Voltage：DC5
• IP Rating：IP20, IP33, IP65, IP67. IP68
• PCB Width：8mm, 10mm,

=== Base Info ===

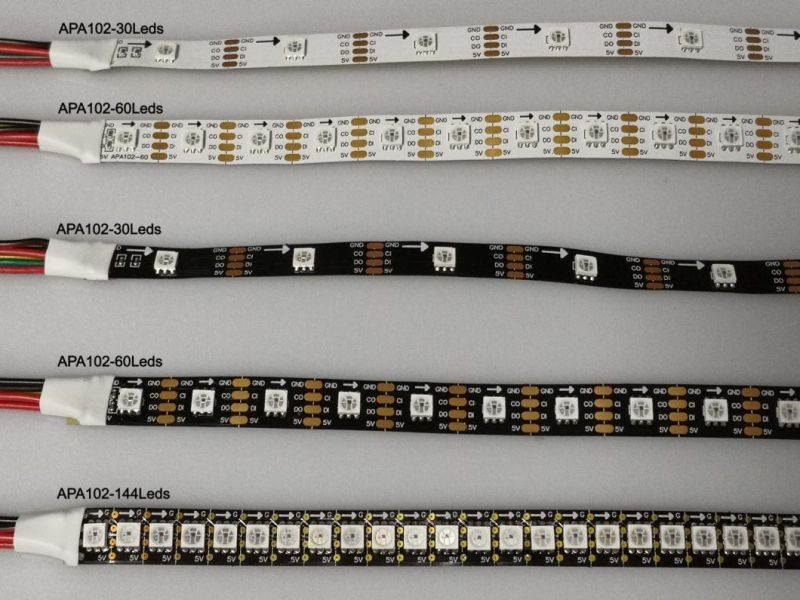

• LED Quantity Per Meter：30LED, 60LED, 72LED, 144LED
• IP Grade：IP20, IP33, IP65, IP67. IP68
• Transport Package：White or Brown Inner Box and K=K Carton
• Specification：5050, 020
• Trademark：ATA
• Origin：Made in China
• HS Code：9405409000
• Production Capacity：200000,Meter,Meters,Month

=== Description ===

Basic Info.

LED Quantity Per Meter 30LED, 60LED, 72LED, 144LED IP Grade IP20, IP33, IP65, IP67. IP68 Transport Package White or Brown Inner Box and K=K Carton Specification 5050, 020 Trademark ATA Origin Made in China HS Code 9405409000 Production Capacity 200000/Meter/Meters/Month

Product Description

PWM refresh rate: >26kHz, Oscillator frequency: 30Mhz
CMOS process, low voltage, low consumption
Synchronization of two-way
Choose positive output or negative RGB three-color LED output
8 bit(256 level) color set, 5bit(32 level) brightness adjustment
Build-20ma constant current output
With self-detection signal build in support for continuous oscillation PWM
output, can be maintained static screen
Product Description
1.Control IC included,supporting numerous color-change effects.
2.Absolutely addressable,each IC built inside RGB LED.
3.Each IC control one leds.
4.HD107S have 4 Wire input and output : Data ,Clock ,GND ,Anode, build in ic, double signal .
5.HD107S RGB LED chip is same with APA102 /APA107 with one IC for the three-colors RGB diming control strip and string, this ic use the CMOS process to provide three-colors RGB LED output driver to adjust the output with 256 grey scale and 32 brightness adjustment, HD107S RGB LED diodes with 2 signal output way, one is clock , another is data, the clock and data are synchronized, so that the crystal cascade piece of output movement is synchronized.
