Fricwel Auto Parts Friction Pad Sintered Clutch Racing Disc Copper Friction Pad Sintered Copper Racing Disc Factory Price 11004

• Part：Clutch Button
• Material：Bronze
• Classification：Friction Clutch
• Certification：ISO,TS16949:2002
• Usage：Car, Racing Cars
• Working Mode：Power Combining

=== Base Info ===

• Model NO.：11004
• Working State：No linkage
• Voltage：0
• Electromagnetic Clutch：0
• Size：298*172*3.5mm
• Transport Package：Box+Pallet
• Specification：GB,T 5764-1998
• Trademark：Fricwel
• Origin：China
• HS Code：8708931
• Production Capacity：300, 000 PCS,Month

=== Description ===

Basic Info.

Model NO. 11004 Working State No linkage Voltage 0 Electromagnetic Clutch 0 Size 298*172*3.5mm Transport Package Box+Pallet Specification GB/T 5764-1998 Trademark Fricwel Origin China HS Code 8708931 Production Capacity 300, 000 PCS/Month

Product Description

High performance Racing Disc 11004
Dim.: 298*172*3.5mm, 10 friction buttons 40 holes with 10 grooves.
Packaging: 5 PCS per box,
exterior with fiber board box pallet(non wooden box);


Related Products:

Products Performance And Advantage:
1. The coefficient of friction : 0.49-0.58
2. Low wearing rate, range from 0.05-0.18, quality can compete the US and European made products.
3. hardness: BNH 25+/- 5, suitable hardness and no harmful for the flywheel side.
4. formula include: regular formula, low wearing formula and iron based formula.
5. Passed bending test, less than 5% baring area on the steel back plate area.
6. Suitable for TATA, MACK truck and Leyland, fiat tractor disc assembly and racing cars.
7. Longer life period, almost 3 times then organic material and 2 times than common copper based materials.
8.The delivery date will be about 45 days after receiving the advance payment, and the packaging will be in strong export cartons+non-wooden pallets.

Dimensions And Specifications:

NO.	PART NO.	DESCRIPTION	GROOVES	DIMENSION(mm)
1	FR-314	6 Pads Racing Disc	6	215*155*6.0
2	785A	16 Holes	NONE	190*132*3.5
3	785B	16 Holes	NONE	190*132*3.0
4	8037	8 Pads 16 Holes	8	224*150*3.5
5	8037-SP	9 Pads 18 Holes	9	218*150*3.5
6	8039	9 Pads 18 Holes	9	215*150*3.5
7	8559	4 Pads 9 Holes	4	178*48*3.5
8	8656	8 Pads 16 Holes	8	212*150*3.5
9	909C	9 Pads 36 Holes	NONE	231*155*3.5
10	9035	9 Pads 36 Holes	9	245*152*3.5
11	9035A	9 Pads 36 Holes	9	240*152*3.5
12	9041A	8Pads 32 Holes	8	240*160*3.5
13	9875-1	16 Pads With 32 Holes	NONE	250*160*3.5
14	9875-2	8 Pads With 32 Holes	8	250*160*3.5
15	B10000	10 Pads 40 Holes	10	264*164*3.5
16	11004	10 Pads 40 Holes	10	298*172*3.5
17	1166A	10 Pads 40 Holes	10	276*164*3.5
18	2752-141-135	8 Pads 32 Holes	8	240*162*3.5

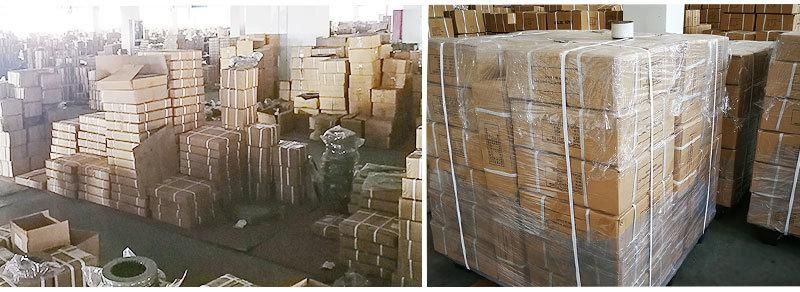

Company Environment:

Company Profile:
Founded in 1992, our factory covers an area of more than 20,000 square meters, with an annual output of about 1,000 tons. Our main business is the production and sales of auto parts products, such as clutch facings, copper clutch buttons, friction disc and related accessories. We are also one of the earliest friction material manufacturers in China.
Our factory has passed ISO9001 quality system certification. And we have various advanced lathes and processing equipments, as well as various engineering testing instruments,reaching the leading level in the domestic industry. Our products are exported to all over the world and well received by customers.

Why Choose Us?
1. Focus on friction materials production for more than 20 years.
2. Strict quality control system and professional inspection, OEM service avaliable.
3. One year quality gurantee since the date of delivery.
4. The product has passed CE, ISO and TS16949 certificates.
5. Professional online service team, quick response for customer message and question.
6. Sales markets covers North America, South Aemica, Europe,Asia, Middle east and Africa.
