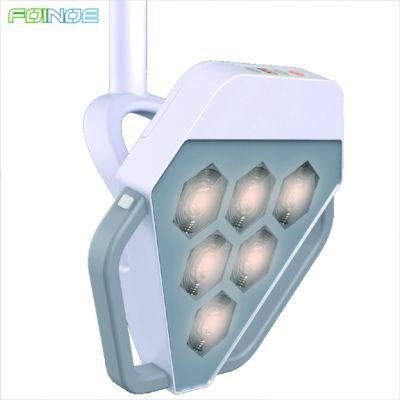

LED Dental Light for Dental Chair

• Teeth Whitening Method：Cold Light Whitening
• Applicable Departments：Oral Surgery
• Certification：ISO, CE
• Type：Oral Light
• Transport Package：Carton
• Trademark：foinoe

=== Base Info ===

• Model NO.：FN-LED. Dent1
• Origin：China
• Production Capacity：1000pieces,Month

=== Description ===
Storage and transportation environmentAmbient temperature5~30ºCTransport temperature-30~70ºCRelative humidity30~75%Relative humidity-10~+100%Atmospheric pressure70~106kPaAtmospheric pressure50~106kPa
Technical ParametersNet weight1.2kgGross weight1.5kg

Instructions

1. Press down the orange "On/Off" touch key on the right to switch on/off the Light;

2. Press down the "Brightness+" touch key at the middle to increase the brightness incrementally from Level 1 to Level 6;

3. Press down the "Brightness-" touch key to decrease the brightness incrementally from Level 6 to Level 1;

4. The Light has a memory function to maintain at the Brightness Level selected the last time when the Light is switched on again;

5. After powered on, the Light comes into the inductive switching mode, under which the Light will be activated/deactivated by a hand swinging within a range 0~15mm to the inductive point;

 6. Three shafts can be rotated freely, and the Light can be positioned at a wanted position by adjusting the angle of Handle;

7. The Handle can be removed for sterilizing at high temperature periodically;

8. Removal/installation of Handle: slide the button along the direction as shown by Arrow  in Figure 4, and move the whole Handle along the direction as shown by Arrow  to remove it. Plug the bottom end into the lower hole, and then plug the top end into the upper hole to install the Handle. Installation is completed when a click sound is heard.

Daily Service and Caution

Use the gas from the triplex dental jet, or soft cotton cloth or wet tissue, to clean the Light.

Caution: Don't use any corrosive liquid when clean any surfaces of the Light!
