Painting Oven Downdraft Baking Booth with Diesel Burner

Yumyth Electronic Tech Co., Limited / 2022-06-23

Painting Oven Downdraft Baking Booth with Diesel Burner

  • After-sales Service:Available
  • Warranty:12months
  • Type:Spray Booth
  • Certification:CCC, CE, CSA, GS, UL, SGS, ISO
  • Substrate:Steel
  • Brand:Hongyuan

=== Base Info ===

  • Model NO.:HY-CB40B
  • Coating:Painting
  • Airflow Direction:Lateral Undershot-type
  • Heating Mode:Diesel
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Color:Red, Blue, White
  • Panel:50,75mm EPS Foam Panel
  • Grate:2rows
  • Ramp:2pieces
  • Heating System:Gas, Diesel, Oil, Used Oil, Electric
  • Filter System:4-Stage Filtration System
  • Upper Light:Available
  • Side Light:Optional
  • Control Box:English Panel
  • Standard Voltage:380V,3f&220V,1f@50Hz
  • Control:Automatic
  • Drawing:Available
  • User Manual:Available
  • Installation Video:Available
  • Related Product:Large Truck Industrial Paint Spray Booth
  • Transport Package:Proper Packing Suitable for Sea Shipment
  • Specification:25cbm for a 20ft container loading.
  • Trademark:Hongyuan
  • Origin:Shandong, China
  • Production Capacity:100 Set Per Month

=== Description ===

Basic Info.

Model NO. HY-CB40B Coating Painting Airflow Direction Lateral Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Large Truck Industrial Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Painting Oven Downdraft Baking Booth with Diesel Burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Painting Oven Downdraft Baking Booth with Diesel Burner
ModelHY-CB40B
Outside Size(mm)7000(L)*4000(W)*3400(H)
Inside Size(mm)6900(L)*3900(W)*2700(H)
Front Door(mm)3000*2600(W*H)
Side Door(mm)700*2000(W*H)
Total power<17kW
Voltage status380V/3ph&220V/1ph@50Hz
Wall Panel50mm EPS foam panel
Ceiling panelGalvanized steel
Basement&floorRaised metal-base (300mm high) with 2ROWS of grid plates, 3rows of diamond plates.
IntakeTWO set of fan, motor: 4kW.
Exhaust One set of fan, motor: 4kW.
By-passPneumatic damper from spraying to baking cycle
Heating System(diesel)Italy Riello one-stage oil burner, electric heaters for option.
Filter System4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting Upper lights, 8units, 4*36W each.
Control System1set.

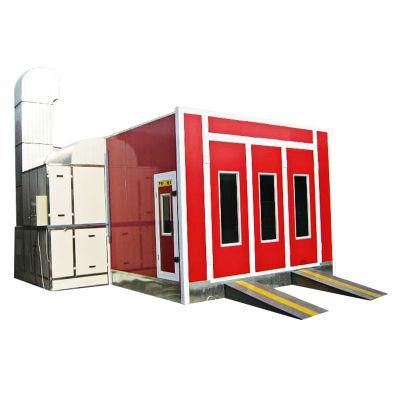

Picture of the Painting Oven Downdraft Baking Booth with Diesel Burner
Painting Oven Downdraft Baking Booth with Diesel Burner

details show of Painting Oven Downdraft Baking Booth with Diesel Burner
Painting Oven Downdraft Baking Booth with Diesel Burner


parts show of Painting Oven Downdraft Baking Booth with Diesel Burner
Painting Oven Downdraft Baking Booth with Diesel Burner

Painting Oven Downdraft Baking Booth with Diesel Burner
Painting Oven Downdraft Baking Booth with Diesel Burner



Production area and equipment for Painting Oven Downdraft Baking Booth with Diesel Burner
Painting Oven Downdraft Baking Booth with Diesel Burner

Package Show of Painting Oven Downdraft Baking Booth with Diesel Burner
Painting Oven Downdraft Baking Booth with Diesel Burner



Project case for paint booth
Painting Oven Downdraft Baking Booth with Diesel Burner
Painting Oven Downdraft Baking Booth with Diesel Burner

Certificate of our product and company

Painting Oven Downdraft Baking Booth with Diesel Burner
Our Team is serving you at any time
Painting Oven Downdraft Baking Booth with Diesel Burner

Send us inquiry about Painting Oven Downdraft Baking Booth with Diesel Burner
Painting Oven Downdraft Baking Booth with Diesel Burner
