LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen

Danyang Yun Kai Metal Products / 2022-06-27

LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen

  • Tube Chip Color:Full Color
  • IP Rating:IP65
  • Pixel Pitch:6mm
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption:330W,Sqm

=== Base Info ===

  • Model NO.:6mm
  • Pixel Density:27777dots,Sqm
  • Scanning Mode:1,8 Scan
  • Display Type:LED Video Display
  • Application:Advertising
  • Certification:CE, RoHS, UL, CCC, ETL
  • Module Size:192X192mm
  • Module Resolution:32X32dots
  • Cabinet Size:1152X1152X150mm
  • Cabinet Resolution:192X192dots
  • Screen Brightness:6000nits
  • Protection Grade:IP65
  • Compliance:Ce, RoHS , CCC,ETL,FCC
  • Input Power:100-240V ~ 50-60Hz
  • Transport Package:Plywooden Case
  • Specification:1152x1152mm
  • Trademark:CKGLED
  • Origin:China
  • HS Code:8528591090
  • Production Capacity:6000sqm,Month

=== Description ===
Pixel pitch6mmPixel configuration 1R1G1BModule size192*192mmPixel density27777dots/sqmModule pixel32*32dotsModule resolution1024pixelsDriving method1/8 constant driving

Cabinet specifications:Cabinet size1152mm*1152mm*150mmModule Qty36pcsCabinet resolution192*192dotsCabinet pixel36864dotsCabinet weight56kg power consumption(w/sqm)AVE.300 / MAX.900
Screen parameters:No.ParameterSpecification1Pixel Pitch6mm2Pixel Density27777pix/sqm3LED TypeSMD35354Viewing Angle(H)140° / (V)140°5Brightness≥6000cd/sqm6Drive Method1/8 scanning7Driving ICMBI51248Grey scale14bits9Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤50kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption300W/sqm16Max. Power Consumption900W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

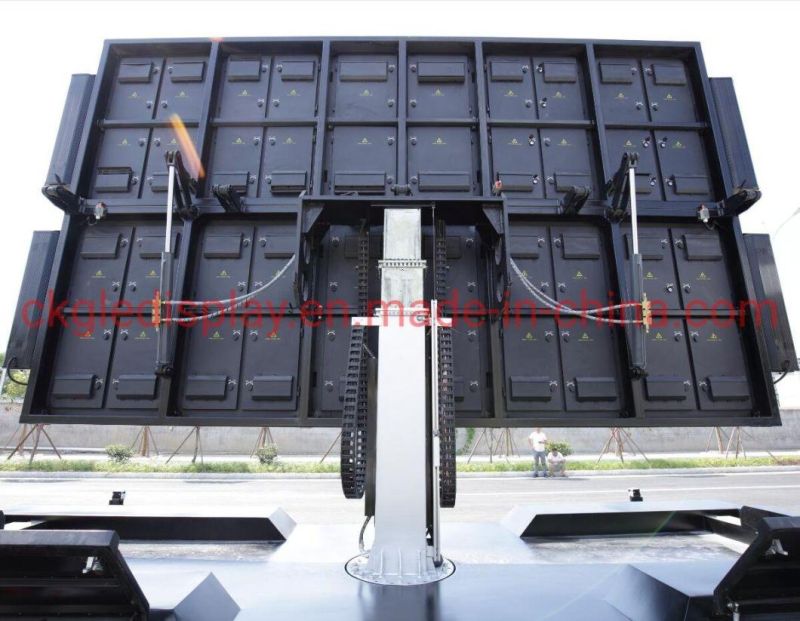

PRODUCT DETAILS:

LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen

LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
