CNC Automatic Fabric Cross Cutting Machine for Garments, Sofa Industry

• Voltage：380V
• Power Source：Electric
• Automatic Grade：Automatic
• Warranty：1 year
• Certification：CE, ISO
• Work Plate Size：2500mm * 1600mm

=== Base Info ===

• Model NO.：KJZD-1625
• Cutting Speed：1500mm , S
• Cutting Precision：0.1mm
• Cutting Thickness：0.1-50mm
• Material Fixed Type：VAC-Sorb (Vacuum Absorption)
• Working Voltage：110V , 220V , 380V
• Drive Motor：Delta, Panasonic, Yaskawa, FUJI Can Be Selected.
• Cetificate：CE,SGS; ISO9001,ISO14001,ISO18001
• Location Mode：Infrared Laser Lamp
• File Format：Dxf, Plt
• Transport Package：The Wooden Case
• Specification：KJZD-1625
• Trademark：kangjia
• Origin：China Jinan
• HS Code：8461500090
• Production Capacity：100 , Month

=== Description ===

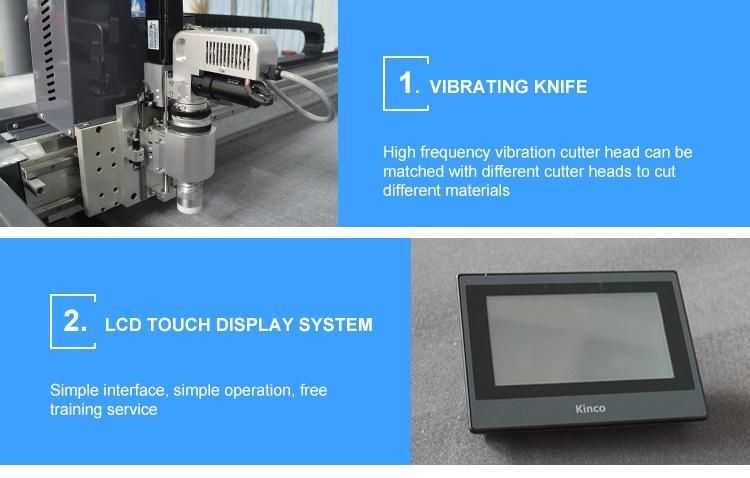

Multifunctional heads optonalVibration knife (oscillatory knife)Circular knife (round knife / rotary knife)Oblique knife (V-cut)Marking penPunching roller (round punching/v-punching/optional)Milling knife Drag knifePneumatic knifeProjector and camera optionalSafety device Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.Material feeding typeAuto feeding or manual feedingMaterial fixed typeVac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kwTranslational velocity 800-1500mm/sCutting speed Max. 1500mm/s (according to different cutting materials)Cutting thickess ≤60mm (according to different cutting materials)Cutting material Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.Repated accuracy≤0.1mmCutting typeMechanical vibration physical cuttingTransmission / driving systemMotor brand Panasonic, YASKAWA, Fuji, DeltaTransmission type / Guide rail Digital servo motor, linear guide, synchronous belt, rack/spline, ball screwInstruction systemHP-GL compatible formatControl system LCD touch screem  ( custom made)Voltage 110V/220V / 380V±10%; 50HZ, 60HZOther configuration Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump
Advantages of cutting machien:

1. Envioronmental protection, no fire & smoke when cutting.

2. Nice appearance: no raw edge and yellow edge after cutting.

3. High safty factor: mechanical anti-collision device / infrared radiation can assure the worker's safty.

4. High speed cutting: 1500mm / s;

5. High accuracy cutting: error 0.1 max.;

6. performance: stable & durable.

7. Low noise.

FAQ:

1. How do I choose the right machine for me?

You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

2.  Is it easy to operate?

Yes, it's very convenient. It supports multiple formats. In addition, our professional technical support personnel. At any time

3. Is the machine safe to operate?

Our machines are equipped with multiple protection measures to ensure that the operator's

4. What's the guarantee, in case the machine breaks down?

The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality problem under "normal use". .

5.  How's the payment?

TT,PAYPAL,Western Union(WU),and so on
