12V 10mm 30LEDs Low Power Consumption High Brightness SMD 5050 LED Light Strip

Qingdao Haochen Packing Co., Ltd. / 2022-06-27

12V 10mm 30LEDs Low Power Consumption High Brightness SMD 5050 LED Light Strip

  • Certification:FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
  • Power:7.2 W
  • Emitting Color:Changeable
  • Voltage:12V
  • IP Rating:IP20
  • Color Temperature:Red

=== Base Info ===

  • Model NO.:R030AX10A
  • LEDs/M:30
  • Lumen:600
  • Watt/M:6
  • Lumens/M:W,600 N,514
  • FPC Width:10mm
  • Transport Package:DHL
  • Specification:37*34*34cm
  • Origin:Shenzhen
  • HS Code:9405409000
  • Production Capacity:5000000

=== Description ===
ModelLED TypeLeds/mWatt/mVoltageLumens/mFPC WidthR030AX10A505030612/24VW/600 N/51410mmR060AX10A5050607.212/24VW1200 N102810mmR0C0AX15A50501207.612/24VW2400 N205615mmR060AX10B5050607.612/24VW1200 N 102810mmR0C0AX15B50501209.612/24VW2400 N205615mm
Environmental and Application Conditions:Life Span50,000 HDriving Methodconstant voltageAvailable ColorR/G/B/Y/WW/W/CWAngle>120°CWorking Temperature-40°C-50°CStore Temperature-50°C-60°CIP DegreeIP20-68
Wires & Series Connection Length:WiresInput end connect two-core RVV red and blackwire,Red:VI+;Black:VI-Stand Length In Serial Connection5mMaximum Length In Serial Connection≤5m
Dimension(Unit : mm)
12V 10mm 30LEDs Low Power Consumption High Brightness SMD 5050 LED Light Strip

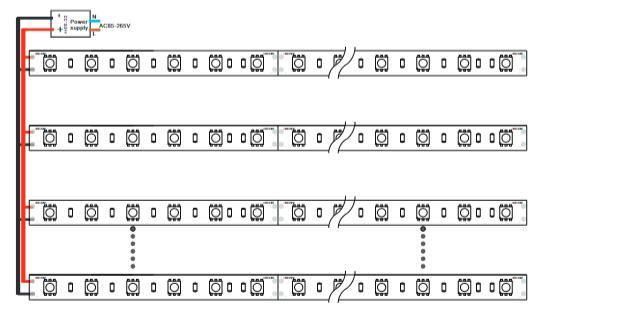

Connection Diagram(Unit:mm):
12V 10mm 30LEDs Low Power Consumption High Brightness SMD 5050 LED Light Strip
Wavelength Scope(nm/K):
Red lightGreen lightBlue lightYellow lightWarm whiteWhite lightCool white619-635512-528463-475584-5952700-33005500-7000>8000
Connection type:
Standard:2PIN-8mm,2PIN10MM,4PIN10MM
12V 10mm 30LEDs Low Power Consumption High Brightness SMD 5050 LED Light Strip
12V 10mm 30LEDs Low Power Consumption High Brightness SMD 5050 LED Light Strip
Notes
1.The thickness of the wires shall be adopted based on the possible current,products power,length of the wire extention(5meter at maximum as recommended) and the loss in the wirestransit at low voltage.
2.The both ends of extention shall be dealed with as waterproof.
3.Don't work under the situations of touching in static-electronics environments or light on.
4.The modules can be connected to 5m at maximum and no exceed.
5.Suggest choosing high-qualited switch power( have shortelectronics ,overvoltage andoverloading protection function etc).

12V 10mm 30LEDs Low Power Consumption High Brightness SMD 5050 LED Light Strip
