Chrome Steel UCP Series Pillpw Block Bearing/Insert Bearing/Bearing

• Aligning：Non-Aligning Bearing
• Separated：Separated
• Feature：Vacuum, Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed
• Rows Number：Single
• Raceway：Deep Groove Raceway
• Material：Gcr15

=== Base Info ===

• Model NO.：UC205, UC205-16, UC206, UC208, UC210, UC212
• Bearing Block Model：UC,UCP,Ucf,Ucfc,UCT,UCFL,Ucfb,Ucha,Ucpa
• Type：Pillow Block Bearing
• Series：UC UCP Ucf UCFL Ucfc Ucph Ucfa Ucpa SA Sb
• Company Scale：38000+Sqm
• Size：mm,Inch
• Housing Material：Cast Iron
• Hardness：HRC60-63
• Certificate：ISO,SGS
• Steel Ball Grade：G10
• Rotate Speed：2900-3500,Rpm
• Design：Standard Design
• Transport Package：Individual Box +Carton+Pallets
• Specification：ABEC-1, Z2V2 quality
• Trademark：FKD HHB FE or OEM Brands
• Origin：Hebei Province of China
• HS Code：8483200000
• Production Capacity：One Container,Per Day

=== Description ===

BrandFKD HHB FE OEMStructurePillow BlockModel NumberAnyBearing MaterialChrome Steel, Stainless SteelCage Materialcast ironSeals TypeOpenLubricationGrease, OilPrecisionP0, P6, P5, P4, P2ClearanceC1, C2, C0, C3, C4, C5VibrationV1, V2, V3, V4NoiseZ1, Z2, Z3, Z4ServiceOEMPlace  of OriginHebei, China(Mainland)SampleSmall Quantity of Free Samples




Series
UCP SeriesUCF SeriesUCT SeriesUCFA SeriesUCPA Series201202203203203202203204204204203204205205205204205206206206205206207207207206207208208208207208209209209208209210210210209210211 211210211212UCFC Series212211212213204213212213214205 213214215206UCPH Series214215216207204215216217208205216217218209206217218305210207218220306211208220305307212209305306308213210306307309214 307308310215UCHA Series308309311216204309310312217205310311313218206311312314 207312313 UCFL Series208313314UCFB Series202209314315204203210315316205204211316317206205212317318207206 318319208207 319320209208 320322210209 322324211210 324326212211 326  212
Trade Term
Shipping
1. For samples or small orders(less than 50kg), by express.
2. For urgent or medium orders(between 50kg and 200kg), by air.
3. For larger orders(more than 200kg), by sea.Payment
1. L/C at sight.
2. T/T
3. D/P

Why Choose Us
1. Free samples could be provided.
2. Customization services available.
3. All inquiries and messages will be replied in 24 hours.


Steel NO.     C(%)          Si(%)            Mn(%)         S(%)           P(%)            Cr(%)

Gcr15      0.95-1.05     0.15-0.35        0.20-0.40     ≤ 0.020       ≤ 0.027         1.30-1.65

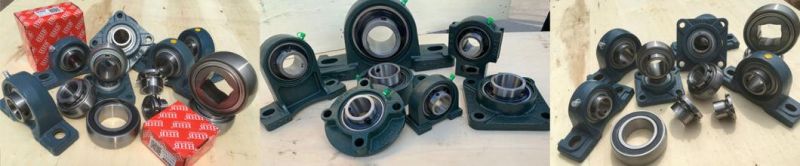

Pillow block, also known as plummer block] or bearing housing, is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.

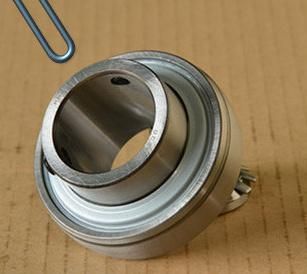

Pillow Block Bearings are composed of a single row deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support.

Pillow Blocks are for mechanical equipment, like agricaltural, metallurgical, textile and printing machinery.
