Indoor Advertising P5 Full Color Wall Mounted LED Display Screen

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：5mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：40,000 dots , m²
• Scanning Mode：1,8 Scan

=== Base Info ===

• Model NO.：P5
• System Operating Platform：XP,Win7,Win10,Mac
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Theater
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Steel,Aluminium
• Repair Access：Front Service
• Brightness：>1000 Nits
• Refresh Rate：>1920 Hz
• Grey Scale：16 Bits
• LED Chip：Epistar,CREE
• LED Brand：Nationstar,CREE
• Driver IC：Mbi5124,Mbi5252,Mbi5153
• Power Supply：MW,G-Energy
• Connector：Lk,Nuetrick,Seetronic,Invisible
• Transport Package：Plywood Cases
• Specification：640x480mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：4000m2,Month

=== Description ===
Overview Product Description

Ph5 Indoor led full color display screen for advertising 640*480mm, use for commercial advertising, cctv lives, theater, shopping mall, stadium etc.

- Light weight cabinet
- Fast installation and front service design
- High contrast rate
- High refresh rate >1920HZ
- Stable driver IC solution.
- Long life span.

Item

Indoor Full Color Fixed Installation LED Display Screen

Model Number

IF-P5

Pixel Pitch

5mm

Pixel Density(pixels/M2)

40000p

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar

Module Size(mm)

320x160mm

Module Resolution(pixels)

64*32p

Min.Viewing Distance(m)

5

Brightness(nits)

1000nits

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/8 Scan

Protection Level

IP31

Cabinet Size(mm)

640x480mm, 960x480mm (Optional)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

A complete set of Ph5 Indoor led full color display screen for advertising 640*480mm including led modules, power supplies, cabinets, control system, etc, LEDventure provide a whole compete solutions for customers.

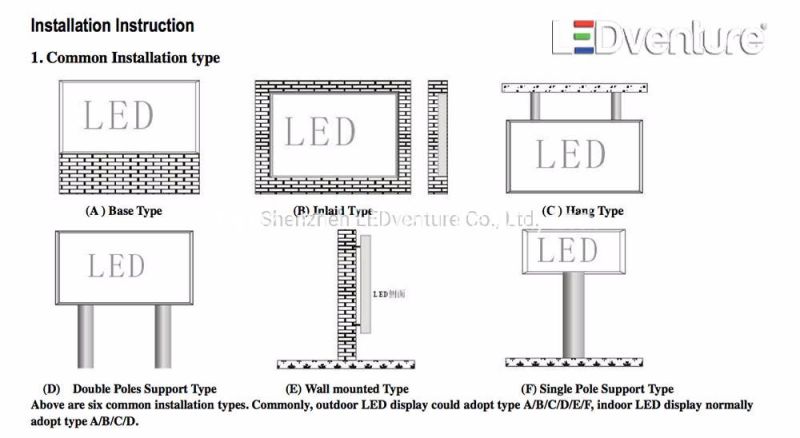

Ph5 Indoor led full color display screen for advertising 640*480mm installation usually mounted on the wall, and hanging or fixed on the structure etc, we provide a compete set of design, electric diagrame, and sending out engineer for installation if necessary.

Our Ph5 Indoor led full color display screen for advertising 640*480mm pass CE, EMC, UL FCC tests, meet the standard of the local market requires
