High Resolution P2 Indoor Car Show LED Advertising Poster

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：2mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：250000 Dots,M2
• Scanning Mode：1,32 Scan

=== Base Info ===

• Model NO.：PS-P2S
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet：Alu
• Weight：35kg,PCS
• Brightness：1000nits
• Refresh Rate：>1920Hz
• Viewing Distance：2meters
• Service Solution：Front Service
• Installation：Standing
• Voltage：AC110-240V
• Contrast Rate：3000:1
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：MW
• System：Nova
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：640x1920mm (Display Area)
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

=== Description ===

Item

Factory Price Indoor Full Color LED Display Screen Poster for Media Advertising

Model Number

P2 P2.5mm

Pixel Pitch

2mm 2.5mm

Pixel Density

160000-250000 pixels/M2

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module Size

160x160 mm

Module Resolution

64*64 pixels (P2.5)

Min.Viewing Distance

2.5-3 meters

Brightness

1000-3000 nits

Viewing Angle

≤140°

Average Power Consumption

400 W/M2

Scan Mode

1/32 Scan

Protection Level

IP31

Cabinet Size

480x1920mm, 640x1920mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization



Part 5: Installation methods, indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

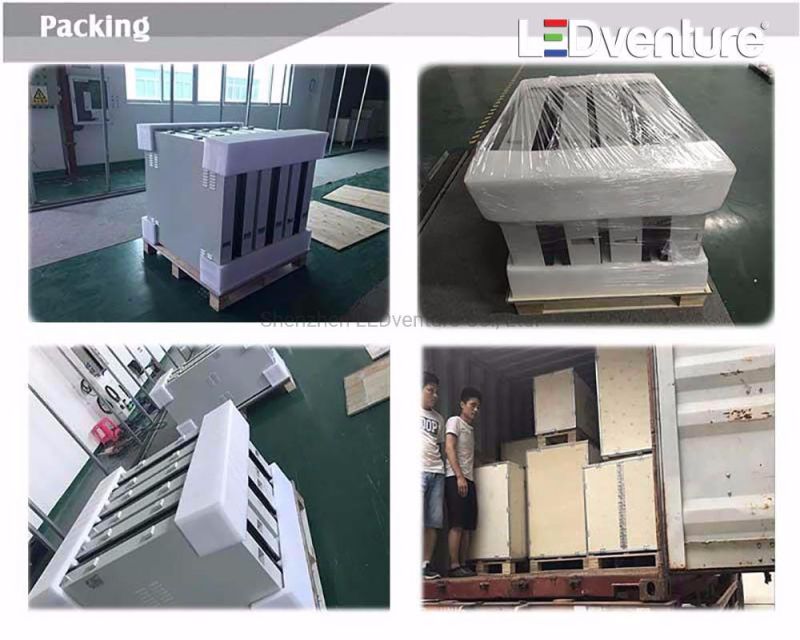

Part 6: Packing information by plywood cases, packing well and easy to load



Part 7: Certificates

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure



Part 9: LED display screen installation cases

Most of our led display exported to Europe with high standards, and small percent to USA and Asia
