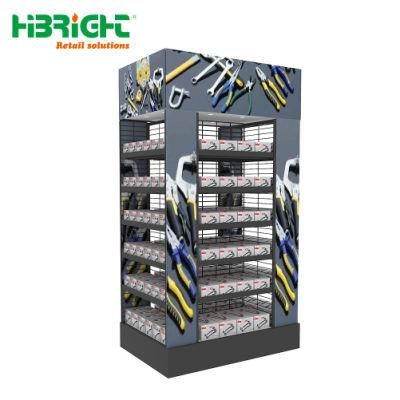

4 Sides Steel Mesh Display Shelf with Billboards Around for Supermarket and Grocery Store

• Material：Steel
• Style：Backplane Style
• Side Number：Double Sided
• Weight：OEM, 80kg, 100kg, 120kg etc Per Shelf
• Rotary：Fixed

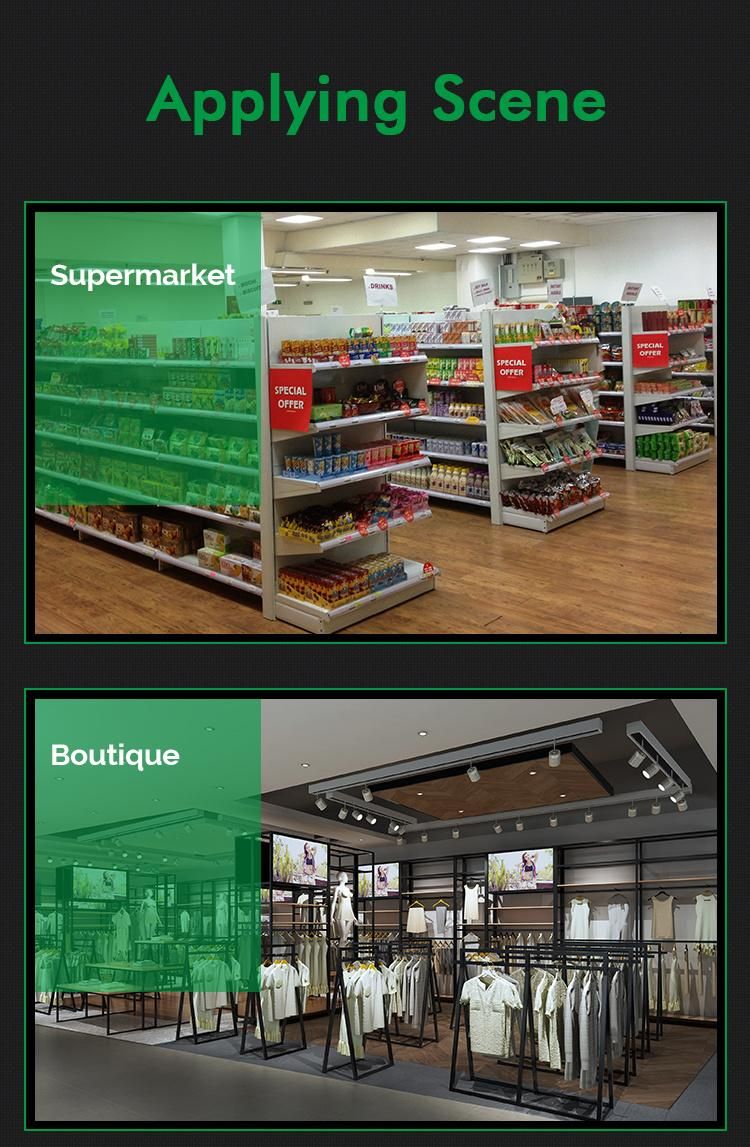

• Usage：Shop, Supermarket, Drug Store, Convenient Store

=== Base Info ===

• Model NO.：HBE
• Customized：Customized
• Condition：New
• Color：Ral Customized
• Design：Over 20models
• OEM：Available
• New Mold Developing：Available
• Transport Package：Standard Export Carton or Bulk Packing
• Specification：Customized
• Trademark：Highbright
• Origin：Jiangsu, China
• HS Code：3926909090
• Production Capacity：6000PCS Per Month

=== Description ===

Model

Supermarket Back board shelf

Post or upright size

40*80

30*60

Side(oneside or inside

One side

Double side

One side

Double side

Specification

1200*550*2000

1200*1100*2000

1200*450*1800

1200*900*1800

Thickness of board

0.6mm

0.6mm

0.5mm

0.5mm

Thickness of post or upright

1.8mm

1.8mm

1.35mm

1.35mm

Thickness of back panel

0.4mm

0.4mm

0.4 mm

0.4mm

Capacity(each layer)

120-150kg

150-200kg

100-120kg

120-150kg

Quantity of layers

5

5 each side

5

5 each side

Cubic meter

0.088

0.163

0.068

0.129

weight

53.14kg

92.95kg

36.08kg

65.41kg

color

Wight or others

Wight or others

Wight or others

Wight or others

Model

Supermarket Back board shelf

Post or upright size

40*60

30*70

Side(oneside or inside

One side

Double side

One side

Double side

Specification

1200*550*2000

1200*1100*2000

1200*450*1800

1200*900*1800

Thickness of board

0.6mm

0.6mm

0.5mm

0.5mm

Thickness of post or upright

1.8mm

1.8mm

1.35mm

1.35mm

Thickness of back panel

0.4mm

0.4mm

0.4 mm

0.4mm

Capacity(each layer)

100-150kg

100-200kg

100-120kg

120-150kg

Quantity of layers

5

5 each side

5

5 each side

Cubic meter

0.088

0.163

0.068

0.129

weight

49.14kg

88.95kg

39.08kg

68.41kg

color

Wight or others

Wight or others

Wight or others

Wight or others

Package:

Our normal packing solution(free)

Suggest packing solution:

Shelf panel:carton box

Upright: bulk packing/wooden frame

Back panel:carton box

Bracket:carton box

Feet:carton box

Gondola cover:carton box

Shelf panel:wooden pallet

Upright:wooden pallet

Back panel:wooden pallet

Bracket:wooden crate

Feet:wooden pallet

Gondola cover:wooden pallet

OEM work instruction:

Upright/Pillar: 60x30x1.5-3.0mm
                70x30x1.5-3.0mm
                80x30x1.5-3.0mm
                60x40x1.5-3.0mm
                80x40x1.5-3.0mm
Panel Thickness: 0.7/0.8/0.9/1.0/1.1/1.2/1.3/1.4/1.5mm
Shelf Thickness: 0.5/0.6/0.7/0.8/0.9/1.0mm
Bracket Thickness: 1.5/2.0/2.5mm
Plinth and Top Cover: 0.5/0.6/0.7/0.8/0.9/1mm
Price list tag: different colour available
