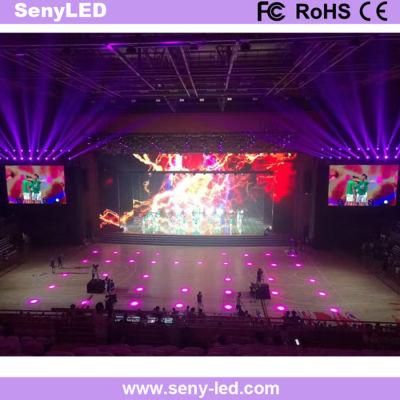

Full Color Indoor/ Outdoor Video Panel P4.8 LED Display for Movable Application

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：4.81mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display
• Average Power Consumption：550W,M2

=== Base Info ===

• Model NO.：SY-P4.81-13S
• Pixel Density：43222 Dots,M2
• Scanning Mode：1,13 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, FCC
• Cabinet Size：500mm X 500mm or 500mm X 1000mm
• LED Lamp：Kinglight or Nationstar
• Power Supply：G-Energy or Meanwell
• Control System：Linsn or Novastar
• Transport Package：Wooden Box or Flight Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, China.
• HS Code：8528591090
• Production Capacity：5000sqm,Month

=== Description ===
Full Color Indoor/ Outdoor Video Panel P4.8 LED Display For Movable ApplicationS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LEDSMD2525600-800mcd620-625nm140º/120º3Green LEDSMD25251800-2000mcd520-525nm140º/120º4Blue LEDSMD2525400-600mcd470-475nm140º/120ºModule Specification1Pixel Pitch4.81mm2Pixel Configuration1R1G1B3Module Resolution52 x 52 pixels4Module Pixles2704 pixels5Module Size250mm X 250mmCabinet Specification1Cabinet Size(W X H X D)500mm x 500mm x 90mm2Cabinet Resolution(dot)104 x 104 pixels3Module Quanity (pcs)4pcs4Cabinet Pixels10816 pixels5Pixel Density43222 pixels/m26Cabinet MaterialsDie Casting Aluminum Cabinet for rental purposeWhole Screen Specification1Screen Brightness≥6000cd/m22Driving Method1/13 scan3Best Viewing Distance4.81m - 40m4Max. Power Consumption1000W/m25Average Power Consumption400W/m26Gray Level8bits input, 4096 levels(212)7Display Color16M8Frame Frequency≥60Hz9Refresh Frequency≥600Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleIP6517Screen Plainness<±1mm18Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz19Working TemperatureTemperature: 0 Celsius~+40 Celsius20Storage TemperatureTemperature:-30 Celsius~+50 Celsius21HumidityHumidity:10%~90% RH22Control ModeSynchronous display with control PC by DVI23Control SystemDVI video card + full color control card + fiber system( optional)24Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.25InterfaceStandard Ethernet26Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100mProject cases:





Packaging and delivery:


Certificate:

After-sale service:
1.We offer two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training which includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material cost, free of labor cost.
5.Full set of documents free of charge, which includes installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with us, we will response in 24 hours. In order to shorten the maintenance time, we will provide some spare parts such as power and chips etc.
