High Brightbess DC24V 320LEDs Flexible COB LED Strip
Shanghai Legend Fung Industrial Co., Ltd. / 2022-06-27
- Certification：RoHS, CE
- Power：11-15W
- Emitting Color：Changeable
- Voltage：24V
- IP Rating：IP20
- Wattge：12
=== Base Info ===
- Model NO.：DV-COB-D320-W-12V,24V
- LED Numbers/M：320
- Color：White, Red, Yellow, Blue, Green
- Life(H)：25, 000hours
- Transport Package：Carton
- Specification：ce, rohs
- Trademark：Devry
- Origin：Made in China
- HS Code：9405409000
- Production Capacity：500, 0000,Year
=== Description ===
Reliability Test Items and Conditions:
↑ ↓
100°C 15min

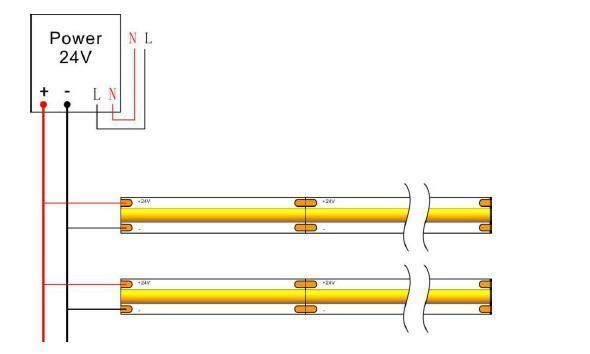

Connection diagram:
6.Accessories:
7.Installation Instruction:- Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it can not be fully loaded to ensure that the power supply works at the correct and stable voltage.
- We suggest 5meters/roll for the led strip, If it is over 5meters length, the brightness of LED will vary greatly. If the customer can accept that, length can be made over 5meters.
- Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.
- Please pay special attention to the minimum bending diameter of the led strip is 60mm. so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damage of the strip.
- In order to ensure waterproof and anti-corrosive function, after the power line is screwed into the connector, it is suggested to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.
- The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
- It is suggested to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection)
8.Application:
9.Package:
10.QA&QC:
11.Transporation:
What is COB Led Strip?
The Full Name of the COB Led Strip is: Chip on Board, Which is a Method of Directly Binding the Led Chips to the PCB Board.
The Ordinary Light Strip is Made of Chip on the frame, and Made Into SMD. Then Put the Smd on the PCB. COB led strip Saves a Lot of Space on PCB and Cost.
Because It Saves Space, More LED Can Be Added. Generally, The 2835 Strip Light Can Hold a Maximum of 240 SMD Per Meter, and the COB Can Hold 640 Chips or More.
And Because the Cost of Mounting the Chip on the frame is Saved, the Price of the COB Led Strip is Much Cheaper Than the Same Number of Led Strips.
12.FAQQ1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5-7 days, mass production time needs 1-3 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: All of our products can have 2 or 5 years quality warranty.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights in next order.
