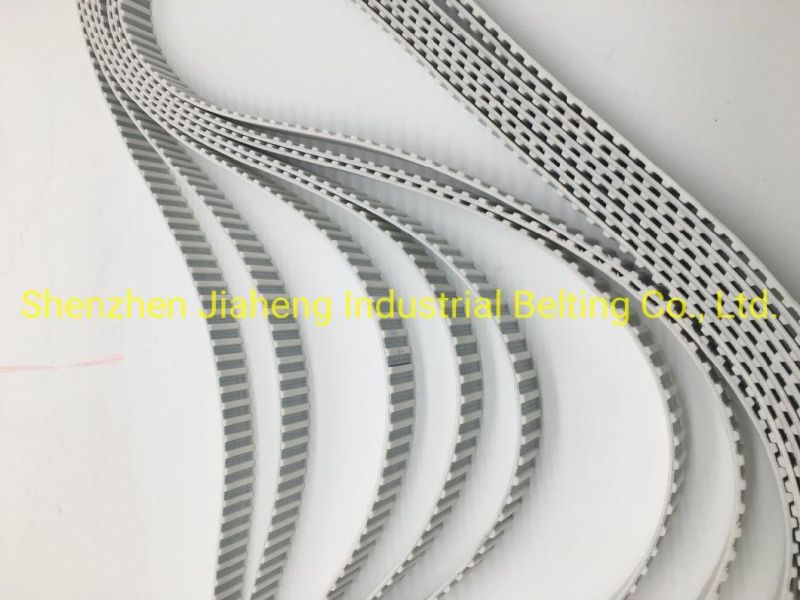

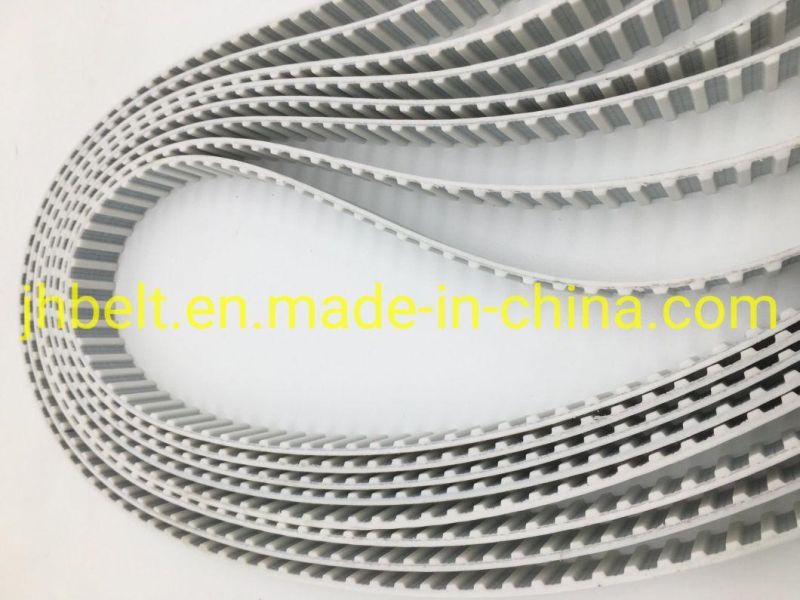

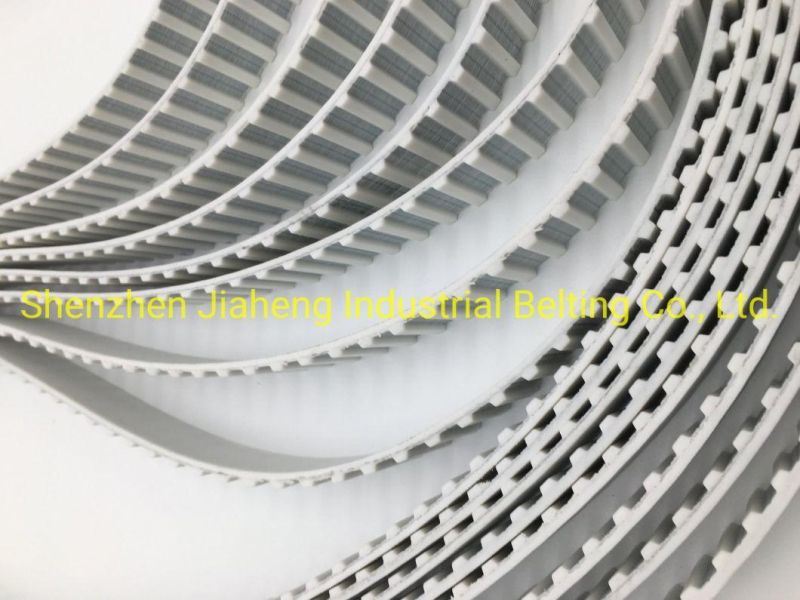

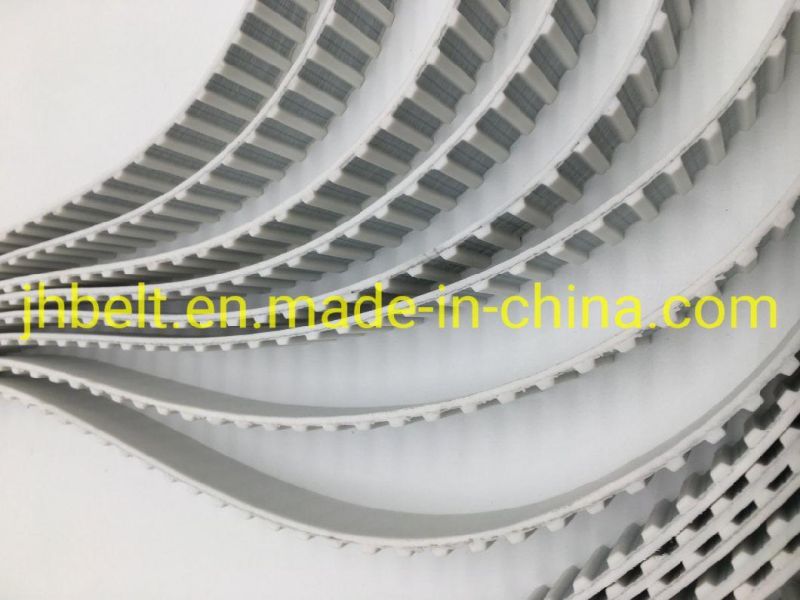

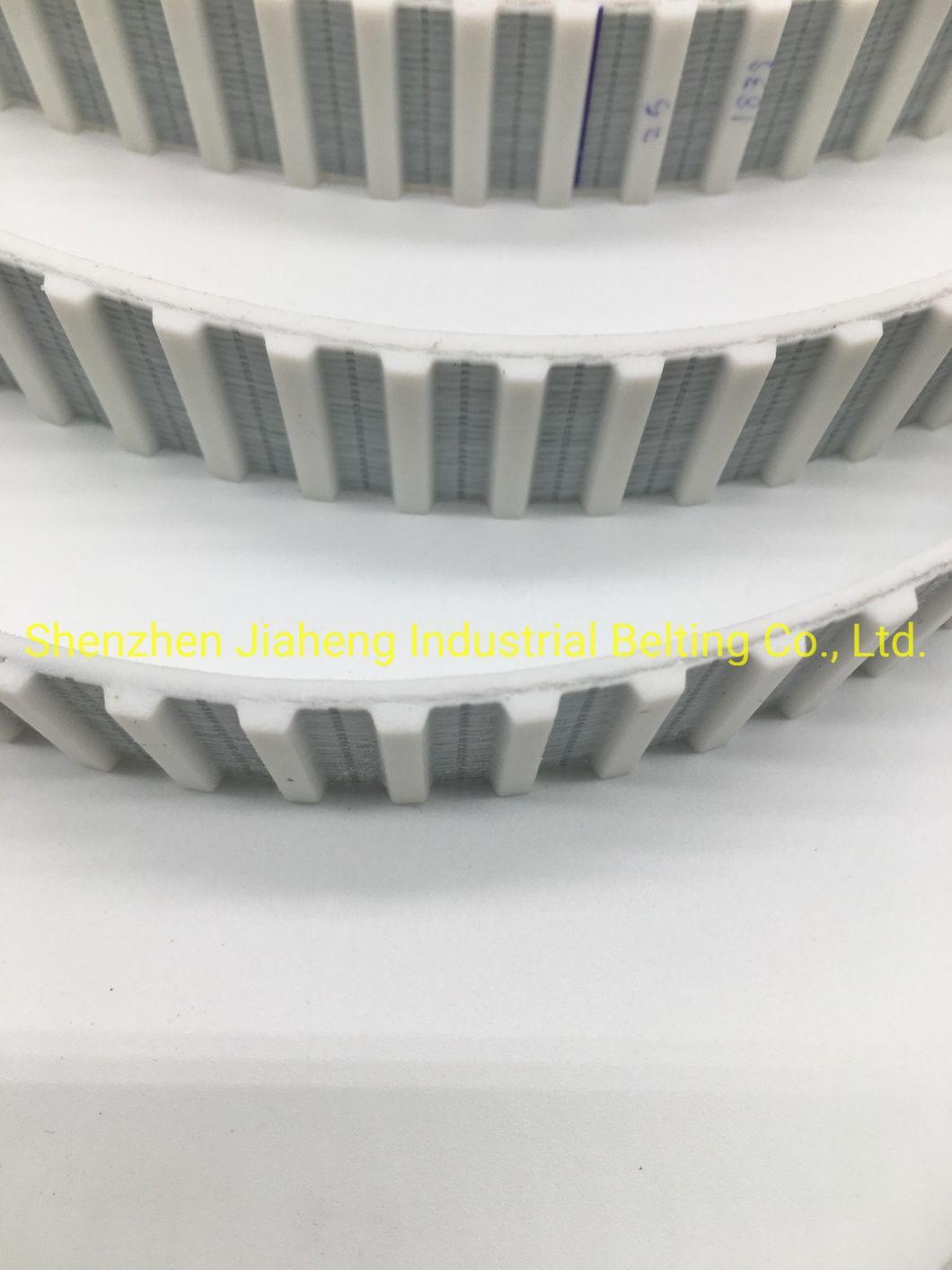

Toothed Belt Truly Endless TPU 1838.3L- 25mm Steel Cord

• Standard or Nonstandard：Standard
• Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
• Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
• Tensile Strength：Strong
• Material：Rubber
• Type：Toothed Belt

=== Base Info ===

• Model NO.：1838.3L- 25mm
• Pitch：9.525 mm
• Color：Black
• Cord：Steel
• Max Width：150mm
• Transport Package：Export Standard
• Specification：L
• Trademark：UNI Belting
• Origin：Shanghai China
• HS Code：4010390000
• Production Capacity：20000000 Meters

=== Description ===
40

Model: L

• Pitch:9.525 mm
• Cord:Steel, Kevlar
• Max production width:150mm
• Power transmission: ≤ 30Kw
• Rotational speed: approx.10000RPM
• Peripheral speed: approx.60MS^-1
• Timing pulleys:from teeth= 10

Mechanical Features

• Consistent dimensional stability
• Low pre-tension
• Low noise
• High abrasion resistance
• Low maintenance
• High flexibility
• The max linear velocity can reaches 80m/second

Typical applications:

• Food processing
• Office automation equipments
• Swimming pool cleaning robots
• Automatic sliding doors and garage opening system
• Automated handling devices
• Linear drivers
• Positioning system
• Electric appliance I
• Textile Industry
• Wood Machine Industry
• Stone and marble Industry
• Paper and Printing
• DIY equpiments
• Chemist and pharmaceutical industry
• Robotic arms
•

Type

Pitch Pb(mm)

Tooth height ht(mm)

Belt thickness hs(mm)

XL

5.080

1.27

2.30

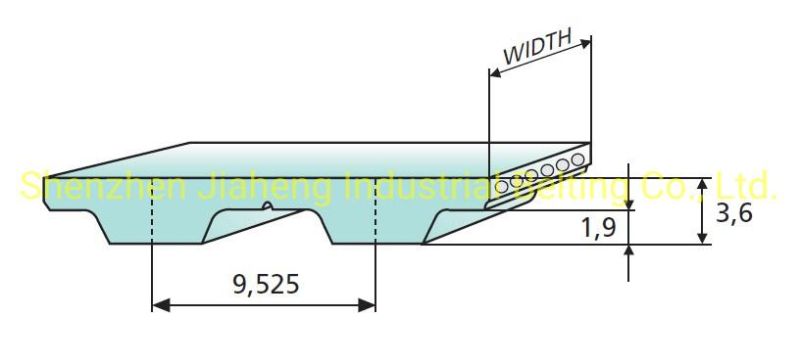

L

9.525

1.91

3.60

H

12.70

2.29

4.30

3M

3

1.17

2.4

5M

5

2.06

3.8

8M

8

3.36

6.00

T5

5

1.20

2.20

T10

10

2.50

4.50

AT5

5

1.20

2.70

AT10

10

2.50

5.00
