Digital LED Display Screen Outdoor Full Color P10/P16/P20DIP for Advertising

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：200W,Sqm

=== Base Info ===

• Model NO.：10mm
• Pixel Density：10000dots,Sqm
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：160X160mm
• Module Resolution：16X16mm
• Cabinet Size：960X960mm
• Cabinet Resolution：96X96dots
• Screen Brightness：10000nits
• Protection Grade：IP65
• Compliance：Ce,CCC,FCC,RoHS,EMC,ETL
• Service：Rear Service, Front Service
• Controller：Nova, Linsn
• Transport Package：Wooden Case
• Specification：960x960mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

=== Description ===
Pixel pitch10mmModule size160mm*160mmModule pixel16dots*16dotsDriving methodstatic constant drivingPixel configurationDIP 1R1G1BPixel density2500 dots/sqmModule resolution128dots


Cabinet specifications:Cabinet size960mm*960mm*150mmCabinet resolution96dots*96dotsCabinet weight46kgModule Qty36pcsCabinet pixel9216dotspower consumption(w/sqm)AVE.200 / MAX.600

Screen parameters:No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness≥6000cd/sqm6Drive Methodstatic constant current scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥3500 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤55kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption200W/sqm16Max. Power Consumption600W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

LED Display panel photo:

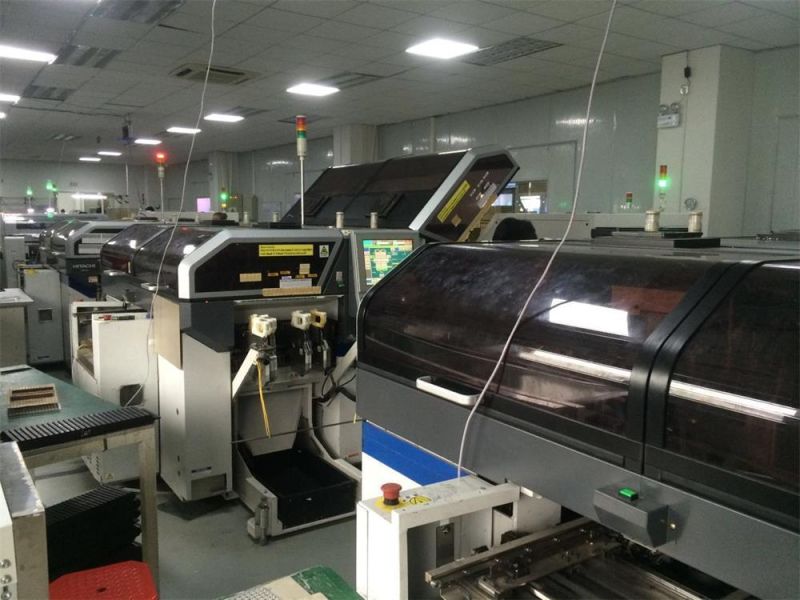

Factory photos :





Used for different intallation:







Certificates:


Wooden case Package:
