LED Guidance Screen Vms LED Display Screen P16 Outdoor Brightness LED Display Screen Sign

• Tube Chip Color：Dual-color
• IP Rating：IP65
• Pixel Pitch：16mm
• Pixel Configuration：2r1g
• Display Function：Image & Text Display, Text Display, Traffic Sign
• Average Power Consumption：100W,Sqm

=== Base Info ===

• Model NO.：VMS P16
• Pixel Density：3906 Dots,Sqm
• Scanning Mode：Static Scan
• Display Type：Traffic Sign
• Application：Traffic
• Certification：CE, RoHS, FCC
• Module Resolution：16*8
• Brightness：Above 8000CD,Sqm
• Gray Scale：Red Green 256 Grade
• Viewing Angle：Above 70,35 Degree
• LED Type：346DIP
• Transport Package：Carton, Wooden Carton, Flight Case
• Specification：256x128mm
• Trademark：Seekstarled
• Origin：China
• HS Code：8528591090
• Production Capacity：1000 Sqm,Month

=== Description ===
 Traffic Guidance Outdoor LED DisplayItemP8P10P16P20P25P31.25Piexl Pitch 8mm10mm16mm20mm25mm31.25mmLED Type LED346DIP346DIP346DIPØ5Ø5Ø5Life 100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours100,000 hoursConfiguration 2R1G2R1G2R1G2R1G2R1G2R1GModule Size 256x128320x160256*128320x160200x200250x125Module Resolution 32*1632*1616*816*88*88*4Pixels Density (dots)15625100003906250016001024Brightness (cd/sqm)≥8000≥8000≥8000≥8000≥8000≥8000Brightness Adjustment 32 / 25632 / 25632 / 25632 / 25632 / 25632 / 256Scan Mode 1/4scan1/4scanstaticstatic1/4scan1/4scanView Angle ≥70° / 35°≥70° / 35°≥70° / 35°≥30° / 30°≥70° / 35°≥70° / 35°Viewing Distance 10-100m10-100m10-100m10-100m10-100m10-100mBrightness Control Red, Green 256 Grade / eachRed, Green 256 Grade / eachRed, Green 256 Grade / eachRed, Green 256 Grade / eachRed, Green 256 Grade / eachRed, Green 256 Grade / eachPower Supply 12-24V / 220V12-24V / 220V12-24V / 220V12-24V / 220V12-24V / 220V12-24V / 220VMax. Power (W/sqm) 300300200200200200Ave. Power (W/sqm) 10010070707070Protective Grade IP65IP65IP65IP65IP65IP65Working Temperature-25ºC ~ +60ºC-25ºC ~ +60ºC-25ºC ~ +60ºC-25ºC ~ +60ºC-25ºC ~ +60ºC-25ºC ~ +60ºCWorking Humidity 10% - 95%10% - 95%10% - 95%10% - 95%10% - 95%10% - 95%Cabinet Size 1024*768960*9601024*768960*960800*8001000*1000Cabinet Material IronIronIronIronIronIronCabinet Weight 48kg50kg48kg50kg48kg48kgControl Mode Asynchronous Control ModeAsynchronous Control ModeAsynchronous Control ModeAsynchronous Control ModeAsynchronous Control ModeAsynchronous Control Mode
Features:
1.  LED induction screen is designed with double-layer box board, which has good heat dissipation and high reliability.
2.  The use of full plastic modular structure, high protection grade, more durable, more reliable products;
3.  Adopt parallel current equalization, energy-saving and efficient power supply, support N+1 power backup, further improve reliability;
4.  Non-traditional signal transmission technology is adopted to reduce failure rate and improve communication reliability.
5.  Each display module of LED induction screen is equipped with intelligent processing chip, which can operate independently and feedback fault independently, making it safe and reliable to use;
6.  LED induction screen adopts Linux operating system controller based on ARM, no crash risk, ensure communication security;
7.  Intelligent control system, support real-time fault monitoring, monitoring center can master the operation of information board at any time, to ensure road traffic safety;
8.  Support four primary colors randomly matched display, highlighting, high transparency.
9.  Exquisite structure design, each luminous pixel luminous uniform, no Mosaic phenomenon;
10. Support manual and automatic schedule intelligent brightness adjustment.
Cabinet Details:
Cabinet Installation:

Application:

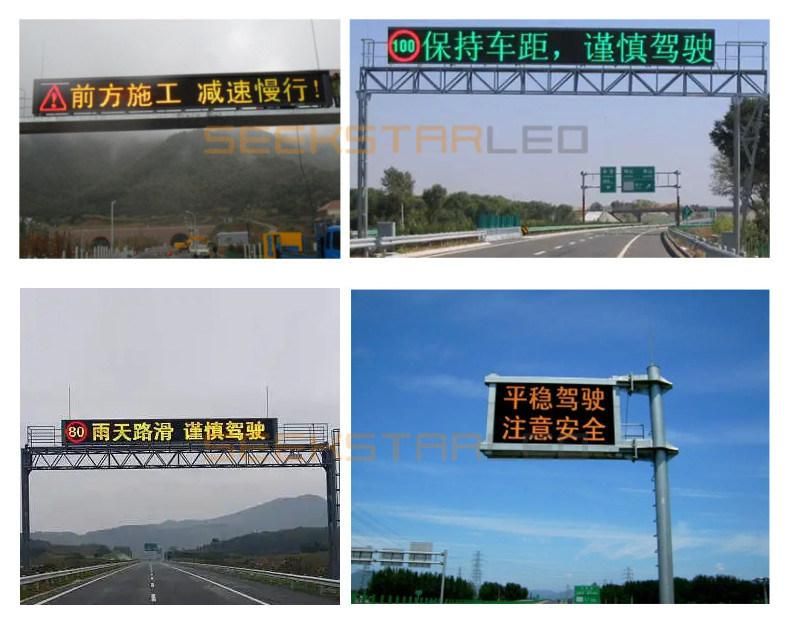

It is widely used in highway tunnel, urban road, dense section of road network of main trunk line, urban road, street, airport, wharf, station and other traffic guidance and related application fields.
