on-7445 Manual Safety Lock Release Alignment 4 Post Car Lift/Auto Lift/Car Hoist/Auto Hoist

Hongsheng Gift Limited / 2022-06-23

on-7445 Manual Safety Lock Release Alignment 4 Post Car Lift/Auto Lift/Car Hoist/Auto Hoist

  • Type:One Cylinder Hydraulic Lift
  • Lifting Capacity:4.5T
  • Driving Type:Hydraulic
  • Driving Motor Number of Mechanical Lift:1
  • Condition:New
  • Brand:Eounice

=== Base Info ===

  • Model NO.:ON-7445
  • Design:Four Post
  • Trademark:Eounice
  • HS Code:8425429000
  • Production Capacity:10000

=== Description ===

Basic Info.

Model NO. ON-7445 Design Four Post Trademark Eounice HS Code 8425429000 Production Capacity 10000

Product Description

on-7445 Manual Safety Lock Release Alignment 4 Post Car Lift/Auto Lift/Car Hoist/Auto Hoist

on-7445 Manual Safety Lock Release Alignment 4 Post Car Lift/Auto Lift/Car Hoist/Auto Hoist

Manual safety lock release, alignment 4 post lift.

FEATURES
  1. 4,500Kg (10,000LBS.) lifting capacity.
  2. Reliable mechanical self-lock safety locking system.
  3. Manual safety lock release.
  4. Max height limit switch to ensure the cylinders work within the stroke.
  5. Skid proof diamond and low-profile platforms.
  6. Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by the second safety device..
  7. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  8. Structural parts are sprayed with imported powder, using imported spraying equipment spraying and high temperature curing, which can ensure strong adhesion, bright color and beautiful looking.
  9. Optional manual or pneumatic rolling jack.
TECHNICAL DATA
ModelLifting CapacityLifting TimeOverall HeightLifting HeightOverall Length (Inc.Ramps)Overall Length
(No Ramps)
Overall WidthWidth Between ColumnsGross Weight
ON-74454,500kgs (10,000LBS)≤60S2120mm
(83 7/16")
1770mm
(69 11/16")
5512mm
(217")
4600mm
(181 1/8")
3350mm
(131 7/8")
3050mm
(120 3/4")
1150kgs
(2,535LBS)

STRENGTHS:
  1. The minimum ground height is 180mm(7 1/16"), which can effectively avoid the phenomenon of low chassis car hanging chassis.
  2. The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively ensure the basic level of the two runways in the locked state and is less affected by ground factors.
  3. There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be effective to ensure the safety of use.
  4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

DIMENSION:
on-7445 Manual Safety Lock Release Alignment 4 Post Car Lift/Auto Lift/Car Hoist/Auto Hoist

on-7445 Manual Safety Lock Release Alignment 4 Post Car Lift/Auto Lift/Car Hoist/Auto Hoist

 =====================================================================================================

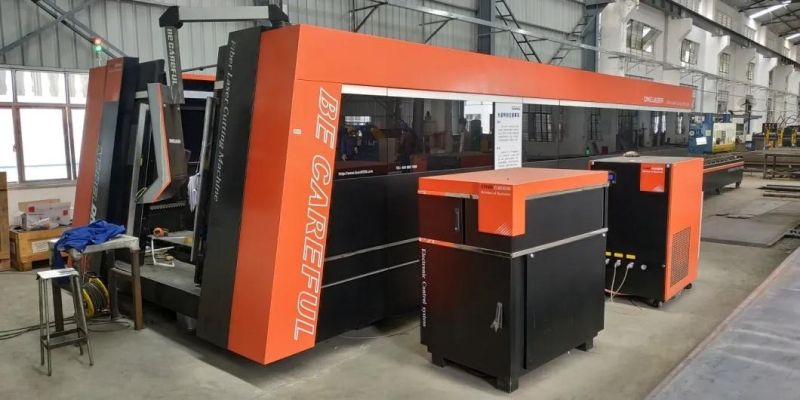

Seamless Laser Cutting
  1. High Accuracy and Precision Cuts
  2. Causes No Damage Or Warping, Even to Thin Materials
  3. Higher Sheet Utilization with Less Waste & Low Power Consumption
on-7802le MID Rise Scissor Lifts-Electric Safety Lock Release,

Robotic Welding Technology
  1. Seamless Appearance
  2. High Strength
on-7802le MID Rise Scissor Lifts-Electric Safety Lock Release,
Powder Coating
  1. Imported Powder and Sprayers
  2. High Adhesion
  3. Clear Powdering Effect
  4. Aesthetically Smooth Appearance.
on-7802le MID Rise Scissor Lifts-Electric Safety Lock Release,

Packing and Shipping Examples
2 post lift and 4 post lift are steel frame packed while scissor lifts are packing in ply-wood boxes with steel outlines. The control console are packed in ply-wood boxes.Strong packing guarantees the delivery in perfect condition into your hand.
on-7802le MID Rise Scissor Lifts-Electric Safety Lock Release,


Standardization is in Our Heart while Certifications are for your Eyes.
on-7802le MID Rise Scissor Lifts-Electric Safety Lock Release,

Getting Closer to You
on-7802le MID Rise Scissor Lifts-Electric Safety Lock Release,

FAQ1. Why should I choose EOUNICE car lift?
  1. 20 years of techniques research+TUV, CE, ISO9001, CCPC certifications
  2. 60,000m² lift production plant
  3. Professional cost-effective 50+ automatic machines & production lines
  4. Top quality raw materials from the finest plants
  5. Competitive prices with higher quality
  6. Own factory with stable supply and target for long term cooperation
  7. Treat n respect customer as good friends, no matter where they come from.

2. How safe are EOUNICE post car lift?
EOUNICE car lifts have been tested and CE certified for safety . They also meet the American and Australian Standard.

3. Are EOUNICE car lifts designed for commercial use?
All of our lifts can be used in commercial applications without any problems.

4. Do you offer any custom designs?
Sure, EOUNICE provides OEM/ODM services. We can build the molds and fixtures and produce according to your samples or technical drawings.

5. How about your delivery time?
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


6.Does my lift come with the necessary anchor bolts and/or hardware to mount it to the floor?
All EOUNICE lifts are shipped with the necessary anchors required for mounting the unit to your floor.

  7.What is the ceiling height required for a EOUNICE lift?
The required ceiling height depends on the lift model, as well as the intended vehicle. Please refer to the product specification page for each product for further details. Or contact us for advice.

8.Are car lifts available in different voltages?
Other (unlisted) voltages may be available upon request. Voltage options vary between models.


9.Do car lifts require maintenance?
A simple monthly checklist is perhaps the most you'll do on a regular basis, aside from common-sense visual inspections you'll do every time you lift and lower your vehicles. Cables need to be maintained, as do hydraulic systems.
