High Quality P4 Display Screen Outdoor LED Modules for Advertising

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：4mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：300W , m²

=== Base Info ===

• Model NO.：OM-P4S
• Pixel Density：62500 Dots,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Service Solution：Rear Service
• IP Rate：IP65
• Installation：Back Bolted Hanging
• Brightness：>6000nits
• Refresh Rate：>1920Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• LED Lamps：Epistar
• Driver IC：Mbi
• System：Nova
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：320x160mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

=== Description ===

Part 3: Material Quality Level.

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Part 4: Technical Specification.

Item

OM P4 320x160mm Full Color Outdoor LED Display Module

Model Number

OM-P4S

Pixel Pitch

4mm

Pixel Density

62500 pixels/M2

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar, SMD

Module Size

320x160mm

Module Resolution

80*40 pixels

Min.Viewing Distance

4 m

Brightness

>6000nits

Viewing Angle

≤140°

Average Power Consumption

300 W/M2

Scan Mode

1/8 Scan

Protection Level

IP65/IP54

Cabinet Size

960x960mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

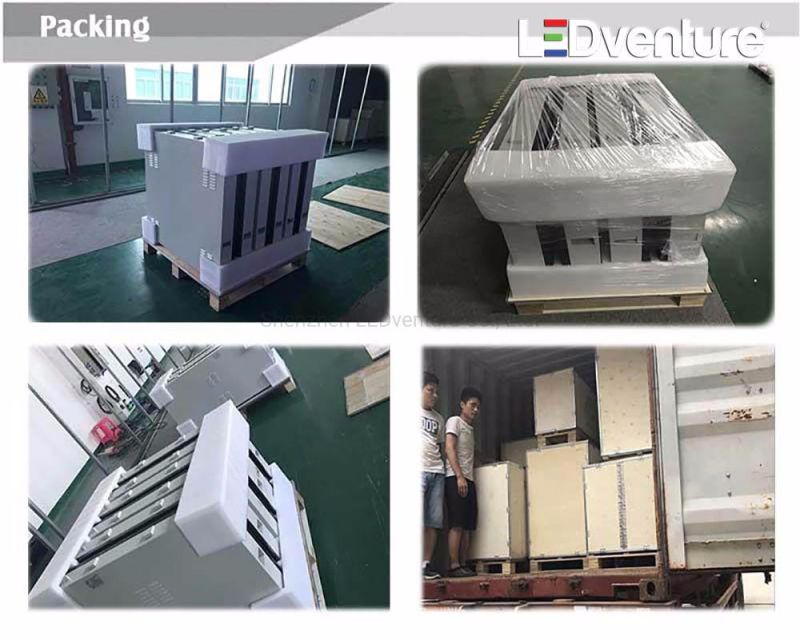

Part 6: Packing information by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
