Fast Installation of Europe Standard Quality Auto Painting Oven Used Car Paint Spray Booth

• After-sales Service：on Line Service
• Warranty：1 Year
• Type：Painting Spray Booth
• Certification：CCC, CE, CSA, GS
• Substrate：Steel
• Brand：Guangli

=== Base Info ===

• Model NO.：GL
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：30000
• Lighting System：Upper Lights + Side Ligts
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Heating System：Riello Brand Diesel Burner,Gas Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

=== Description ===

Basic Info.

Model NO. GL Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Lighting System Upper Lights + Side Ligts Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Heating System Riello Brand Diesel Burner/Gas Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

Fast installation of Europe Standard Quality Auto Painting Oven Used Car Paint Spray Booth

Description
--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement :steel strucutre,3 rows of vein board and 2 rows of grids,full grids as optional.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Ramp:2 pcs of vein board.
--One unit of 7.5kw intake fan and one unit of 5.5kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner.
--Roof filter:4 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 1 pc of outlet filter.
--Upper light :10sets,4*40W per set. Side light:8stes,2*40w.
--Control box:components is import,overload,overheat,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying.
--Environmental filter:either M style or drawer style active carbon equipment can be adopted.

Model	GL2000-A1
External size (m)(LxWxH)	7.0x5.6x3.5
Internal size (m)(LxWxH)	6.9x3.9x2.7
Entrance width(m)	3.0
Entrance height(m)	2.66
Fan capacity( m 3 /h )	30000
Air velocity (m/s)	0.3-0.5
Drying Temperature(ºC)	20-80
Oil consumption (L/unit)	6-8
Power (kw)	25
Suitable Automobile Type	Car

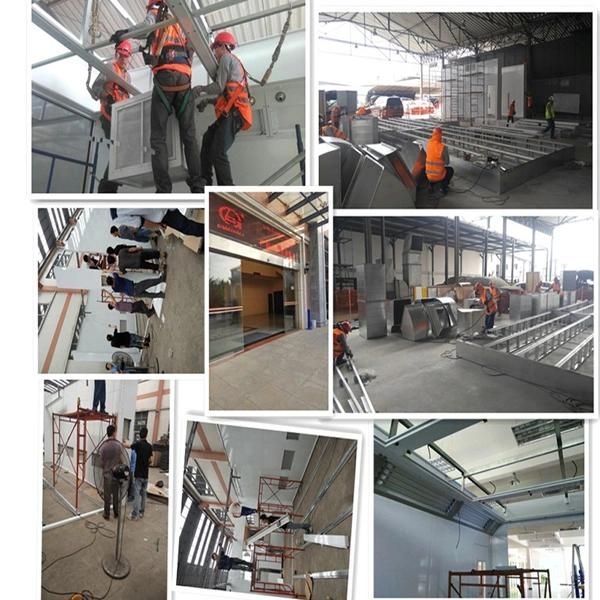

Guangli Spray Booth Show





Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.
7.Customization is available.

Factory Show
GZ GUANGLI EFE CO.,LTD is the first and the largest,professional auto spray booth manufacturer in China, now more than 20 years technical and production experience, having a good reputation among Chinese auto-maintenance enterprise. We have a branch company in USA.
Our products have been approved and authorized by many auto manufacturers,such as Honda,Dongfeng Honda,FAW Toyota,BMW South China.
All our Spray booth,painting booths and car lifts have passed the CE certificate,CCS certificate and our company has passed ISO9001.


Equipment
With the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and craftsmanship.


Exhibitions

Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.
