P10mm Full Color Outdoor Advertising Video LED Display

Danyang Yun Kai Metal Products / 2022-06-27

P10mm Full Color Outdoor Advertising Video LED Display

  • Tube Chip Color:Full Color
  • IP Rating:IP65
  • Pixel Pitch:10mm
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display
  • Average Power Consumption:260W,Sqm

=== Base Info ===

  • Model NO.:10mm
  • Pixel Density:10000dots,Sqm
  • Scanning Mode:1,4 Scan
  • Display Type:LED Video Display
  • Application:Stage Performance
  • Certification:CE, RoHS, UL, CCC
  • Module Size:320X160mm
  • Module Resolution:32X16dots
  • Cabinet Size:640X640mm
  • Cabinet Resolution:64X64dots
  • Screen Brightness:5500nits
  • Refresh Rate:1920Hz-3840Hz
  • Protection Grade:IP65
  • Controller:Linsn , Nova
  • Service:Rear Maintenance
  • Compliance:Ce
  • Transport Package:Flight Case
  • Specification:640x640mm
  • Trademark:CKGLED
  • Origin:China
  • HS Code:8528591090
  • Production Capacity:6000sqm,Month

=== Description ===

Basic Info.

Model NO. 10mm Pixel Density 10000dots/Sqm Scanning Mode 1/4 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC Module Size 320X160mm Module Resolution 32X16dots Cabinet Size 640X640mm Cabinet Resolution 64X64dots Screen Brightness 5500nits Refresh Rate 1920Hz-3840Hz Protection Grade IP65 Controller Linsn / Nova Service Rear Maintenance Compliance Ce Transport Package Flight Case Specification 640x640mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description


RO SERIES PRODUCT FEATURES:


  IP65 design: good for any outdoor event environment.

·  high screen brightness : 5500nits.

  Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

.    Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

.  High polymer flexible mask, no mosaic phenomenon, better contract ratio.







PRODUCT SPECIFICATIONS:
NO. ParameterSpecification
1 ModelRO10
2 Pixel Pitch(mm)10
3 Pixel Density10000dots/sqm
4 LED TypeSMD3535
5 Viewing Anglehorizontal 140°,Vertical 140°
6 Brightness ≥5500cd/sqm
7 Drive Method1/4 scan
8 Color Depth14bit
9 Refresh Rate(Hz)≥1920
10 Frame Frequency (Hz)≥60
11 Brightness AdjustmentManuel/Auto/Remote control
12 Module Size(mm)320×160×17
13 Module Resolution(dots)32×16
14 Cabinet Size(mm)640×640×80
15 Cabinet Resolution(dots)64*64
16 Cabinet Type and MaterialDie-casting Aluminum
17 Cabinet Weight(Kg)≤12
18 Voltage(V)AC 100~240V
19 Avg. Power Consumption 260W/sqm
20 Max. Power Consumption750W/sqm
21 Service AccessRear Access
22 IP GradeFront: IP65  /  Rear: IP54
23 Operating Temp/Humidity-30ºC~60ºC, 10~95%RH
24 Storage Temp/Humidity-40ºC~60ºC, 10~95%RH
25 Lifetime(Normal Temp)≥50000H
26 System ControlleLinsn/Novastar
27 Compliant StandardCCC/CE/RoHS

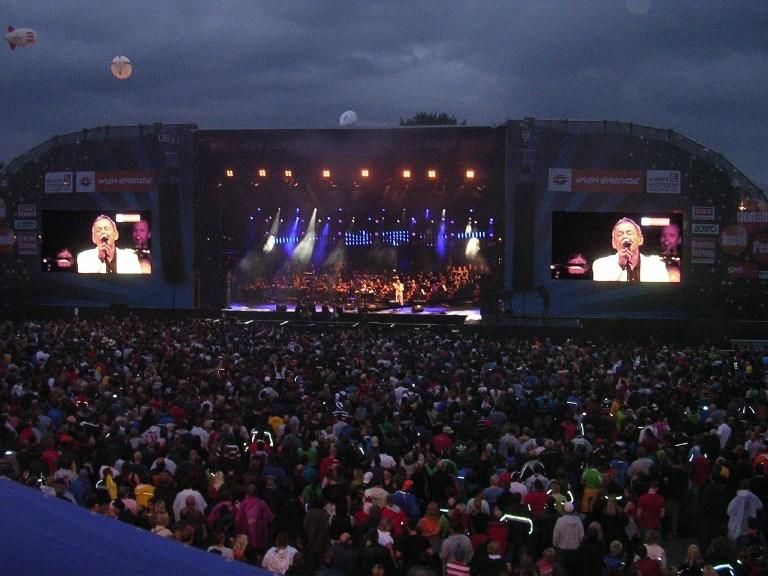

PRODUCT PHOTOS:

P10mm Full Color Outdoor Advertising Video LED Display
P10mm Full Color Outdoor Advertising Video LED Display

P10mm Full Color Outdoor Advertising Video LED DisplayP10mm Full Color Outdoor Advertising Video LED Display
