Swing Drive Gearbox/Slew Drive Gearbox Gfb220 T3 1000

• Application：Industry
• Hardness：Hardened
• Type：Bevel Gear
• Torque：7000-450000n.M
• Replace for：Gfb220 T3 1000
• Ratio：16.3-421.7

=== Base Info ===

• Model NO.：GFB220 T3 1000
• Material：Stainless Steel
• Changes Way：Mixed
• Manufacturing Method：Cast Gear
• Toothed Portion Shape：Spur Gear
• Manipulate Way：Hydraulic Oil
• Transport Package：Plywood Case
• Specification：ISO9001, CE
• Trademark：Bonny
• Origin：Ningbo, China
• HS Code：84122910
• Production Capacity：1500PCS,Month

=== Description ===

Basic Info.

Model NO. GFB220 T3 1000 Material Stainless Steel Changes Way Mixed Manufacturing Method Cast Gear Toothed Portion Shape Spur Gear Manipulate Way Hydraulic Oil Transport Package Plywood Case Specification ISO9001, CE Trademark Bonny Origin Ningbo, China HS Code 84122910 Production Capacity 1500PCS/Month

Product Description

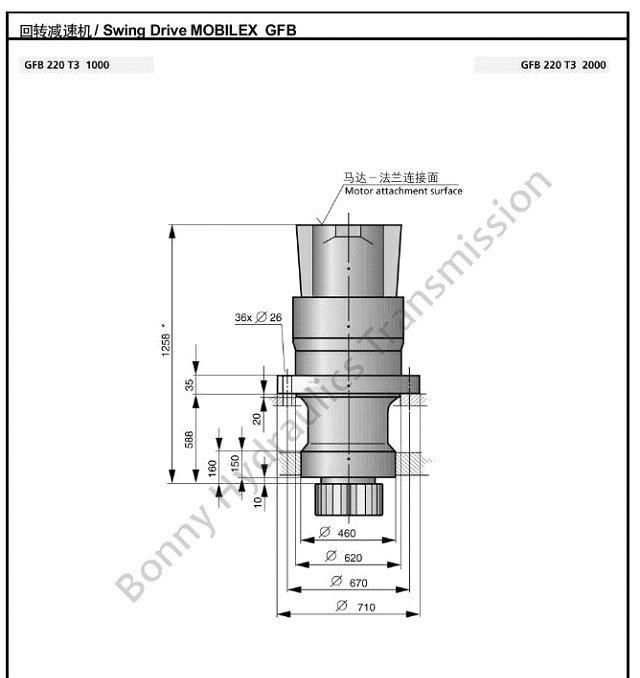

Model: GFB220 T3 1000 Slewing gearbox
Replace for: Rexroth GFB Series, Bonfiglioli 700 T Series, Brevini RPR, SL Series slewing drives
Ratio: 16.3-421.7

Output Torque: 7000-450000N.m



MOBILEX GFB is an ideal driving component for truck crane, crawler crane, ship crane and excavator, and other wheeling equipments. The structure is quite compact, especially suits those space-critical equipment. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.





Features
1) Compact two-, three- or four-stage planetary gearboxes
2) Cageless planetary gear bearing
3) Robust main bearing
4) Optimized seals
5) Integr. multi-disc parking brake
6) Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7) Interchangeable with Rexroth on performance and dimension.
8) More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).
