22206 22207 22208 22209 22210 Cc/W33 Ca/W33 MB/W33 Cck/W33 Spherical Roller Bearing

• Rolling Body：Roller Bearings
• Material：Bearing Steel
• Spherical：Aligning Bearings
• Trademark：CHIK, NSK etc
• Origin：Shandong, China

=== Base Info ===

• Model NO.：22206 22207 22208 22209 22210
• Production Capacity：1000 Ton,Month

=== Description ===

Basic Info.

Model NO. 22206 22207 22208 22209 22210 Production Capacity 1000 Ton/Month

Product Description

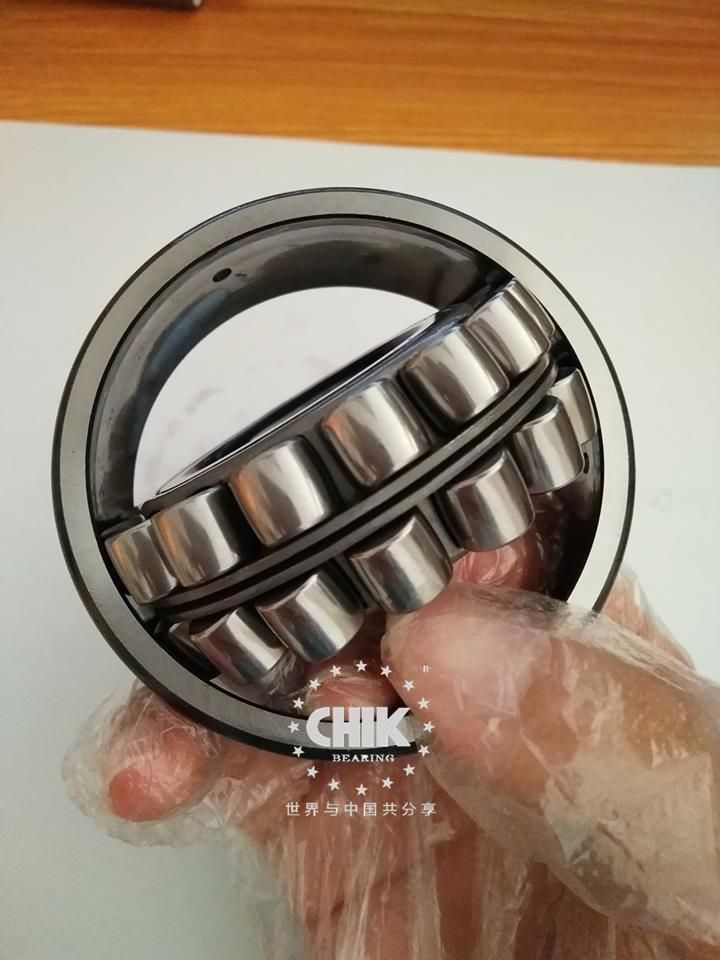

22206 22207 22208 22209 22210 CC/W33 CA/W33 MB/W33 CCK/W33 Spherical Roller Bearing
 RADIAL INTERNAL CLEARANCE Chik spherical roller bearings are produced as standard with normal radial internal clearance and most are also available with a greater C3 clearance. Many bearings can also be supplied with a smaller C2 clearance or the much greater C4 or C5 clearances. Chik spherical roller bearings for vibratory applications are produced as standard with C4 clearance. The clearance limits are in accordance with ISO 5753:1 and are valid for bearings before mounting under zero measuring load. LUBRICATION Chik spherical roller bearings are not sealed and are not greased, they can be lubricated using grease. The outer ring of spherical roller bearings are made with lubrication holes and a groove for feeding lubricant. The outer ring may also be configured with oil holes only depending on fitting, mounting. INNER RING BORE Spherical roller bearings are produced with a cylindrical or a tapered bore. Bearings with tapered bore are mounted directly to a tapered pivot or to a cylindrical pivot using adapter sleeves.










Main Specificationsd D B Dyn. C Stat. C0 Grease Oil 22205 CCW33 25 52 18 35800 36800 8000 10000 0.169 22205 CCKW33 25 52 18 35800 36800 8000 10000 0.17 22205 CAW33 25 52 18 35800 36800 8000 10000 0.174 22205 MBW33 25 52 18 35800 36800 8000 10000 0.178 22206 CCW33 30 62 20 50500 55000 6700 8500 0.26 22206 CCKW33 30 62 20 50500 55000 6700 8500 0.269 22206 CAW33 30 62 20 50500 55000 6700 8500 0.27 22206 MBW33 30 62 20 50500 55000 6700 8500 0.272 22207 CCW33 35 72 23 66500 76000 5300 6700 0.397 22207 CCKW33 35 72 23 66500 76000 5300 6700 0.406 22207 CAW33 35 72 23 66500 76000 5300 6700 0.41 22207 MBW33 35 72 23 66500 76000 5300 6700 0.43 22208 CCW33 40 80 23 78500 90800 5000 6000 0.493 22208 CCKW33 40 80 23 78500 90800 5000 6000 0.506 22208 CAW33 40 80 23 78500 90800 5000 6000 0.52 22208 MBW33 40 80 23 78500 90800 5000 6000 0.54 22209 CCW33 45 85 23 82000 97500 4500 5600 0.551 22209 CAW33 45 85 23 82000 97500 4500 5600 0.564 22209 CCKW33 45 85 23 82000 97500 4500 5600 0.571 22209 MBW33 45 85 23 82000 97500 4500 5600 0.58 22210 CCW33 50 90 23 84500 105000 4000 5000 0.61 22210 CCKW33 50 90 23 84500 105000 4000 5000 0.612 22210 CAW33 50 90 23 84500 105000 4000 5000 0.618 22210 MBW33 50 90 23 84500 105000 4000 5000 0.62 22211 CCW33 55 100 25 102000 125000 3600 4500 0.82 22211 CAW33 55 100 25 102000 125000 3600 4500 0.84 22211 CCKW33 55 100 25 102000 125000 3600 4500 0.84 22211 MBW33 55 100 25 102000 125000 3600 4500 0.852 22212 CCW33 60 110 28 122000 155000 3200 4000 1.088 22212 CAW33 60 110 28 122000 155000 3200 4000 1.114 22212 CCKW33 60 110 28 122000 155000 3200 4000 1.1222212 MBW33 60 110 28 122000 155000 3200 4000 1.126 22213 CCW33 65 120 31 150000 195000 2800 3600 1.5 22213 CCKW33 65 120 31 150000 195000 2800 3600 1.526 22213 CAW33 65 120 31 150000 195000 2800 3600 1.55 22214 CCW33 70 125 31 158000 205000 2600 3400 1.552 22213 MBW33 65 120 31 150000 195000 2800 3600 1.56 22215 CCW33 75 130 31 162000 215000 2400 3200 1.58 22214 CAW33 70 125 31 158000 205000 2600 3400 1.584 22214 CCKW33 70 125 31 158000 205000 2600 3400 1.591 22214 MBW33 70 125 31 158000 205000 2600 3400 1.602 22215 CAW33 75 130 31 162000 215000 2400 3200 1.61 22215 CCKW33 75 130 31 162000 215000 2400 3200 1.697 22215 MBW33 75 130 31 162000 215000 2400 3200 1.704 22216 CCW33 80 140 33 175000 238000 2200 3000 2 22216 CCKW33 80 140 33 175000 238000 2200 3000 2.05 22216 CAW33 80 140 33 175000 238000 2200 3000 2.058 22216 MBW33 80 140 33 175000 238000 2200 3000 2.12 22217 CCW33 85 150 36 210000 278000 2000 2800 2.451 22217 CAW33 85 150 36 210000 278000 2000 2800 2.47 22217 CCKW33 85 150 36 210000 278000 2000 2800 2.647 22217 MBW33 85 150 36 210000 278000 2000 2800 2.662 22218 CCW33 90 160 40 240000 322000 1900 2600 3.236 22218 CAW33 90 160 40 240000 322000 1900 2600 3.344 22218 CCKW33 90 160 40 240000 322000 1900 2600 3.364 22218 MBW33 90 160 40 240000 322000 1900 2600 3.482 22219 CCW33 95 170 43 278000 380000 1900 2600 3.89 22219 CCKW33 95 170 43 278000 380000 1900 2600 3.947 22219 CAW33 95 170 43 278000 380000 1900 2600 4 22219 MBW33 95 170 43 278000 380000 1900 2600 4.1 22220 CCW33 100 180 46 310000 425000 1800 2400 4.746 22220 CCKW33 100 180 46 310000 425000 1800 2400 4.888 22220 CAW33 100 180 46 310000 425000 1800 2400 4.894 22220 MBW33 100 180 46 310000 425000 1800 2400 4.988 22222 CCW33 110 200 53 405000 575000 1700 2200 6.994 22222 CCKW33 110 200 53 405000 575000 1700 2200 7 22222 CAW33 110 200 53 405000 575000 1700 2200 7.1 22222 MBW33 110 200 53 405000 575000 1700 2200 7.136 22224 CCKW33 120 215 58 470000 678000 1600 2000 8.48 22224 CCW33 120 215 58 470000 678000 1600 2000 8.63 22224 CAW33 120 215 58 470000 678000 1600 2000 8.75222224 MBW33 120 215 58 470000 678000 1600 2000 8.842 22226 CAW33 130 230 64 550000 810000 1400 1800 10.4 22226 CCKW33 130 230 64 550000 810000 1400 1800 10.886 22226 MBW33 130 230 64 550000 810000 1400 1800 11 22228 CCKW33 140 250 68 628000 930000 1300 1700 13.676 22228 CAW33 140 250 68 628000 930000 1300 1700 13.994 22228 MBW33 140 250 68 628000 930000 1300 1700 14 22230 CAW33 150 270 73 738000 1100000 1200 1600 17.27 22230 CCKW33 150 270 73 738000 1100000 1200 1600 17.358 22230 MBW33 150 270 73 738000 1100000 1200 1600 17.72 22232 CCKW33 160 290 80 825000 1250000 1000 1400 21.924 22232 MBW33 160 290 80 825000 1250000 1000 1400 22 22234 CCKW33 170 310 86 720000 1300000 850 1100 27 22236 CCKW33 180 320 86 735000 1370000 800 1000 27 22234 MBW33 170 310 86 720000 1300000 850 1100 28 22236 MBW33 180 320 86 735000 1370000 800 1000 28 22238 CCKW33 190 340 92 818000 1510000 750 950 36.8 22238 MBW33 190 340 92 818000 1510000 750 950 37 22240 CCKW33 200 360 98 920000 1740000 700 900 42.5 22240 MBW33 200 360 98 920000 1740000 700 900 43 22244 CCKW33 220 400 108 1170000 2220000 630 800 58 22244 MBW33 220 400 108 1170000 2220000 630 800 59 22248 MBW33 240 440 120 1900000 2980000 890 1180 83 22252 MBW33 260 480 130 2270000 3470000 820 1040 103 22256 MBW33 280 500 130 1690000 3380000 500 630 109
