Inch Rod Ends Spherical Plain Bearing/ Ball Joint Spherical Plain Bearing

• Structure：Rod End
• Material：Stainless Steel

=== Base Info ===

• Load Direction：Radial Spherical Plain Bearing
• Add Lubricant：Self-lubricating
• Outer Structure：Whole Outer Ring
• Rod End：Rod End
• Thickness：25mm
• Model：GE
• Application：Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery, Automation Equipment, Automobile Shock Absorber, Water Conservancy Machinery
• Weight：1.05kg
• Material Standard：AISI52100, AISI440c
• Transport Package：Polybag-Box-Carton
• Specification：Spherical Plain Bearing
• Origin：Shandong, China
• HS Code：8482101000
• Production Capacity：10000 Units, Month

=== Description ===
Basic InfoModel NO.: GE...E(ES) Series
Rod End: General
Thickness:44mm
Model:GE
Application: Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery, Automation Equipment, Automobile Shock Absorber, Water Conservancy Machinery
Precision:ABEC1(P0),ABEC3( P6),ABEC5( P5),
Vibration Level:V4, V3, V2,
Shield / Closure:Open,RS,2RS,Z,Zz
Material Standard: AISI52100, AISI440c
Weight: 1.05kg
Usage: Electric Motor, Auto Mobiles, Appliances, Caster
Radial Play: C0, C2, C3, C4
Noise Level: Z4, Z3, Z2, Z1
Trademark: OEM
Transport Package: Carton or Wooden Box Packaging
Specification: 60*105*63mm
Origin: Shangdong China
HS Code: 8482101000




Products introduction
I. Product Description

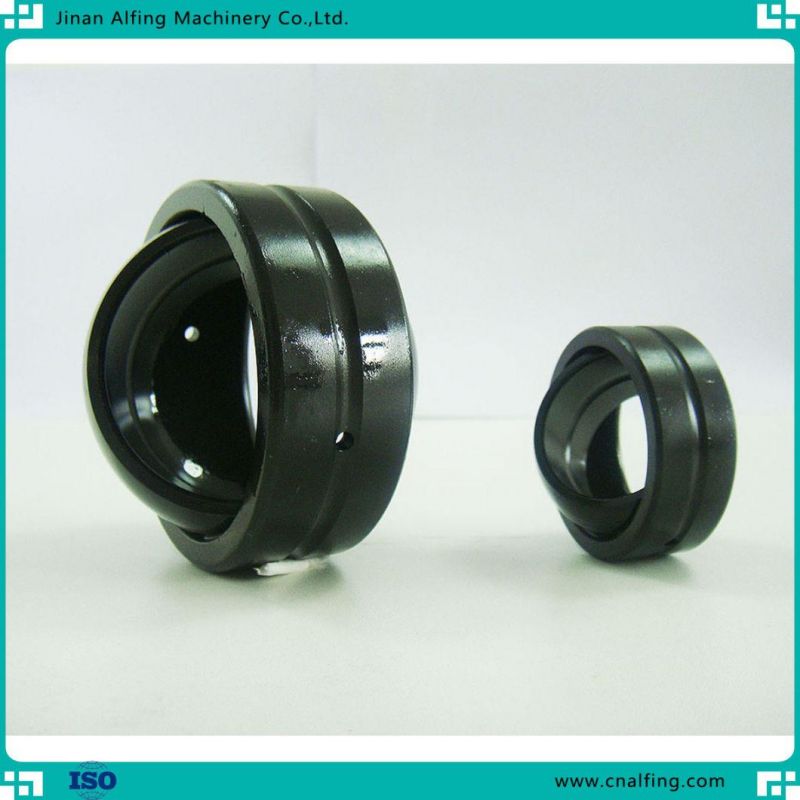

1. Spherical plain bearings have an inner ring with a spheral convex outside surface and an outer ring with a correspondingly spheral outer concave inside surface. The design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be permitted or relatively slow sliding speeds.
Design and application features:
2. Outer ring is carbon chromium steel, fractured, hardened and phosphated. Sliding surface is treated with MoS2. Inner ring is carbon chromium steel, hardened and phosphated. Sliding surface is treated with MoS2. It has characteristics of wear-resistance, wear-corrosion and self-aligning, suitable for heavy radial load and any direction lower axial load. GE…ES series can be lubricated via annular grooves and lubrication holes in both rings. GE…ES-2RS series have two seals on both sides, for bearing arrangements where separate seals do not provide adequate protection.
