3D Four Wheel Positioning Fixture

• Type：3D Wheel Alignment
• Certification：CE, ISO
• Communication Mode：Infrared Wireless Communication
• Structure：Electronic
• Standard：Standard
• Condition：New

=== Base Info ===

• Model NO.：AG400
• Application：Tire Shop,Body Shop, 4s Workshop
• Language：Global Multi-Language
• Beam：Automatic Lifting
• Software：Independent
• Function：Wheel Angles Adjust
• Warranty：18 Months
• Transport Package：Plywood Box Package
• Specification：3D
• Trademark：Autocare
• Origin：China
• HS Code：90318090
• Production Capacity：150 Sets,Month

=== Description ===
Items

Front wheel measurement precision

Front wheel measurement range

Rear wheel measurement precision

Rear wheel measurement range

Toe

±0.02

±20°

±0.02

±20°

Camber

±0.02

±15°

±0.02

±15°

S.A.I

±0.02

±26°

x

x

Caster

±0.02

±26°

x

x

Thrust Angle

x

x

±0.02

±5°

Feature:
1. Chinese Windows OS, operation process can be easily guided by "Next step" instruction.
2. Exceed 20,000 database around the world and with a lifetime update service.
3. Repeat measurement accuracy is ±0.03,which be a world's leading level.
4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base,Wheel rolling redius.
5. Android cell phone and laptop are supported to show the vehicle measurement data, more convenient for operator.
6. Humanized software design, animation video can be used to help technician more quickly complete the operation.
7. Ultra-low chassis and refit vehicle-Volks Wagen and Audi, XLWB and with ESP function vehicle are also can be measured.
8. Secondary jack-up function, which can be used to more conveniently help technician adjust Camber.

Standard configuration:
1 Options: Application software could be installed in the Table PC with Android system. Clients can long-distance operate the wheel alignment measurement through Bluetooth.
2 Packing assistant camera function: independent web camera can guide the vehicle pack in the specific location.
3 Apply high strength plastic target, which is lighter, thinner and stronger.
4 Fast installation, suitable for all rims between 12"-23" . Double chuck, which can install both on iron and aluminum wheel hub.
5 million high definition camera: it can also assure accurate alignment measurement when target plates get smaller.Intelligent LED navigation system: the operator doesn't need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.
6 Double display LCDs can make sure the operator clear recognize the data on the screen in any angle and condition during operation, thus improving the working efficiency.
7 According to weight of camera beam, the lifting pillar equipped with two pieces of metal counter weight, which can efficiently lower the motor working pressure, thus prolonging the working life. Equipped with low-speed motor aluminum alloy pole, which can achieve stable and unshakable lifting speed. Microcomputer control box support both hand and remote control operation.It can automatically track vehicle's packing position according to the lift height during operation. Adjusting the height of camera beam to the best shooting position to make sure accurate measurement.

Software Feature





User Instance

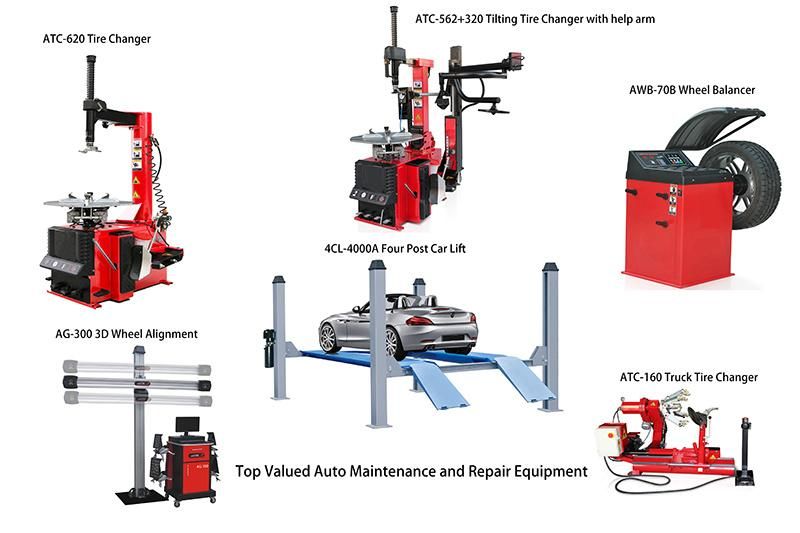

Related Product:

FAQ:

1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own sales team, possess the experience of auto repair field for 6 years, More skillful to offer you a project plan according to clients' request.

2.Q:Where is your company located? How can I visit there?
A:Our company is located in Yantai.All clients, from home and abroad, are warmly welcomed to visit us. You can visit us by air to the YANTAI port. Then we will pick you up there.

3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material sources,
our products are excellent in performance and craftsmanship, got a good feedbacks by customers from more than 96 countries.

4.Q:Can we customize our product?
A:Yes,you can. Customized material and standard are acceptable. We can provide different
standards according to your market and favor.

5.Q:What's the MOQ for each items?
A:We accept 1 set of each machine once time.

6.Q:What's the delivery time?
A:When order confirmed, the machine with our standard configurations, it's 7 workdays.

-----------------------------------------------------------------------------------------------------------------------------
