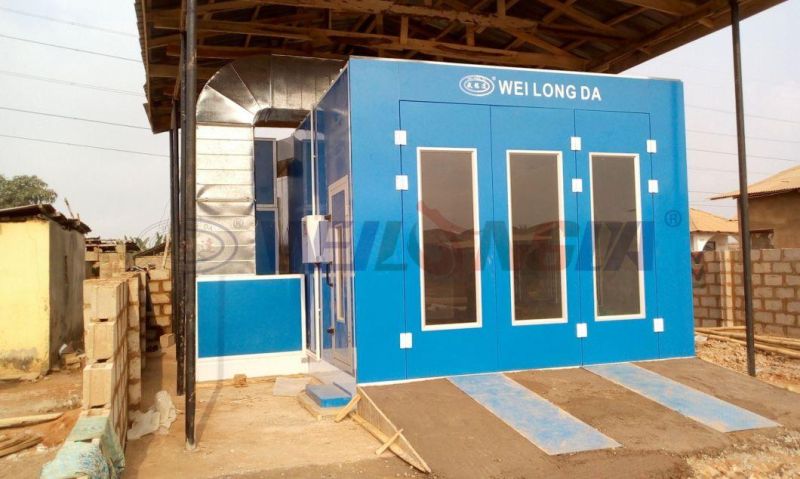

Economic Paint Curing Booth Oven with Mirco Computer Control Box Wld6100

• Type：Spray Booth
• Certification：CE
• Substrate：EPS
• Brand：Weilongda
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel

=== Base Info ===

• Model NO.：WLD6100
• Paint Mist Treatment：Dry-type
• Condition：New
• External Size：7000X5430X3250mm
• Internal Size：6900X3900X2600mm
• Voltage：3phase 380V,240V,415V 50Hz,60Hz
• Power：12kw
• Air Flow：24000m3,H.
• Air Speed：0.3-0.5m,S.
• Transport Package：Export Standard
• Specification：CE
• Trademark：WeiLongDa
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：5000PCS,Year

=== Description ===
xternal Size:(mm)     7000x5430x3300                          Front Door:(mm)
                          Powder Coated Frame                    3000(w)x2600(h)Internal Size:(mm)6900x3900x2600                          Total Power:(kw)                              10Cabin System  WallboardFire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, EPS foam Density is 14kg/m³ ; The colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulation performance. Four colors for your choice, including blue, red, orange and white. High quality galvanized steel roof panel  Basement300mm high powder coated galvanized steel sheet and square steel pipe construction.3 row of checked plate and 2 row of grids ,anti-rust and strong. The bearing capacity of driving grids up to 1000 kg per wheel; Basement frame is assembly formed by antirust steel square tube, the overall performance is good and strong. Two powder coated ramps.    Door3 pieces of  front doors with powder coated frame. Size: 3000(w)*2600(h). 1 piece of emergency door.     Air Circulation System          Intake Fan2x4kw intake fan. Manual damper. Siemens technology production, large air volume and low noise. Air flow: 24,000m3/h. The wire core of our fans is full cooper so our fans are very durable.       Air PipeMade of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow.         FilteringMultilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98%.  Heating     System               BurnerBALTUR BT14 diesel burner,140000Kcal/h. The heating time 8-10min(20-60.C). Max. temperature at 80.C. Fuel consumption is 4-5kg/vehicle. Heat ExchangerTwo layers. Made of stainless steel. The heat exchange rate can reach 85%. Two layers to make our heating system safer and get higher heat exchange rate. What is more,we make two wings to make the temperature rise more quickly and save energy.         Air make up            cabinetThe surface plate is powder coated galvanized plate, antirust, strong and beautiful;The frame is treated by hot-dip, antirust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity.    Oil tank supportTank carefully made of high quality steel, the powder coated treatment, beautiful and durable.        Fume pipeFume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows.      LED    Lighting    System         Light tubeCeiling light has 24 pieces of 16w LED lamps. 800 Lux.LED lamps are more bright and durable. the grade of lighting box's dustproof and waterproof reach IP54 grade.         Light boxWelded galvanized plate, powder coated treatment, surface brightness, color uniformity.  Filtering     System                Pre-filterGrade G2 plate type fiber glass filter; Dual filtering structure. The
Pre-filter can capture granules larger than 10μm.     Ceiling filterEU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%.         Floor filterMultilayer glass Fiber. The air cleanliness in the working environment can reach 98%.       Ceiling filter          support Made of tube steel frame, thickness of 1.2mm, epoxy powder coating, antirust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton.      Pollution Control        SystemMulti-layer fiberglass filter to filter paint and dust emission.  Control     system    Control panel Microcomputer control system          Function Painting, constant temperature painting , drying, lighting, painting time and
drying time setting;emergency stop switch, failure indication etc, especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe.
