Stainless Steel Bearing Units Ssuct204 Ssuct205 Ssuct206 Ssuct207 Ssuct208

• Aligning：Aligning Bearing
• Separated：Separated
• Feature：Vacuum, Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed
• Rows Number：Single
• Raceway：Deep Groove Raceway
• Material：Stainless Steel

=== Base Info ===

• Model NO.：SSUCT204
• Bearing Block Model：T
• Quality：P0 or ABEC-1
• Company Area：100, 000sqm(Plant 65000+ Sqm)
• Housing Material：Cast Iron(Ht200)
• Bearing Seal Type：Double Seal, F Seal, Triple Seal
• Transport Package：Plastic Bag + Single Color Box+ Carton + Pallet
• Specification：mm and inch size
• Trademark：FKD, HHB, FE
• Origin：Xingtai, Hebei
• HS Code：84832000
• Production Capacity：600, 000PCS Per Mouth

=== Description ===

Basic Info.

Model NO. SSUCT204 Bearing Block Model T Quality P0 or ABEC-1 Company Area 100, 000sqm(Plant 65000+ Sqm) Housing Material Cast Iron(Ht200) Bearing Seal Type Double Seal, F Seal, Triple Seal Transport Package Plastic Bag + Single Color Box+ Carton + Pallet Specification mm and inch size Trademark FKD, HHB, FE Origin Xingtai, Hebei HS Code 84832000 Production Capacity 600, 000PCS Per Mouth

Product Description

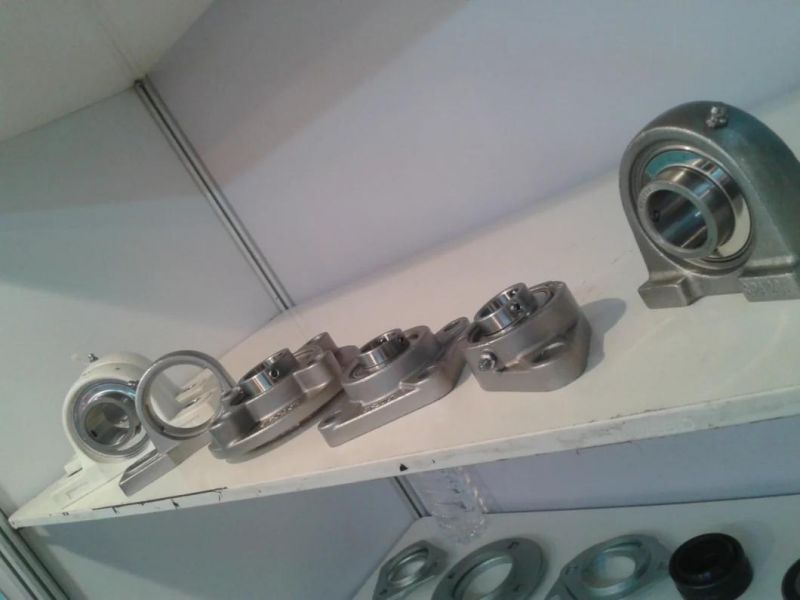

Product name: Pillow Blocks

Product item: SSUCT 200

Product brand: FKD, FE, HHB

Product unit No. SUCT/201--213

Product packing: Plastic bag + individual color box + carton + pallet

Product material: Stainless Steel for bearings, Stainless Steel for housings

Pillow Block Bearings are composed of a single row deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support.

Pillow Blocks are for mechanical equipment, like agricaltural, metallurgical, textile and printing machinery.







Unit NO.	Dimensions(mm/in.)	Bearing NO.	Housing NO.	Weight(kg)
d	o	g	p	q	s	b	k	e	a	w	j	l	h	t	B	n
SS-UCT201	12	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	SS-UC201	T201	0.77
SS-UCT 201-8	1/2	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC201-8	T201	0.76
SS-UCT202	15	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	SS-UC202	T202	0.76
SS-UCT 202-9	9/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC202-9	T202	0.76
SS-UCT 202-10	5/8	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC202-10	T202	0.76
SS-UCT203	17	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	SS-UC203	T203	0.75
SS-UCT 203-11	11/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC203-11	T203	0.74
SS-UCT204	20	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	SS-UC204	T204	0.73
SS-UCT 204-12	3/4	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC204-12	T204	0.73
SS-UCT205	25	16	10	51	32	19	51	12	76	89	97	32	24	62	48	34.1	14.3	SS-UC205	T205	0.8
SS-UCT 205-13	13/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	SS-UC205-13	T205	0.84
SS-UCT 205-14	7/8	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	SS-UC205-14	T205	0.83
SS-UCT 205-15	15/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	SS-UC205-15	T205	0.81
SS-UCT 205-16	1	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	SS-UC205-16	T205	0.8
SS-UCT206	30	16	10	56	37	22	57	12	89	102	113	37	28	70	53	38.1	15.9	SS-UC206	T206	1.22
SS-UCT 206-17	1-1/16	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5	0.626	SS-UC206-17	T206	1.23
SS-UCT 206-18	1-1/8	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5	0.626	SS-UC206-18	T206	1.24
SS-UCT 206-19	1-3/16	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5	0.626	SS-UC206-19	T206	1.22
SS-UCT 206-20	1-1/4	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5	0.626	SS-UC206-20	T206	1.21
SS-UCT207	35	16	13	64	37	22	64	12	89	102	129	37	30	78	59.5	42.9	17.5	SS-UC207	T207	1.57

Unit NO.	Dimensions(mm/in.)	Bearing NO.	Housing NO.	Weight(kg)
d	o	g	p	q	s	b	k	e	a	w	j	l	h	t	B	n
SS-UCT 207-20	1-1/4	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.689	0.689	SS-UC207-20	T207	1.63
SS-UCT 207-21	1-5/16	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.689	0.689	SS-UC207-21	T207	1.6
SS-UCT 207-22	1-3/8	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.689	0.689	SS-UC207-22	T207	1.57
SS-UCT 207-23	1-7/16	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.689	0.689	SS-UC207-23	T207	1.54
SS-UCT208	40	19	16	83	49	29	83	16	102	114	144	49	33	89	69	49.2	19	SS-UC208	T208	2.31
SS-UCT 208-24	1-1/2	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-19/64	3-1/2	2-23/32	1.937	0.748	SS-UC208-24	T208	2.35
SS-UCT 208-25	1-9/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-19/64	3-1/2	2-23/32	1.937	0.748	SS-UC208-25	T208	2.32
SS-UCT209	45	19	16	83	49	29	83	16	102	117	144	49	35	87	69	49.2	19	SS-UC209	T209	2.34
SS-UCT 209-26	1-5/8	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2-23/32	1.937	0.748	SS-UC209-26	T209	2.44
SS-UCT 209-27	1-11/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2-23/32	1.937	0.748	SS-UC209-27	T209	2.4
SS-UCT 209-28	1-3/4	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2-23/32	1.937	0.748	SS-UC209-28	T209	2.36
SS-UCT210	50	19	16	83	49	29	86	16	102	117	149	49	37	90	74.5	51.6	19	SS-UC210	T210	2.47
SS-UCT 210-29	1-13/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	SS-UC210-29	T210	2.59
SS-UCT 210-30	1-7/8	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	SS-UC210-30	T210	2.54
SS-UCT 210-31	1-15/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	SS-UC210-31	T210	2.49
SS-UCT 210-32	2	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	SS-UC210-32	T210	2.45
SS-UCT211	55	25	19	102	64	35	95	22	130	146	171	64	38	106	76	55.6	22.2	SS-UC211	T211	3.74
SS-UCT 211-32	2	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.189	0.874	SS-UC211-32	T211	3.89
SS-UCT 211-33	2-1/16	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.189	0.874	SS-UC211-33	T211	3.83
SS-UCT 211-34	2-1/8	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.189	0.874	SS-UC211-34	T211	3.79
