Kensun Ultra Thin Outdoor Waterproof IP65 Wall Mounted Front Access Open HD P4 Outdoor LED Display Screen

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：4mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：350W , m²

=== Base Info ===

• Model NO.：KS-OSF-P4
• Pixel Density：62500 DOT,Sqm
• Scanning Mode：1,10 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS
• Product Name：Front Open P4 Outdoor LED Display Screen
• Scan Mode：1,10 Scan
• Brightness：5000 Nit
• Module Size：320*160mm
• Module Resolution：80*40
• Cabinet Material：Waterproof Iron Front Open Cabinet
• Transport Package：Wooden Case
• Specification：320*160mm
• Trademark：KS
• Origin：China
• HS Code：9405600000
• Production Capacity：100000sqm,Year

=== Description ===
Light ChipTypeSMD1921Chip parametersRed λd:(620-625nm) IV:(800-960mcd)Color1R1G1BChip parametersGreen λd:(520-525nm) IV:(1350-1650mcd)BrandEpisterChip parametersBlue λd:(470-475nm) IV:(330-400mcd) LED ModulePixel Pixel4 mmModule Size320 mmWX160 mmHModule Resolution80×40=3200(Dots)Module Weight0.4kg LED Display CabinetPixel Density62500 Dots/m2Frame Frequencyno less than 60 frame/secCabinet Resolution160×80=12800 (Dots) Input VoltageAC110-220V±10%,50/60HzCabinet Dimension(W*H*D)960x 1920x 120mmOutput VoltageDC-5V,40A/60A/80AModule Quanty /Cabinet36pcs = 3(w) x 12(h)Grey Scale Levels16bitCabinets MaterialIron Front Open CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight60 kgBrightness Adjustment256 color levelsBrightness≥5000 nitsMTBF( mean time between failures)5000 hoursViewing AngleHorizontal 140°, Vertical 140°Life-span100,000 hoursNearest Viewing Distance4 meterProtection Level(front/back)IP65Power Consumption (Max)900 w/m2Malfunction Dot Rateless than 0.0001Power Consumption (Average)300 w/m2Working Temperature-30ºC~50ºCDisplay FunctionText,Graphics,VideoHumidity15%~85%Refresh Rate≥2000HzScan Mode1/10
KENSUN Ultra Thin Outdoor Waterproof IP65 Wall Mounted Front Access Open HD P4 Outdoor LED Display Screen


Product description:

Why choose Outdoor LED Display Screen?

1. Strong visual impact

The large-sized, dynamic, and audio-visual integrated LED advertising can motivate the audience's senses in an all-round way, effectively convey information and guide consumption.

2. Wide coverage

Outdoor Front Open LED displays are generally installed in areas where people are concentrated, such as shopping malls. Through high-frequency communication with user groups, it stimulates consumers' strong desire to buy and improves brand awareness.

Outdoor Front Open LED displays can be played around the clock. It is easier for the audience to see, it can better guide the potential customer crowd, and enable the merchant to achieve better publicity with less cost.

4. Low audience dislike rate

Outdoor Front Open LED displays advertising can broadcast programs to more audiences in a real and timely manner through live broadcast technology. Including special topics, columns, variety shows, animations, radio dramas, TV series, etc., the content is rich, avoiding the contact obstacles caused by the conscious and active avoidance of advertising audiences.

5.Energy saving and environmental protection

The light-emitting element of the LED display is LED. Because the power of a single LED is very low, generally 0.04 ~ 0.08W, the power is several times lower, but the effect is much better. The LED display is made of environmentally friendly materials and is recyclable. It will not cause pollution and damage to the environment due to heavy use.

6. Posting information is simple and convenient

Connect to a computer through a data cable connection or wireless communication, and set up in the computer to publish advertising content, conveniently and quickly.

Module: P4 Outdoor LED Modules 320*160mm

Front Open Cabinet: 1m*1m,3m*2m, 1.5m*1m etc could customized screen size

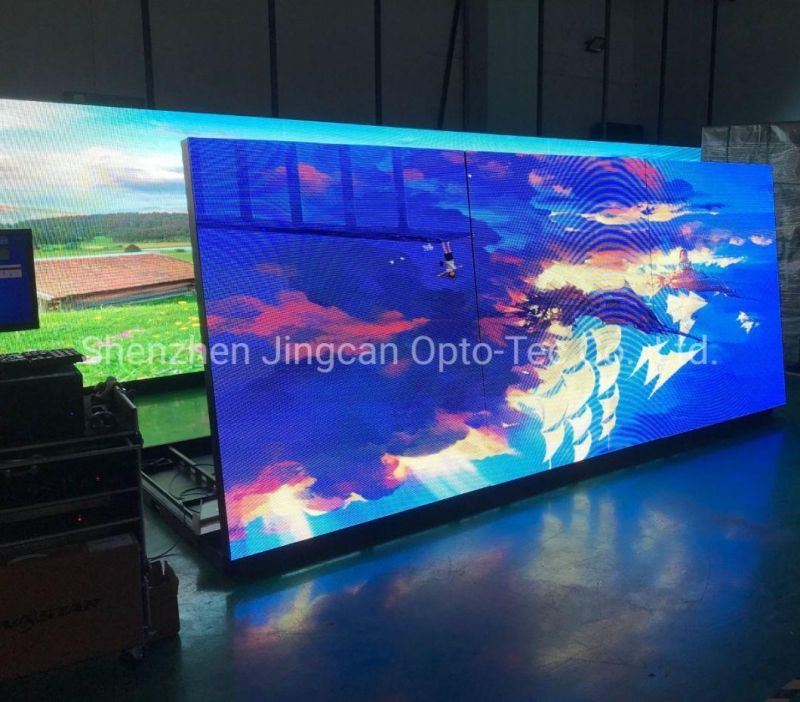

This screen size:2880*1920mm

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
