Torque Arm Mounted Cone Worm Gearbox

• Application：Motor, Machinery, Marine, Agricultural Machinery, Industry
• Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
• Hardness：Hardened Tooth Surface
• Installation：Torque Arm Type
• Step：Single-Step
• Type：Worm and Wormwheel

=== Base Info ===

• Model NO.：CUW180
• Material：Cast Iron
• Manipulate Way：Semi-Automatic Manipulation
• Changes Way：Mixed
• Manufacturing Method：Rolling Gear
• Toothed Portion Shape：Curved Gear
• Transport Package：PLYWOOD CASE
• Specification：100-450
• Trademark：SGR
• Origin：CHINA
• HS Code：8483409000
• Production Capacity：500PCS,MONTH

=== Description ===

Basic Info.

Model NO. CUW180 Material Cast Iron Manipulate Way Semi-Automatic Manipulation Changes Way Mixed Manufacturing Method Rolling Gear Toothed Portion Shape Curved Gear Transport Package PLYWOOD CASE Specification 100-450 Trademark SGR Origin CHINA HS Code 8483409000 Production Capacity 500PCS/MONTH

Product Description

Torque Arm Mounted Cone Worm Gearbox

Product Description

Characteristic of Torque Arm Mounted Cone Worm Gearbox :

In a Worm Gearbox, Worm Reduction Gear Box, Worm Speed Reducer and Gear Motor Manufacturer, three to eleven gear teeth are typically in contact with the worm, depending upon the ratio. The increased number of driven gear teeth that are in contact with the worm significantly increases torque capacity also raises shock load resistance. In addition to increasing the number of driven gear teeth in contact with the worm, Worm Gearbox, Worm Reduction Gear Box, Worm Speed Reducer and Gear Motor Manufacturer also increases the contact area on each gear tooth. The actual areas of instantaneous contact between the worm threads and the driven gear tooth are lines. These lines of contact move across the face of the gear tooth as it progresses through its total time of mesh with the worm. The lines of contact in double-enveloping worm gearing are configured to increase the power transmission capability and reduce the stress on each gear tooth.



Working conditions

Two shafts for 90 ° Intersect, input speed must not be more than 1500 rpm.The working environment temperature should range from  0 ~ 40 ° C, when the environment temperature below 0 ° C or above 40 ° C.Before starting the lubricating oil to corresponding heating and cooling, The worm shafts, reverse operation can be positive.



Advantage:
The advantage of Torque Arm Mounted Cone Worm Gearbox design are dramatic. First, the total load is divided among more individual gear teeth, and the load is further divided where teeth support two lines of contact. This superior load distribution greatly increases load carrying capacity. Second, the improved torque throughput allows a smaller reducer to produce the same amount of torque, resulting in size and weight savings.
Double-enveloping worm gearing can carry loads that would require much larger and heavier cylindrical worm gearing.

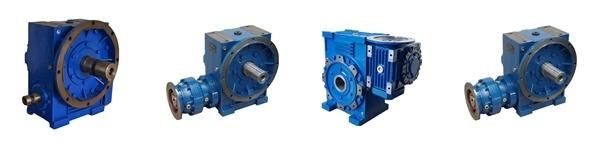

 Double-enveloping worm gearbox figure :

(Click on picture for more information)





Packaging & Shipping

Package :

SGR gearbox use standard wood case per gear motor | gear unit.



Shipping :

According to Customer requirement, we delivery products by different transport, Sea shipping, Air Transportation / Express or Truck transportation etc.

You Appoint, We Service!

Our Services

With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.

Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and effi­ciently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.

These features enable a reliable and safe service life of over 200 000 operational hours.

Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.
